A sleek look, large LCD display, and more DSP with higher functionality.

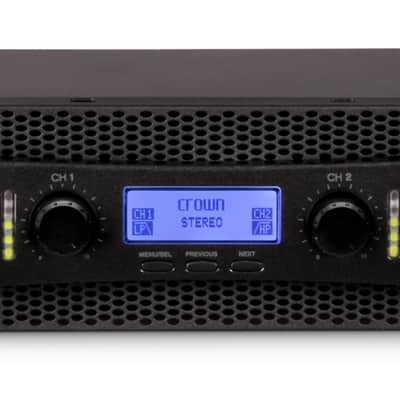

The next generation of XLS power amplifiers got a makeover with a sleek new look, an LCD display that is three times larger, and more DSP with higher capabilities. Like its predecessor, the new XLS1002 is ultra-efficient with Crown’s patented DriveCore technology and can drive 1100W at 4 Ω bridged with tons of headroom guaranteeing a clean, undistorted signal straight to your speakers. The XLS DriveCore 2 assures that you will be heard as you deliver a powerful, pure sound experience for any venue.

Crown XLS1002 Features:

• DriveCore technology provides power and headroom
• 350W per channel at 4 Ω
• 1100W @ 4 Ω bridged
• Large LCD display
• Fully loaded DSP section

Crown XLS1002 Specifications:

• Power Output
  • Channels: 2
  • 2 Ω Dual: 550W
  • 4 Ω Dual: 350W
  • 8 Ω Dual: 215W
  • 4 Ω Bridged: 1100W
  • 8 Ω Bridged: 700W
• Sensitivity: 0.775 Vrms or 1.4 Vrms
• Frequency Response (at 1W, 20 Hz to 20 kHz): +0 dB, -1 dB
• Signal-to-Noise Ratio (rated as dBr to full rated 8 Ω power output; A-weighted): >97 dB
• Total Harmonic Distortion (THD): >0.5%
• Intermodulation Distortion (60 Hz and 7 kHz at 4:1) from full rated output to -30 dB:< 0.3%
• Damping Factor (8 Ω, 10 Hz to 400 Hz): >200
• Crosstalk (below rated 8 Ω power):
  • At 1 kHz: >85 dB
  • At 20 kHz: >55 dB
• Dimensions (W x H x D): 19" x 3.5" x 7.7" (48.3 x 8.9 x 19.6 cm)
• Weight: 8.6 lbs. (3.9 kg)
