AS-1100  GALAXY

 Personal Monitor System

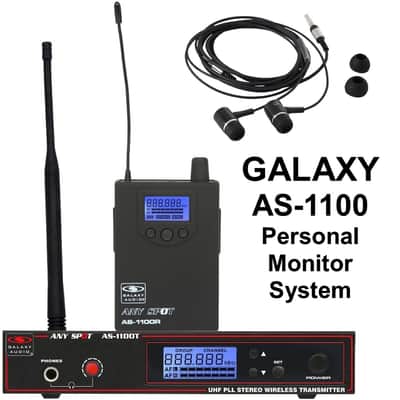

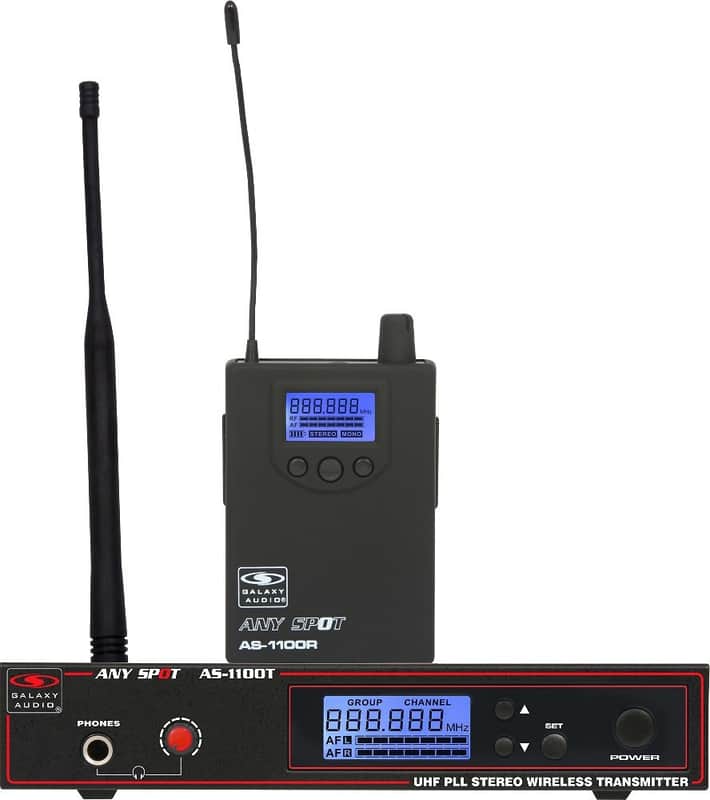

The Galaxy Audio AS-1100 UHF wireless personal monitor's transmitter has stereo XLR/ 1/4" inputs, a headphone output, and an LCD display which shows the channel and input level. The receiver has an LCD display with channel and battery levels, and RF/AF indicator. The AS-1100 is ideal for anyone looking for their first system or to upgrade to the next level of wireless sound systems.

Features:

• Single rack mount for transmitter (included)

• 300 ft. range

• UHF frequency

• 120 selectable channels

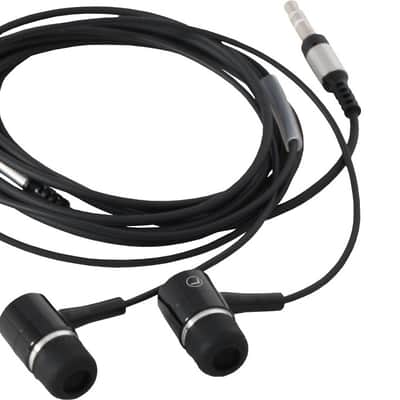

• 1 pair of EB3 ear buds

Specifications:


Overall System:

• Transmitter Output Level:  10dBm

• Operating Range:  Under Typical Conditions 300ft (92m)

• NOTE:  Actual range depends on RF signal absorption, reflection, and interference

• Audio Frequency Response:  +/-3dB 60Hz~16KHz

• Total Harmonic Distortion:  +/-30KHz deviation 1KHz tone <1%

• Dynamic Range:  > 90dB A-weighted

• Operating Temperature Range:  14ºF to 122ºF (-10ºC to +50ºC)

• NOTE:  Battery characteristics may limit this range

Transmitter:

• Max Audio input level:  +6dBV

• Gain Adjustment Range:  40dB

• Input Impedance:  100 kOhms

• Dimensions:  1.5" x 8.3" x 3.78" (38mm H x 212mm W x 96mm D)

• Weight:  21 oz (605 g)

• Power Requirements:  12-18 V dc at 300mA supplied by external power supply

• XLR Input (Impedance balanced):

• Pin 1:  Ground (cable shield)

• Pin 2:  Audio

• Pin 3:  No Audio

Bodypack Receiver:

• Audio Output Level:  100mW

• Sensitivity:  -94dBm for 30dB

• Image Rejection:  > 55dB

• Dimensions:  3.74" x 2.6" x 1" (95mm H x 65mm W x 25mm D)

• Weight:  3.5oz (100 g) without batteries

SALE: $399.99

FREE S&H in continental US (e-mail for international / offshore USA rates)
