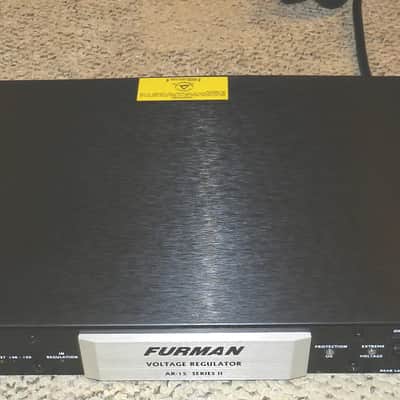

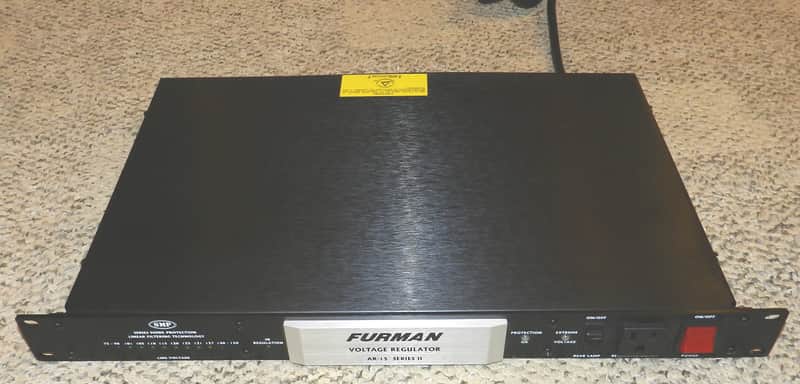

Furman AR-15 Series II Voltage Regulator Power Conditioner
- SMP+ provides the highest level of protection available
- LiFT significantly reduces AC line noise
- E.V.S. protects equipment from dangerous overvoltage conditions
- Zero ground contamination circuitry assures delivery of pure AC
- Delivers a stable 120 +/-5 VAC whenever the input AC line voltage is between 97V and 137V
The Furman AR-15 II Voltage Regulator Power Conditioner delivers a clean, constant flow of power while offering solutions to the many noise problems common to today's AC power supply. The Furman AR-15 II is the only regulator that filters and purifies AC power to reduce line noise and ensure optimum performance.
Features 8 outputs on the back and one on the front. The AR-15 II delivers a stable 120 volts of AC power at 15 amps to protect equipment from problems caused by AC line voltage irregularities such as sags, brownouts, or overvoltages - all of which can cause sensitive electronic equipment to malfunction or sustain damage.
The AR-15 II accepts any input voltage from 97V to 141V and transforms it to a constant 120V (+/- 5V).
Features
- Delivers 120 ±5 VAC whenever the input AC line voltage is between 97V and 141V
- Linear Filtering Technology (LiFT) with zero ground contamination
- Series Multi-Stage Protection Plus (SMP+) with Extreme Voltage Shutdown (EVS)
- Output capacity 15 amps
- Large, low-noise torodial autoformer
- BNC connector on the rear panel allows you to attach any standard 12V goose neck lamp to illuminate the rear of your rack
- 8 outlets on the back panel, one on the front
Specifications
- Spike Protection Modes: Line to neutral, zero ground leakage
- Spike Clamping Voltage: 188 Vpk @ 3,000 amps, 133 VAC RMS
- (tested to UL-1449 6,000 Vpk @ 3,000 amps)
- Response time: 1 nanosecond
- Maximum surge current: 6,500 amps
- Voltmeter Accuracy: ±5V
- In Regulation Ranges: AR-15 II: Provides regulation ±5V in 120V mode from 97 to 141V
- AR-15 IIJ: Provides regulation ±4V in 100V mode from 80 to 122V.
- Noise attenuation:10dB @ 10kHz / 40dB @ 100 kHz / 100dB @ 10MHz
- Linear attenuation curve from 0.05 - 100 ohms line impedance
- Shutdown Range: Above 137V
Dimensions:
- 19" W x 11.63" D x 1.75" H (48.26 x 29.54 x 4.45 cm)
- Weight: 14.5 lbs. (6.58 kg)
- Shipping Weight: 18 lbs.
