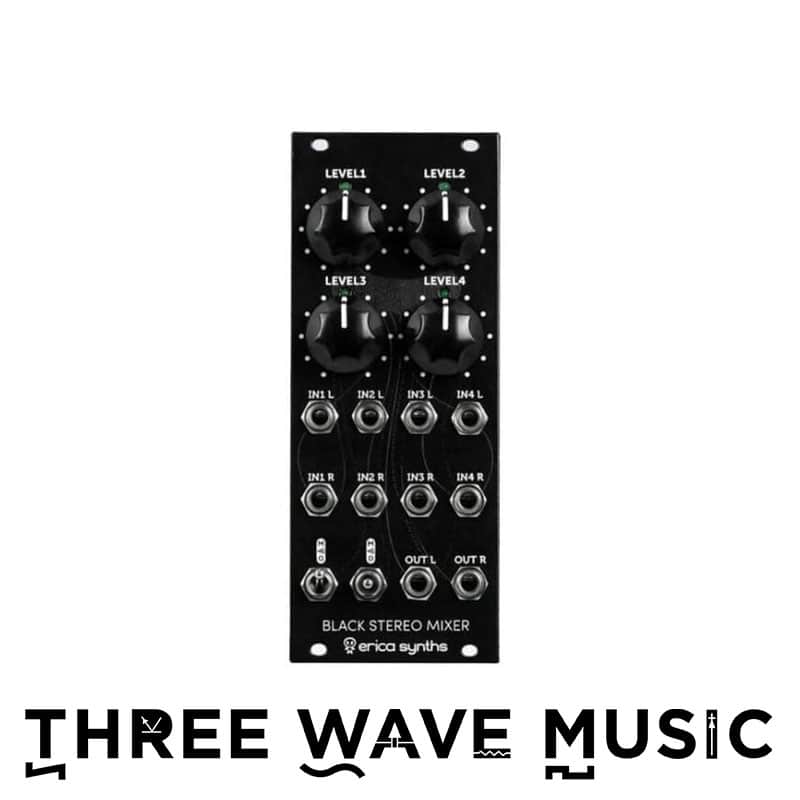

The Black Stereo Mixer is just what you need if your setup has a lot of modules with stereo outputs, like the Black Hole DSP, Fusion Delay, MI Clouds, or others. In order to save rack space, we designed this compact mixer with some cool, performance-oriented features. Features

• 4x stereo inputs with simultaneous volume adjustment on both channels
• 2 inputs with L and R channel merge feature Selectable +6dB boost for IN1 and IN2 L and R outputs Signal level LEDs

In order to save rack space, we designed a compact mixer with a lot of cool, performance oriented features.

Check out also the Black Pre-fade Listen Expander that is a satellite module to Erica Synths Black Stereo Mixer!

Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we did not economise on the module width, we put design and usability first. Big knobs are assigned to functions that make difference in sound. Together the Erica Black series are a range of modules that make an entire synthesizer.

Technical specifications:

Input signal

up to 20Vptp

Mixer gain

1

Power consumption

+25mA, -15mA

Module width

10HP

Module depth

25mm
