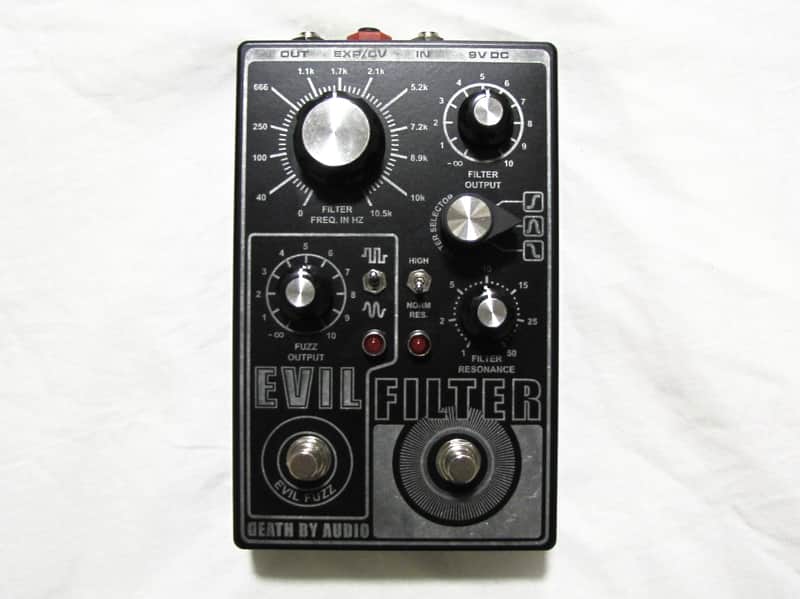

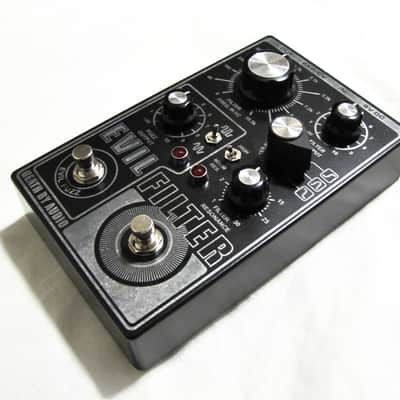

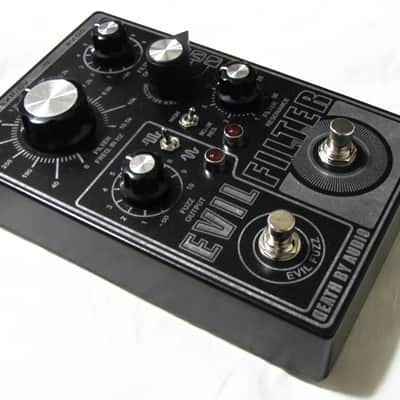

Used Death By Audio Evil FIlter Fuzz Guitar Pedal!

This product was a customer return but is in great condition.

Orders placed before 12:00 PM Eastern Standard Time will ship same day! Orders placed after 12:00 will often ship same day as well, if not, they will ship next day.

International orders: Please note that you will be responsible for any applicable customs fees or import taxes!

Check my feedback and bid with confidence!

FOR THE TRULY WILD

Psycho HP/BP/LP filter with a sleek, laser etched enclosure. Can be pushed past the limit into octaves up, down, and folding envelopes. Its medical grade IC chip creates a hyper precise filter that sounds like no other. The Evil Fuzz takes signals into a much darker dimension, offering an inverted compression toggle to push sounds even further into the depths. Using the CV/Expression input, you can control the filter cutoff frequency with an expression pedal or synthesizer.

CONTROLS

Filter Freq: Cutoff frequency of the filter. Numbers shown are in Hz.

Filter Output: Volume of the filter section of the pedal.

Filter Selector: Selects between the different filter types - Low Pass, Band Pass, and High Pass.

Filter Resonance: Sets the resonance of the filter in conjunction with the Resonance Switch. WARNING: Will self oscillate at high levels!

Resonance Switch: Sets the range of the Filter Resonance knob between Normal and High.

Fuzz Output: Volume of the fuzz section of the pedal.

Fuzz Type Switch: Choose between two different fuzzes - lower for a cleaner, more driving fuzz, higher for a blasted out, blooming, insane fuzz.

EXP/CV Input: Plug in CV control (~0-3.0v) or an expression pedal for external control of the Filter Freq knob. The Filter Freq knob sets the range for the EXP/CV input.

.

SPECIFICATIONS

Dimensions: 7.5" x 4.6" x 2.5" (including knobs and jacks).

Weight: 25 oz.

Power: 9V (runs on standard 2.1mm negative center 9V adapter or included 9V battery).

Current Draw: 21 mA.
