Ashdown MAG300H Bass Amplifier Head

Ashdown MAG300H Bass Amplifier Head

Designed for the busy semi-pro player who doesn't require all the sophisticated tone shaping and connectivity of the ABM range, the MAG range nonetheless delivers classic Ashdown tone all the way.

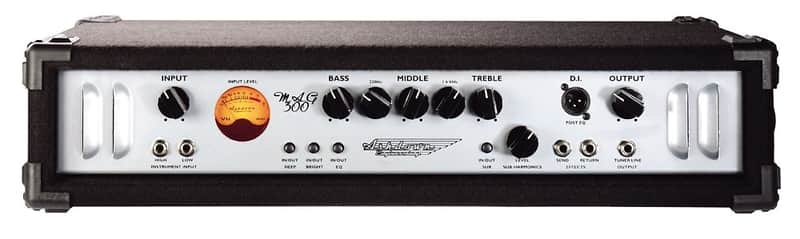

The MAG 300H head features a potent new fan-cooled 307 watts RMS power section. Rotary bass, middle and treble controls are supplemented by smaller rotary controls providing 15dB of cut and boost at 220Hz and 1.6kHz, providing a comprehensive 5 band EQ section. Additionally, front panel push switches for Bright and Deep settings provide instant access to attacking and warm, rounded sounds respectively and, on the subject of low-end response, the trademark Ashdown sub-harmonic generator is ready and able to deliver truck loads of earth moving tone if called upon. Inputs are provided for active and passive instruments and the front panel also features an effects send and return, a tuner/line output and a balanced DI output for direct connection to a mixing console.

Power Output (RMS): 307W

Power Requirement: 230 /115v

Frequency Response: -3dB at 17Hz and 30KHz

Speaker Outputs: Minimum impedance 4 Ohms

High Instrument Input: Impedance 3.9MOhms / Input range 150mV - 20V p-p

Low Instrument Input: Impedance 10KOhms / Input range 300mV - 40V p-p

Line Input: Impedance 22k Ohms / Input level 0dBu nominal

DI Output: 600 Ohms balanced / Level -20dBu nominal

Tuner Output: Impedance 22k Ohms / Level 0dBu nominal

Signal to noise: Better than 80dB (EQ flat)

EQ:
Bass +/-15dB @ 100Hz
Lo Mid +/-15dB @ 220Hz
Middle +/-15dB @ 660Hz
Hi Mid +/-15dB @ 1.6kHz
Treble +/-15dB @ 7kHz shelving
Deep +8dB @ 50Hz
Bright +10dB @ 10kHz

Effects Send: Impedance 22k Ohms / Level 0dBu nominal

Effects Return: Impedance 22k Ohms / Level 0dBu nominal

Distortion: Less than 0.5% THD

H x W x D (mm): 134 x 604 x 315

Weight (kg): 8.5
