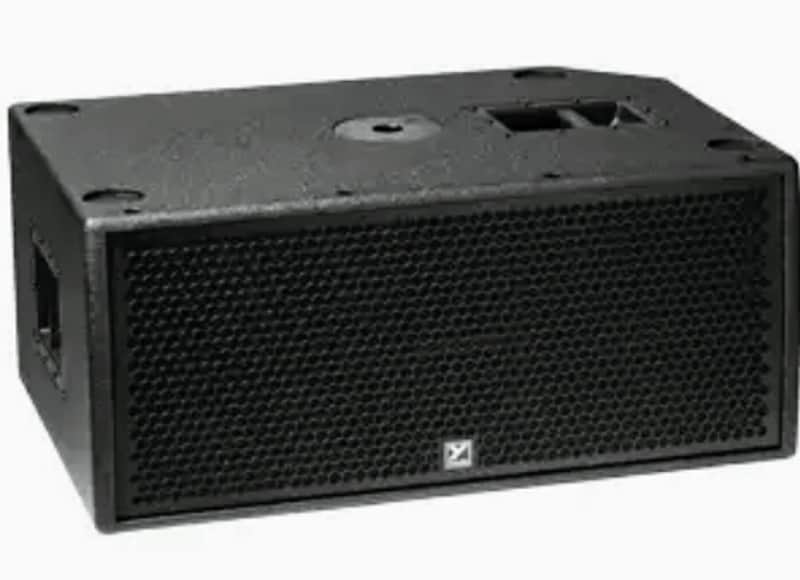

PSA1S 2800 watts peak – powered – compact stackable active subwoofer -- 2 x 12” front loaded woofers, with casters

Overview

Efficient Class-D power amplifier design provides unmatched long-term reliability in the field. Cable of direct connection to any audio source (including speaker level input) the PSA1S can be easily integrated in to virtually any PA application, making it one of the most versatile active subwoofer solutions Yorkville Sound currently offers.

Heavy Duty Precision Stand Adaptor

The PSA1S Subwoofer is one of the first products to use Yorkville Sound's new Heavy Duty Precision Stand Adaptor. In order to minimize top cabinet sway and provide an improved standmount platform for multiple PSA1 cabinets, the PSA1S subwoofer standmount adaptor uses an extremely thick walled cast aluminum stand receiver with a wider mounting plate than has been used on Yorkville subwoofers in the past.

Precision machining after casting allows the highest tolerances possible, this new improved stand adaptor provides a more stable, highly secure pole mount system for mobile Paraline systems when used in combination with the Yorkville SW-TUBEHD Heavy Duty all steel subwoofer tube.

Features

Ultra High Performance Compact Active Subwoofer
High Quality Dual 12-inch Speaker Components
Bass Reflex Design
Ideal Companion Subwoofer for PSA1 System
Solid 15mm Birch Cabinet Construction
Integrated Pole Mount Adaptor & Heavy Duty Wheels
Optional : PSA1SF Flyable Version
Made in Canada

Specs
Active or Passive: Active
Program Power (Watts): 1400 Watts Program (2800 Watts Peak)
Max SPL (dB): 135dB Peak (129dB Continuous)
Frequency Response (Hz +/- 3dB): 37Hz-100Hz
Crossover Frequency (Hz): fixed @ 100Hz
Driver Configuration: 2x12-inch (Bass Reflex Cabinet)
LF Driver(s): 2x12-inch Ceramic with 3-inch VoiceCoil
LF Impedance (Ohms): 2x4 Ohm Load
LF Power Amplifier (Watts): Class D
Power Consumption (typ/max): 210VA / 440 VA
Flyable Version: PSA1SF (EYEBOLT3/8A x 4 Required)
Enclosure Materials: 15mm Birch
Baffle Material: 15mm Birch
Covering / Finish: Paint
Dimensions (DWH xbackW, inches): 22.75 x14 x 32
Dimensions (DWH xbackW, cm): 57.8 x 35.6 x 81.3
Weight (lbs/kg): 120 / 54.6

Specifications subject to change without notice
