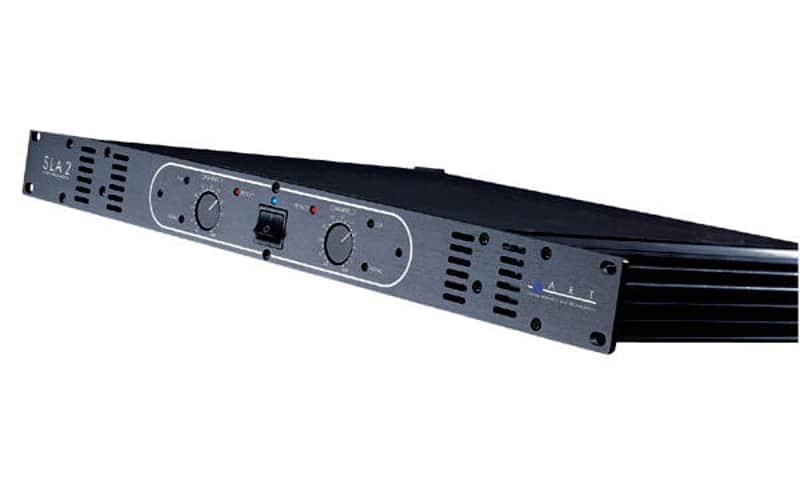

ART SLA2 200W Power Amplifier

Overview
The SLA-2 is studio linear power amplifier capable of delivering 280watts per channel (@4 ohms) with an incredible 10Hz to 40kHz frequency response. Compact single rackspace low noise linear design, the SLA-2 uses a solid steel chassis and toroidal transformer for added long term reliability. Stable down to 2 ohms, the SLA-2 can be bridged mono to deliver a full 560 watts into a single 8 ohm load.

Ideal for any studio or installation application, the SLA-2 uses oversized convection cooling heatsinks and temperature controlled variable speed SmartFan technology to ensure quiet operation in any environment.

Professional Features
The SLA-2 has been designed to deliver in the most demanding audio applications. Housed in an aluminum and steel single space 19-inch rackmount chassis, the SLA-1 uses a proven toroidal transformer design for unmatched long-term reliability.

SmartFan™ Cooling System

Features:

• Toroidal Transformer

• 200 Watts per Channel @ 8 ohms

• 280 Watts per Channel @4 ohms

• 560 Watts when Bridged Mono @ 8 ohms

• 10 Hz - 40 kHz Frequency Response

• XLR, Euroblock & ¼-inch inputs

• Tamper-Proof Faceplate

• SmartFan Silent Cooling System

• Low Profile 1U Rack Mountable All Steel Chassis

• Extremely Low noise, Discrete Linear Design


Specs:

• Bridged Output Power, 8 Ohms: 560 W MONO

• CMRR > 60dB (typical @ 1kHz)

• Frequency Response 10Hz to 40kHz, +/- .5dB

• Total Harmonic Distortion > 0.05% (typical)

• Hum and Noise > 100dB below clipping

• Input Impedance 44k Ω (bal), 22k Ω (unbal)

• Input Sensitivity 1V for full power output

• Input/Output Connections IN: XLR, Euroblock (bal), 1/4" TRS (bal/unbal)

• Stereo Output Power, 4 ohms 280 W RMS per channel

• Stereo Output Power, 8 ohms 200 W RMS per channel

• Transformer Type Toroidal

• Dimensions 1.75"h x 19"w x 13.5"d

• Weight 19.8 lbs (9 kg)
