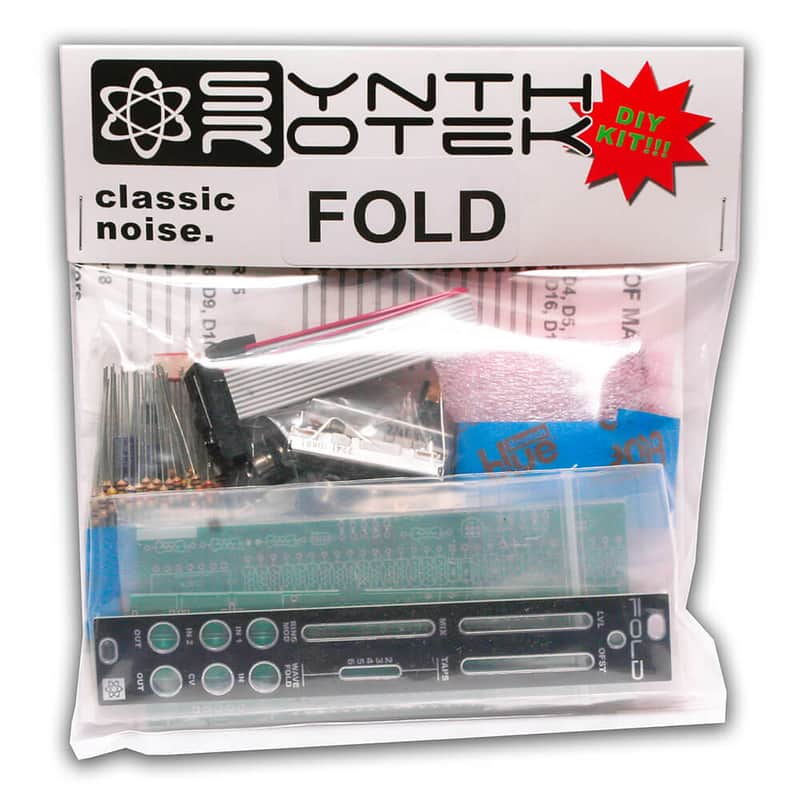

Synthrotek FOLD DIY Kit - Wavefolder / Ring Mod Eurorack Module

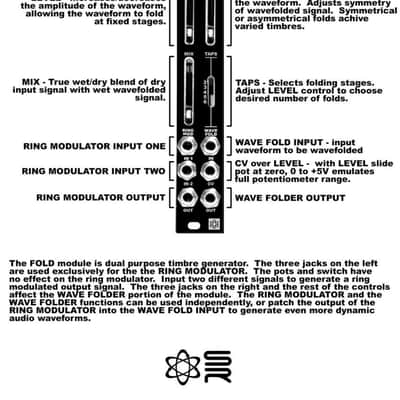

Synthrotek’s FOLD is a combination Wavefolder and Ring Modulator. The FOLD changes the shape of a waveform in order to create harmonics and find new timbres and sonic palettes. The Ring Modulator circuit mixes two waves together to make metallic, bell-like tones, big bass lines and Dalek sci-fi robotic sounds. Patch your folded wave into the ring mod (or vice versa) for sonic euphoria!
Features:

• Ring modulator
• Taps switch selects 2, 3, 4, 5 or 6 stages of folding
• Bipolar CV input over Level
• Offset for adjusting wave symmetry
• Wet/dry Mix

Specifications:

• Module width: 4HP
• Module depth: 60mm
• Current draw:
• +12V: 50 mA
• -12V: 40 mA
• +5V: 0 mA
