Brand new with free shipping!

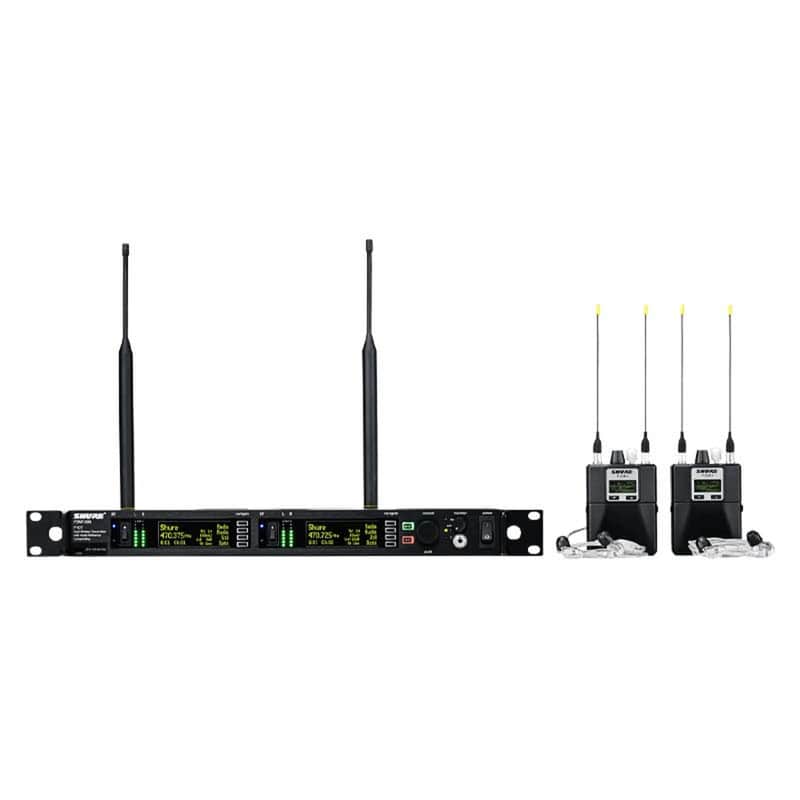

The Shure PSM 1000 is a premier in-ear personal monitoring system designed for top-tier live sound and broadcast applications. Featuring dual-channel diversity bodypack receivers and full-rack dual transmitters, it delivers crystal-clear audio with unmatched RF performance. With its wide tuning bandwidth and advanced RF filtering, the PSM 1000 ensures reliable, interference-free operation even in the most crowded frequency environments. The system’s networking capabilities enable seamless integration with Shure Wireless Workbench software for advanced control and monitoring.

Its precision-engineered design allows performers to hear every detail of their mix with clarity and consistency. True digital stereo encoding provides a natural, immersive listening experience for musicians and talent on stage. The metal construction of both transmitter and receiver units ensures durability for rigorous touring and production use. MixMode technology allows users to customize how they hear their mix, enhancing on-stage flexibility. The PSM 1000 also offers IR sync, AES3 digital input, and Ethernet connectivity for quick setup and system scalability. Trusted by touring professionals worldwide, the Shure PSM 1000 sets the standard for high-performance in-ear monitoring.

Additional informationRF Carrier Frequency RangeG10: 470 to 542 MHzCompatible Frequencies Per Band39Tuning Bandwidth72 MHzOperating Range300' / 90 m (Environment Dependent)Frequency Response35 Hz to 15 kHz (±1 dB)Signal to Noise Ratio90 dB (Typical) A-WeightedTotal Harmonic Distortion (THD)Ref. ±34 kHz Deviation at 1 kHz <0.5% (Typical)CompandingPatented Shure Audio Reference CompandingSpurious RejectionRef. 12 dB SINAD: >80 dB (Typical)Frequency Stability±2.5 ppmMPX Pilot Tone19 kHz (±0.3 kHz)ModulationFM (±34 kHz Deviation at 1 kHz) MPX Stereo Ref.Operating Temperature0 to 135°F / -18 to 57°CRF Output PowerSelectable: 10, 50, 100 mW (+20 dBm)RF Output Impedance50 Ohms (typical)Power RequirementInput: 100 to 240 VAC, 50/60 Hz, 0.5 A Max (5.5, with Outlet Loaded) Output: 100 to 240 VAC, 50/60 Hz, 5 A Max, UnswitchedAudio InputCombination XLR-1/4" /6.3 mm TRSPolarityXLR: Non-Inverting (Pin 2 Positive with Respect to Pin 3) 1/4" / 6.3 mm: Tip Positive with Respect to RingNominal Input LevelSwitchable: +4 dBu, -10 dBVMaximum Input Level+4 dBu: +29.2 dBu -10 dBV: +12.2 dBuPin AssignmentsXLR: 1=Ground, 2=Hot, 3=Cold 1/4" / 6.3 mm TRS: Tip=Hot, Ring=Cold, Sleeve=GroundPhantom Power ProtectionUp to 60 VDCAudio Output Connector Type1/4" / 6.3 mm TRSConfigurationElectronically BalancedImpedanceConnected Directly to InputsDimensions1.7 x 19.0 x 13.5"Weight10.4 lb
