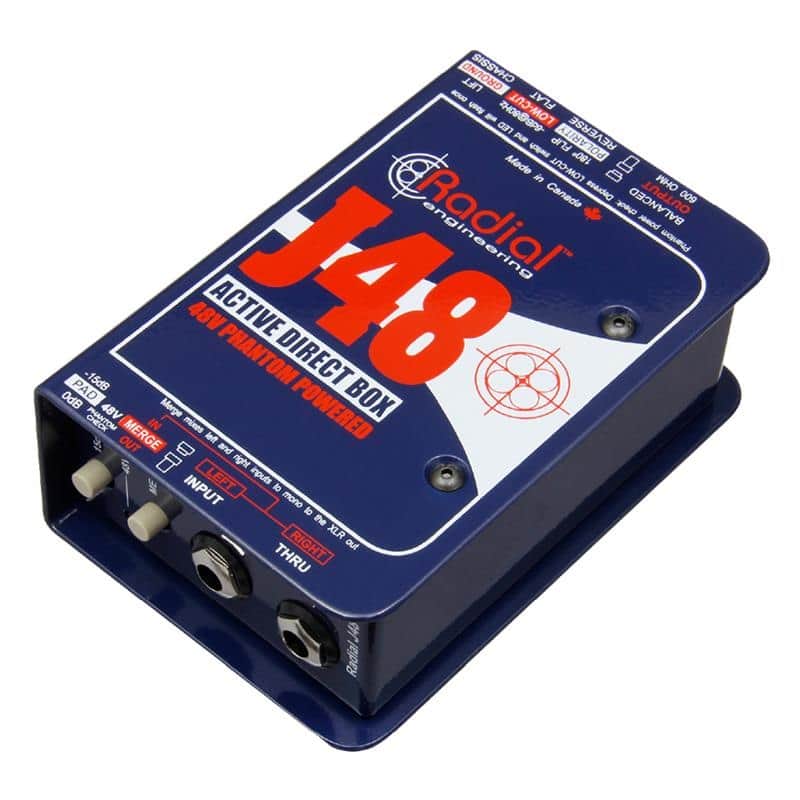

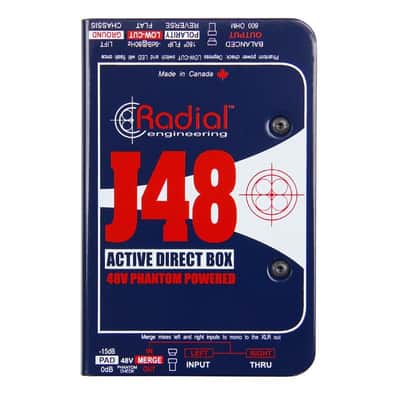

Active DI Box

The Radial J48 is a phantom-powered active DI that reproduces the sound of your instrument without adding distortion or artifacts.

A common problem with many active DIs is that square wave distortion occurs when the input voltage from the instrument exceeds the DI's internal operating voltage. As a result, if the internal operating voltage is low, it cannot accurately reproduce the sound of active basses or acoustic guitars with wide dynamics. To solve this problem, the Radial J48 uses a built-in switching power supply to raise the internal operating voltage from the typical 3V found in most DIs to 9V. This allows for sufficient headroom, providing distortion-free, faithful reproduction of the original sound even with large signals.

In addition to a phase inversion switch, a 15dB pad switch, and a ground lift switch, the Radial J48 also features a unique stereo-to-mono merge switch and an 80Hz high-pass filter switch. The high-pass filter can also be used to cut unwanted low frequencies and improve the clarity of the mids and highs.

■ Stereo to Mono Merge Function

Pressing the MERGE switch on the J48 mixes the signals inserted into the INPUT and THRU ports internally and outputs that mixed signal from the main XLR port. This feature can save channels when the mixer has insufficient channels during a live performance.

■Key Features: ・Exceptional headroom and dynamic range ・Faithfully reproduces the natural tone of instruments ・Equipped with a merge switch to combine stereo instruments into mono ・Supports 48V phantom power, no batteries required ・High-voltage rail (maximum 9V) with proprietary switching power supply to prevent overload ・Low noise floor and clear signal transmission

Audio circuit type: Original analog circuit with low-noise operational amplifier. Frequency response: 20Hz to 20kHz
Dynamic range: 109dB
Total harmonic distortion: 0.002% @ -5dBu
Intermodulation distortion: 0.003% @ -3dBu
Phase deviation: +10º (20Hz), 0º (1kHz), -1º (20kHz)
Input impedance: 220kΩ (1/4 inch input)
Output impedance: 200Ω (XLR output)
Equivalent input noise: -103 dBu
Noise floor: -99dB (below 0dBu reference)
Maximum input level: +10dBu
Key Features: Input pad, mono synthesis, 180° phase inversion, ground lift, high-pass filter. Input/Output Terminals: 1/4-inch input, balanced XLR output, 1/4-inch through. Enclosure: 14-gauge steel chassis and exterior. Dimensions (L x W x H): 84 x 127 x 48 mm
Weight: approx. 720g
Power supply: 48V phantom power (proprietary digital switching method)
Operating temperature range: Use in a dry environment between 5°C and 40°C.
