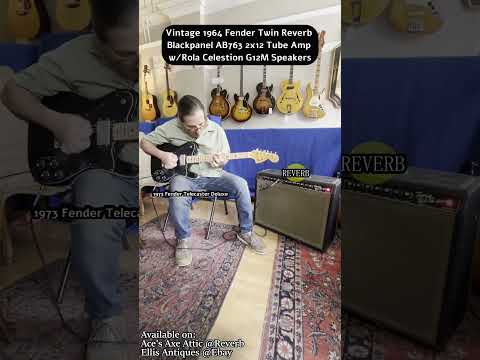

Vintage 1964 Fender Blackpanel Twin Reverb AB763 circuit 2X12 Tube Amp w/Rola Celestion G12M Speakers~
SN# A 00587

Vintage 1964 Fender Twin Reverb-Amp in the classic early Black Panel configuration. Pre-CBS era, serial number A 00587, an August 1964 build date, and the famed AB763 circuit.

The Twin Reverb was Fender’s high-powered professional 2x12 combo, pairing tremendous clean headroom with onboard spring reverb and Fender’s tremolo/“Vibrato” on the control panel.

SPECIFICATIONS:

Manufacturer: Fender Electric Instrument Co.

Model: Twin Reverb-Amp

Year: 1964

Serial Number: A00587 chassis stamp

Circuit: AB763

Documented Build Date: August 1964

Configuration: 2x12 tube combo amplifier

Nominal Output: Approximately 85 watts

Normal Channel: Inputs 1 & 2, Bright switch, Volume, Treble, Middle and Bass

Vibrato Channel: Inputs 1 & 2, Bright switch, Volume, Treble, Middle, Bass, Reverb, Speed and Intensity Effects: Fender spring reverb and optical tremolo/vibrato

Power Tubes: Four JJ 6L6GC tubes presently installed

Speakers: Pair of Rola Celestion G12M

Speaker Power Capacity: 25 watts each

Speaker Impedance: 8 ohms each

Service / Repairs

The amplifier received extensive services including:

Cleaning of all controls.

Replacement of all power-supply and cathode-bypass capacitors.

Touch-up of poor solder joints.

Replacement of the 470-ohm power-tube screen resistors.

Replacement of the phase-inverter plate resistors.

Replacement of the 1.5K-ohm power-tube grid resistors.

Bias adjustment

Repair of a non-functioning Bright switch.

Removal and installation of a reconed Rola Celestion speaker.

Repair of weak tremolo/vibrato.

Replacement of tremolo-circuit capacitors.

Replacement of the neon lamp in the optical “roach” tremolo circuit with a bright LED, reportedly eliminating tremolo ticking and producing a deep, responsive tremolo effect.

Installation of rubber cabinet feet.

Tightening of the speaker-baffle screws.

The service sheet additionally notes that the amplifier had previously received a complete set of JJ tubes, a three-prong power cord and a front-panel power switch.

The technician also notes the presence of the desirable factory blue coupling capacitors.


CONDITION:

Good vintage, serviced condition with cosmetic wear consistent with an amplifier that has been used over its approximately six-decade life of service. The black Tolex shows some lifting, asst bumps & bruises scuffing, scratches, edge wear and areas of surface abrasion, particularly around the corners and upper edges. Metal hardware, including the tilt-back legs, chassis surfaces, handle mounts and corners, exhibits oxidation, tarnishing and age-related wear.

The grille cloth has age toning and general wear with visible pulls, fraying and a small puncture/tear toward the left-center area. The Fender grille emblem remains present.

The black control panel shows scratches, small chips and general wear to the graphics. Several control-knob center inserts exhibit oxidation and discoloration. The jewel pilot light is present.

A non-original power switch has been added to the front control panel. The original rear power-switch is long gone.

The original speakers are no longer present. The amp is fitted with two Rola Celestion G12M 25-watt, 8-ohm speakers made in England; service documentation states that one Celestion was reconed and reinstalled.
