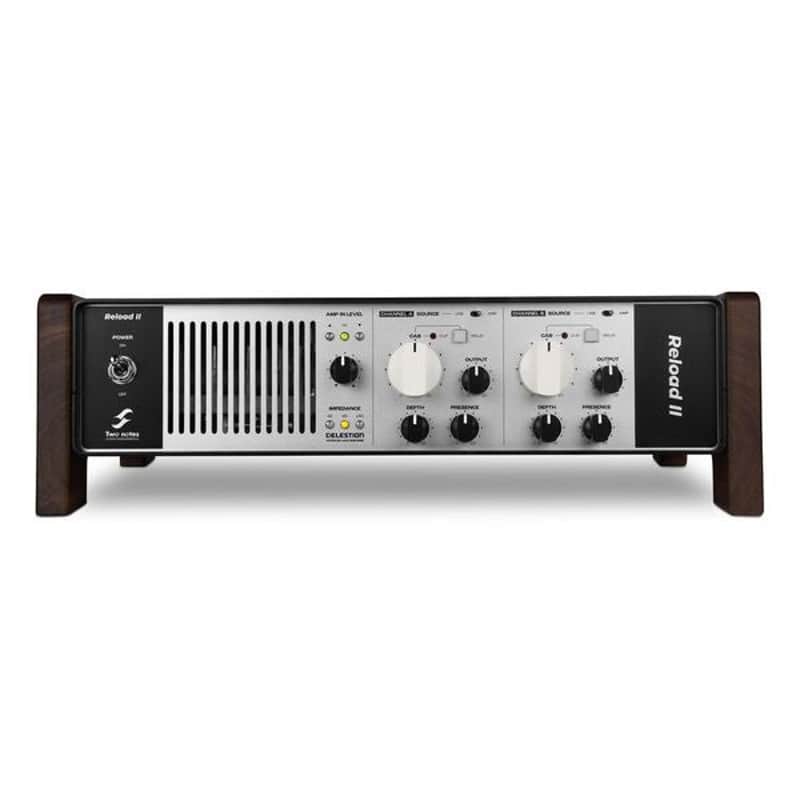

The Two Notes Torpedo Reload II is a dual-channel reactive load box and active continuous attenuator for amps up to 200W RMS. Switchable 4 / 8 / 16 Ω load with Celestion Approved Load Response, twin speaker outputs powered by a transparent amp stage, stereo FX loop, and dual XLR line outs cover silent recording, attenuated stage volume, and stereo or dual-mono backline.

Load and Attenuation

The reactive load presents a Celestion-inspired impedance curve at 4, 8, or 16 Ω. Continuous attenuation on each channel runs from silent to full, driven by an onboard power amp (up to 215W per channel into 4 Ω). Depth, Presence, and Mojo controls shape feel at low volume. Dual line inputs accept stereo or dual-mono line sources alongside the speaker-level amp input, with independent source select per channel.

FX Loop and Software

A footswitchable stereo FX loop offers series/parallel-style dry/wet mix, +4 dBu / -10 dBV level matching, and A-to-B link for wet/dry/wet style setups with two cabs. GENOME Reload II Edition is included with the Series-R DynIR collection (24 cabinets from Celestion and Two Notes) for DAW cab sim after the dry XLR outs.

Specifications

• Type: Dual-channel reactive load box and active attenuator
• Load impedance: 4 / 8 / 16 Ω switchable
• Max load power: 200W RMS (250W peak), with ventilation
• Speaker input: 1/4" TS, max 140V AC
• Speaker outputs: 2 x 1/4" TS; single-channel max 215W @ 4 Ω, 120W @ 8 Ω, 50W @ 16 Ω
• Both channels driven: 2 x 150W @ 4 Ω, 2 x 120W @ 8 Ω, 2 x 50W @ 16 Ω
• Line inputs: 2 x 1/4" TRS balanced
• Line outs: 2 x XLR
• FX loop: Dual-mono send/return, footswitchable
• Tone controls: Depth, Presence, Mojo per channel
• Cooling: Passive heatsinks plus temperature-controlled dual-speed fan; thermal security load
• Mains: 100-230V, 50/60 Hz, IEC C14, 100W max
• Form factor: Desktop with wood side panels; 2U rackable with included rack ears
• Dimensions: 365 x 220 x 89 mm (14.4" x 8.7" x 3.5"); 365 x 240 x 89 mm (14.4" x 9.4" x 3.5") including connectors and knobs
• Weight: 6.9 kg (15.2 lb)

In the Box

• Two Notes Torpedo Reload II
• Rack ears
• IEC power cable
• GENOME Reload II Edition with Series-R DynIR cabinet collection (download)
