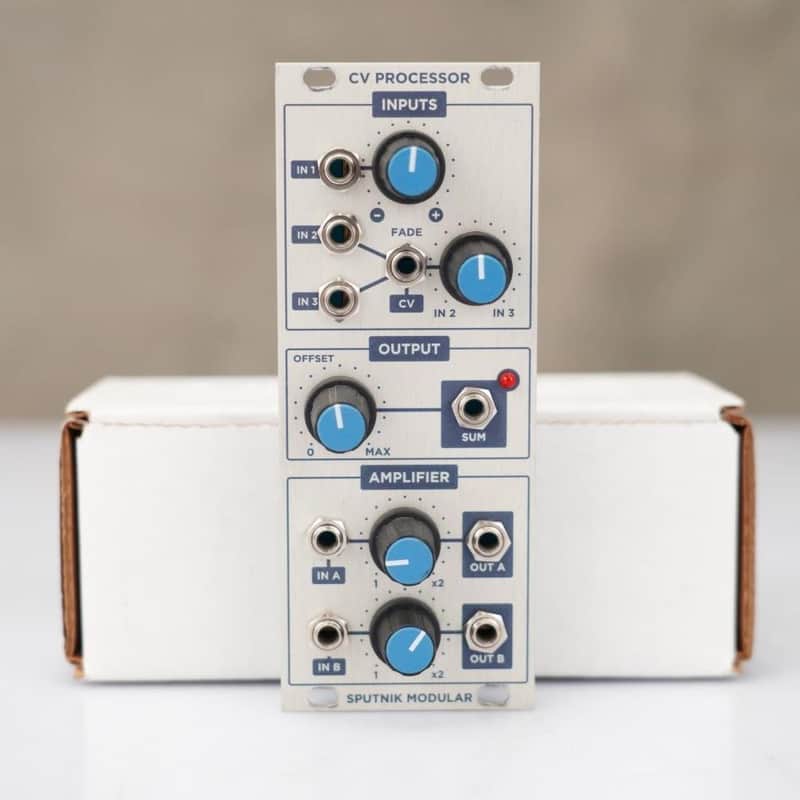

Sputnik Modular CV Processor Eurorack Module #58434

WORKING CONDITION: Excellent. This module tests perfectly within an existing Eurorack system.

PHYSICAL CONDITION: Excellent: All metalwork, knobs, power pins, and iO jacks are in excellent physical condition.

INVENTORY #58434

BRAND: Sputnik Modular

MODEL: CV Processor

FUNCTION: Eurorack Synthesizer Module

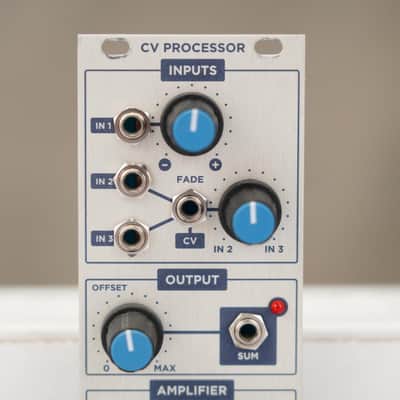

PRODUCT DESCRIPTION: This listing is for a Sputnik Modular CV Processor Eurorack Synthesizer Module. The Sputnik Modular CV Processor is a multi-functional Eurorack module designed for comprehensive manipulation of control signals and audio. It features tools for summing, inverting, attenuating, and amplifying voltages, making it a versatile utility for "West Coast" style synthesis.

SPECS:

• Input 1 (Attenuverter): Features a front-panel attenuverter for bi-directional voltage control, allowing you to invert or scale incoming signals.
• Input 2 & 3 (Crossfader): These inputs can be crossfaded manually using a dedicated knob or via external CV (ranging from 0 to +5V).

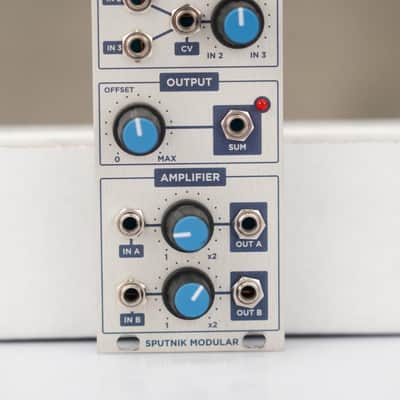

• Amplifier & Summing: The module includes two independent amplifiers with manual gain control ranging from unity to 2x gain. It can sum the result of Input 1 with the crossfaded mix of Inputs 2 and 3, and a DC offset can be added to the final output.
• Width: 10HP.
• Current Draw: 40 mA (+12V), 40 mA (-12V), and 5 mA (5V).
• Signal Compatibility: While primarily designed to amplify Sputnik-standard 0-5V control voltages to 0-10V ranges for other modules, it can also process audio signals in the same manner as CV.

ACCESSORIES INCLUDED:

• 16 Pin Eurorack Power Cable
• (4) Eurorack Screws & Washers

UNPACKAGED WEIGHT: 1 lbs.

UNPACKAGED DIMENSIONS: 6" x 3" x 4"
