Continuing the tradition of the original MAGELLAN® amplifier design, the MAGELLAN 800+ represents a new pinnacle in lightweight, high-output, versatile, bass amplification.  Our years of research, design and manufacturing expertise, along with listening to players’ needs, has helped us to develop this model utilizing stringent design parameters for performance, form, function, fit and finish.  The new MG-800+ continues the reputation of the original design as a simple interface for the user and one of the most musical amplifiers available.

The expanded feature set and high output power level makes this amplifier an essential tool on the global stage, and with its universal power supply, the MAGELLAN® 800+ can be used with any voltage around the world without modification.

After 10 years in service, GENZLER® AMPLIFICATION is proud to introduce the next generation of this 800-watt professional, tour-class bass guitar amplifier — the new MAGELLAN® 800+.

Carrying forward the legacy of night-after-night reliability, the MAGELLAN® 800+ reaches even higher achievements in performance with several new features, improved preamp circuitry, expanded EQ network, and all within the same rugged chassis and stringent design and build expertise we are known to achieve.

The MAGELLAN® 800+ delivers the most powerful, feature-laden, compact bass amplifier available in its class.  This new model offers improved dynamic response and feel; along with superior low-noise thresholds and increased dynamic headroom.  This is exactly what players have come to expect from the GENZLER® AMPLIFICATION design team – innovation, performance, reliability and versatility.

The MG-800+® is a solid-state, all analog design and provides a simple, musical interface, and the tonal palette needed to cover all of the bassist’s amplifier requirements; from natural, pristine, transparent reproduction of the bass instrument to classic, vintage harmonic textures with “weighted feel to the notes”.  This is packaged within the classic Magellan styling and all-aluminum chassis, weighing only 6.25 lbs.

MAGELLAN® 800+ Features

• Updated Input Circuitry: Provides increased dynamics and responsiveness
• Drive Circuitry: All-new design delivering a wide range of tube-like harmonics and compression; footswitchable
• High Pass Filter (HPF): Multi-slope, frequency-dependent, adjustable between 25–120 Hz
• Dual Contour Circuit: Unique contour shaping, now footswitchable and independently adjustable
• 4-Band Active EQ: Includes two sweepable midrange frequencies for precise tonal control
• High-Grade Op-Amps: Lower noise threshold and higher dynamic headroom throughout the preamp
• Optional Dual-Function Footswitch: Controls DRIVE and CONTOUR functions
• Lightweight Design: Weighs only 6.25 lbs for ultimate portability

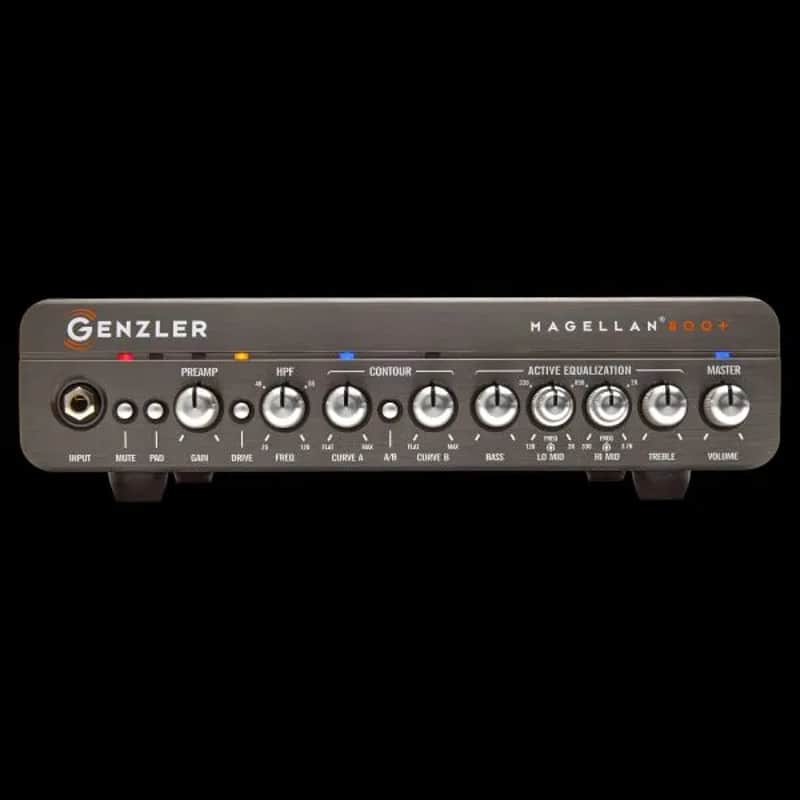

Front Panel Features

• Input: ¼” input
• Mute: Signal mute switch
• Input Pad: -8.5 dB
• Gain Control: Gain level control
• Drive Channel: Switchable, voiced for driven tonal character and harmonic texture (controlled by gain & master volume)
• HPF (High Pass Filter): Variable from 25 – 120 Hz
• Contour Circuitry (Dual-Curve, Footswitchable):
• • Curve A: Classic to Modern (mid scoop)
  • Curve B: Thicker to Vintage (low-mid bump with tapered top end)
  • Flat: Full bypass
• EQ: Active 4-band EQ with 2 parametric mids
• • Bass: ±15 dB @ 75 Hz
  • Low Mid: ±15 dB (120 Hz – 2 kHz)
  • High Mid: ±15 dB (330 Hz – 3.7 kHz)
  • Treble: ±15 dB @ 6 kHz
• Master: Master volume control

Rear Panel Features

• Impedance Selector: 8/4 ohm to 2.67 ohms
• Speaker Outputs: Dual Speakon outputs
• Headphone Output
• Footswitch Input: For optional 2-button footswitch
• Effects Loop
• Tuner Output Jack
• Direct Output: Pre/Post switchable
• Cooling: Thermal sensing variable-speed fan
• Chassis: Aircraft-grade all-aluminium with extruded aluminium front panel
• Power Amplifier: Class D with auto-sensing universal switch-mode power supply (100–240V)

Specifications

• Power Output: 400W @ 8Ω, 800W @ 4Ω, 800W @ 2.67Ω
• Minimum Load: 2.67 ohms
• Power Requirement: 100–240V, 50/60 Hz
• Dimensions: 3”H x 11.25”W x 10.5”D (76.2 x 285.75 x 266.7 mm)
• Weight: 6.25 lbs (2.83 kg)

Shipping Data

• Dimensions: 16.5”L x 13”D x 5.75”H (419.1 x 330.2 x 146.02 mm)
• Weight: 9 lbs (4.08 kg)
