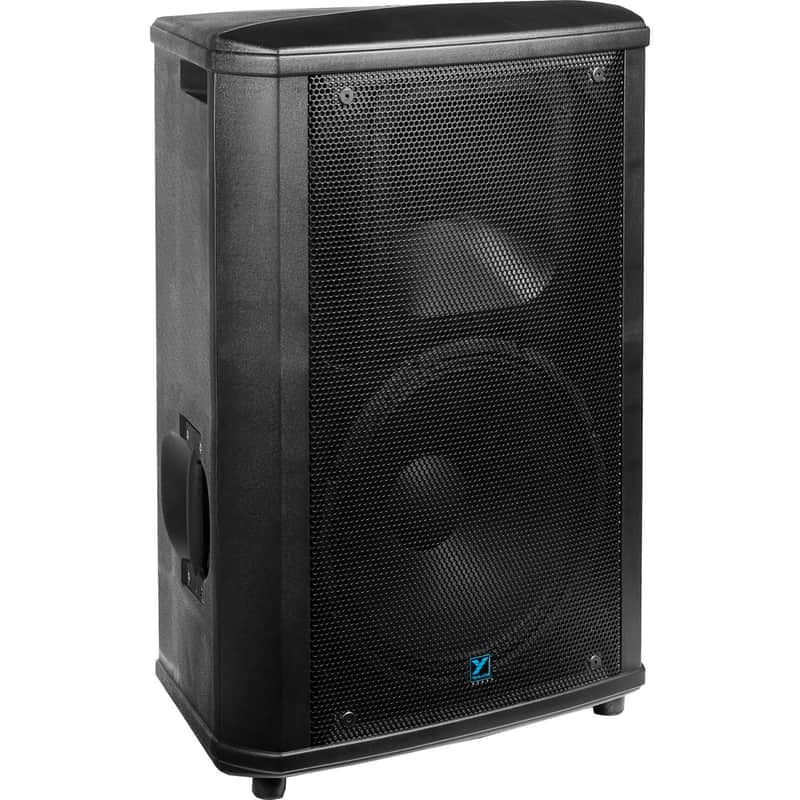

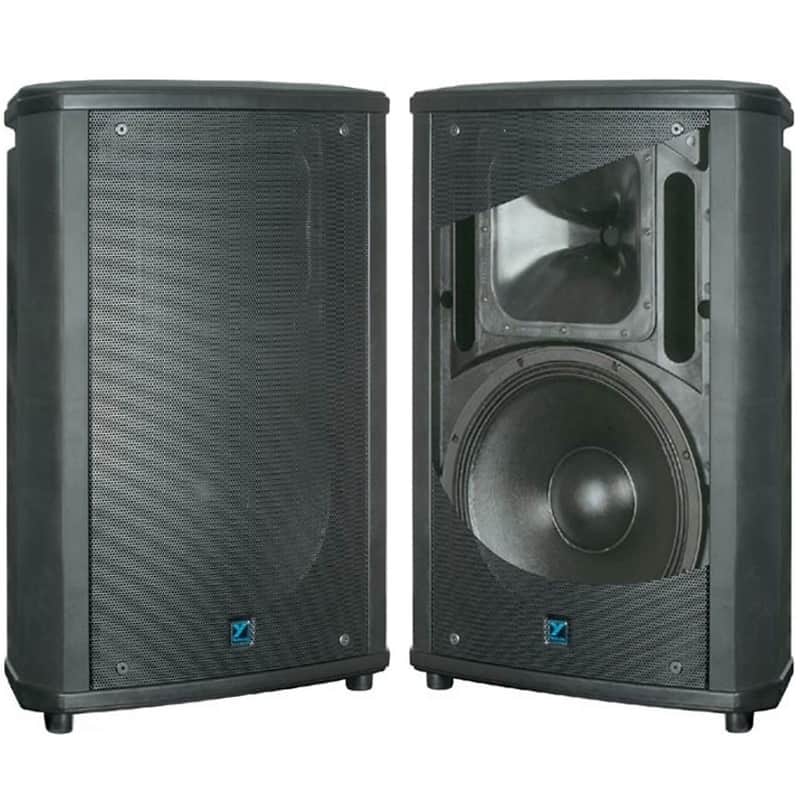

NX750P-2
750 watts - powered - 15” woofer & 80°x50° horn w/1” driver - 650/100 watts bi-amp built
in mixer with microphone and line inputs, mixer bypass, link jacks and more
Overview
Innovative biamplified power module uses a two-tier class H linear technology to produce loud clean transients to match the high output of the woofer. Its two-tier design technology is lower in weight and more efficient than conventional amplifiers while providing higher headroom and lower operating temperature - a perfect solution for powering the top end.
A newly designed switch-mode amplifier drives the woofer in the NX750P-2. The amplifier uses Class D switching technology, in part to reduce overall weight - it also runs cooler. Class D technology is similar to the power supply found in the trend-setting Elite EF500P's amplifier. Of particular significance is this technology's inherently low heat production which ensures reliability in a wide range of environments. Then the NX750P-2's combination of neodymium woofer magnetics and lightweight composite enclosure materials further ensure that all this remarkable performance comes in a lightweight, durable package.
Added to this is a great degree of versatility. For example the NX750P-2 can easily be used in any orientation - vertical or horizontal (eg stand-mounted or as a floor monitor) - close to walls in installations (flypoints are built-in) or in arrays with multiple NX750P-2s. There is also a versatile direct input system and built-in mixer. The mixer allows the NX750P-2 to be used directly with a microphone and/or a line source.
A "loop" output allows multiple NX750P-2s to be interconnected with mic or patch cables and controlled by one cabinet's mixer stage or direct line input. Here's another versatile trick - you can combine NX750P-2's using the mixer inputs on each cabinet and coupling the loop outputs to provide a complete, easy-to-use PA with its own microphone inputs and line inputs for background music or other audio. It's ideal for duos in small clubs, also presentations or teaching applications. Many NX750P-2's can be linked together but a maximum of three "mixers" can be active at any one time making three mic sources and six line sources available in any three-or-more-cabinet arrays. The trim control allows looped cabinets to be individually adjusted in level. Finally, the microphone input has bass and treble equalization and a 100Hz selectable high-pass filter appropriate for vocal-only applications or to let you add NX or Elite powered subwoofers, without a crossover.
Acoustic performance is ultimately the most important factor in any loudspeaker. The NX750P-2 offers 134dB (Peak) of maximum sound pressure potential and a wide, smooth audio range to ensure fidelity throughout the audience area.
FeatureIntegrated 1600 Watt Amplifier Peak (750 Watts Program)Max SPL 133dB Peak (127dB Continuous)Ultra-light injection molded Polypropylene constructionDual purpose full range and wedge monitor format enclosureUltra-clear reproduction throughout bandwidthLightweight, high efficiency, high tech Bi-amped power moduleProven TX style processing and component protection+6dB/-infinity input trim control for individual cabinet level adjustmentXLR and TRS inputs / outputs for easy connection and loopingMulti-input source mixer for direct inputsDirect microphone input with level controlTwo-way overall EQ controlsHigh quality 1.5" High Frequency driverRotatable 80° x 50° hornNext generation woofer / driver / horn technologyIntegrated flying hardware (1/4-20 threaded holes)Tough, full length metal grilleRecessed Mixer panelMade in Canada
SpecificationsSystem Type 2-WayActive or Passive ActiveProgram Power (Watts) 750 Watts (1600 Watts Peak)Biampable Self PoweredMax SPL (dB) 133dB Peak (127dB Continuous)Frequency Response (Hz +/- 3dB) 50 - 26kCrossover Frequency (Hz) 1400Driver Configuration 15-inch / 1.5-inchHF Driver(s) 1.5-inch Polyester voicecoil (1-inch Throat)HF Dispersion (°H x °V) 80 x 50 rotatableLF Driver(s) 15-inch w/ 3-inch voicecoilHF Amplifier Type Two Tier Class HLF Amplifier Type Class DPower Cable YesPower Switch YesInputs 7Inputs - 1/4" Jacks 2 (line input) 2 (link in/out)Inputs - XLR 1 (mic) 2 (line in/out)Input Sensitivity (Vrms Sine) +4dBv / 1.23VMixer Controls Mixer on/off switchMic GainLine/CD GainTreble/Bass TweakLevel Controls +6dB/-infinity Main VolumeEQ Controls 100Hz HP Filter (LF Rolloff)Limiter YesLED Indicators Power/Clip/LimitOther Controls / Features Side recesses for ease of liftingFeet YesBar Handles 1 (Side)Flying Hardware 1/4-20 x 5 - 2 (Top), 2 (Bottom), 1 (Pullback)Optional Flying Hardware NX FlywarePole Mount Adapter (1 3/8"-3.5cm) YesEnclosure Materials Injection molded PolypropyleneGrille Perforated MetalDimensions (DWH xbackW, inches) 15 x 22 x 32 x 9.5Dimensions (DWH xbackW, cm) 38 x 56 x 84 x 24Weight (lbs/kg) 62 / 28
Specifications subject to change without notice
