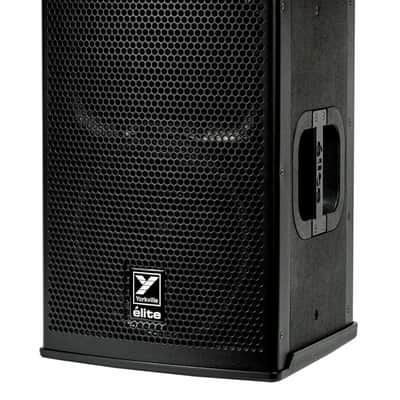

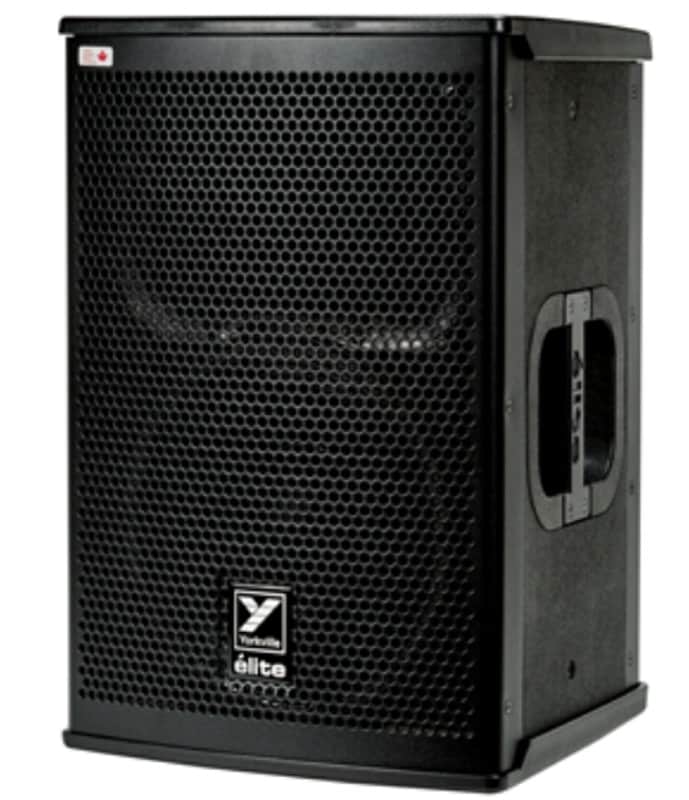

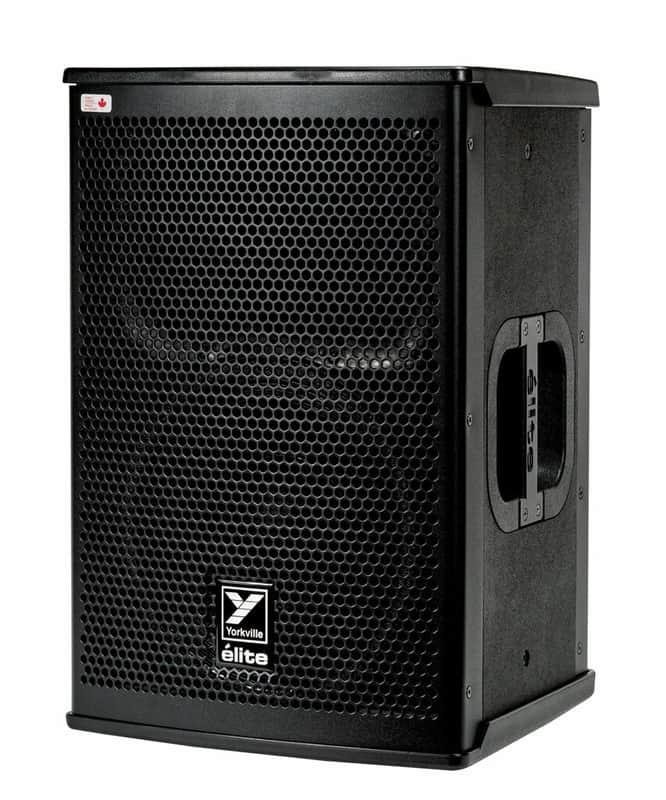

élite series - EF10P
10-inch / 3-inch - 600 watts
The next generation of élite series speakers are here.
2 Year Unconditional, No-Fault Warranty (Yorkville will repair or replace it - even if YOU BREAK IT!). 10 Years Warranty on the Wooden Enclosure
600 watts - powered - 1/10" & 3” HF driver on 60°x 40° horn – Dedicated FOH Cabinet
w/flying Hardware, built in mixer, and iOS and Android APP for remote control of DSP settings
Features
High Output, High Quality and extremely durableDedicated Front of House boxCompletely Redesigned Next Generation Elite CabinetABS Coated Birch Plywood Cabinet ConstructionMultiband DSP Limiting with 4 Preset Performance Modes3-inch Titanium Diaphragm Compression Drivers for Reduced Distortion at High SPL10-inch Long Excursion Cast Frame Neodymium Woofer with 3-inch VoicecoiliOS and Android App for Added Cabinet Control (Coming Soon)Made in Canada
SpecificationsSystem Type: 2-WayActive or Passive: ActiveProgram Power (Watts): 600 Watts (1200 Watts Peak)Max SPL (dB): 129dB Peak (123dB Continuous)Frequency Response (Hz +/- 3dB): 48 - 20k (Hz +/- 3dB)Crossover Frequency (Hz): 1400Driver Configuration: LF - 10-inch, HF - 1.5-inch DiaphragmHF Driver(s): 1.5 Inch Voicecoil (Titanium Diaphragm)HF Dispersion (°H x °V): 90x30LF Driver(s): 10-inch neo magnet w/2.5-inch Voice coilHF Power Amplifier (Watts): 100HF Amplifier Type 2-Tier High HeadroomLF Power Amplifier (Watts): 500LF Amplifier Type: Class-DPower Cable: 25 ft (7.6m) Heavy Gauge Detachable IECIn / Out Connection: 1 x XLR & 1/4-inch Combi-jack, 1/8" Line Inputs1 x XLR microphone Input1 x XLR & 1/4-inch Combi-jack Main Input1 x XLR-M ThruputInput Impedance Bal/UnBal): 95KOhms / 90kOhmsInput Sensitivity (Vrms Sine) : +4dBv / 1.23VControls Mixer EnableMic Input w/levelLine Input w/levelDSP Mode (Club, Concert, Vocal, Custom)Sub: (100Hz HP Filter)Bluetooth Control EnableMaster LevelBar Handles: 1 x Side / 1 x TopFlypoints: 8 x ¼-20 (2 Top, 2 Bottom, 2 Each Side) + 1 Pullback (Back)Pole Mount Adapter (1 3/8"-3.5cm): 1 Bottom (1 3/8-inch / 3.5cm)Enclosure Materials: ABS Coated Baltic Birch PlywoodDimensions (DWH xbackW, inches): 13 x 13.7 x 20 x (Back Width) 11.1Dimensions (DWH xbackW, cm): 33 x 34.8 x 50.8 x (Back Width) 28.2Weight: (lbs/kg) 43 / 19.5 Specifications subject to change without notice
Price$1,179
