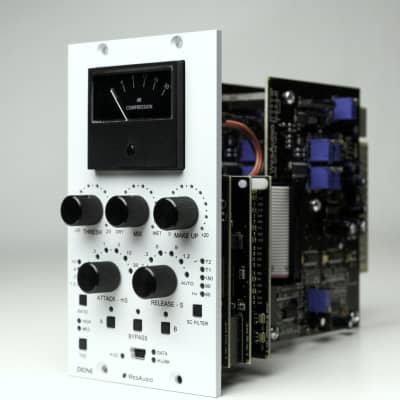

WesAudio DIONE ng500 500 Series Stereo Bus Compressor

The WesAudio _DIONE implements famous bus compressor design made with best components available on the market. Unit is fully compatible with GCon protocol which allows complete parameters management over USB or through open specification 500 series frame – _TITAN. Besides its vintage and transparent nature, unit itself implements many modern features which brings extreme flexibility to shape your sound – like parallel compression or configurable harmonic distortion.

Features

• famous bus compressor design with usage of best analogue components,
• compatible with GCon – innovative High-speed USB/Ethernet protocol,
• digitally controlled and isolated analog circuit
• direct USB connection to control analogue device with usage of VST2/VST3/AAX plugins.
• hardware A/B settings switch,
• digital sidechain – side chain signal can be sent from the plugin itself (DAW) to the compressor,
• 3 touch sensitive encoders allow record automation of particular parameters (Threshold, Mix, Make Up) in DAW,
• true bypass
• accurate analogue GR meter and its precise simulation implemented in the plug-in itself,
• THD – harmonic distortion with two modes (Medium & High),
• Mix knob which allows parallel compression,
• free software and firmware upgrades,
• +24dBu of headroom

Specifications

• Frequency response: 20Hz-20kHz (0.1dB)
• THD+N (WET): 0.008% (1kHz,0dBu)
• THD+N (DRY): 0.004% (1kHz,0dBu)
• Input impedance: 10kohm
• Output impedance: <100ohm
• Max gain: 21dB
• Crosstalk:
• < -90dB
• Attack: 0.1,0.3,1,3,10,30 (ms)
• Release: 0.1,0.3,0.6,0.9,1.2,Auto (s)
• Ratio: 1.5,2.4.10
• SC Filter: 60,90,150,T1,T2
• THD (MID switch): 1%
• THD (HIGH switch): 4%
