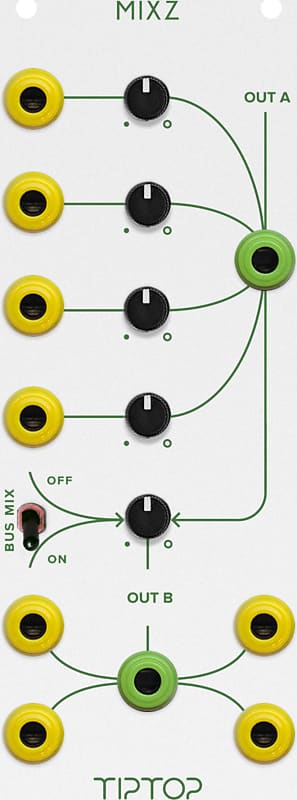

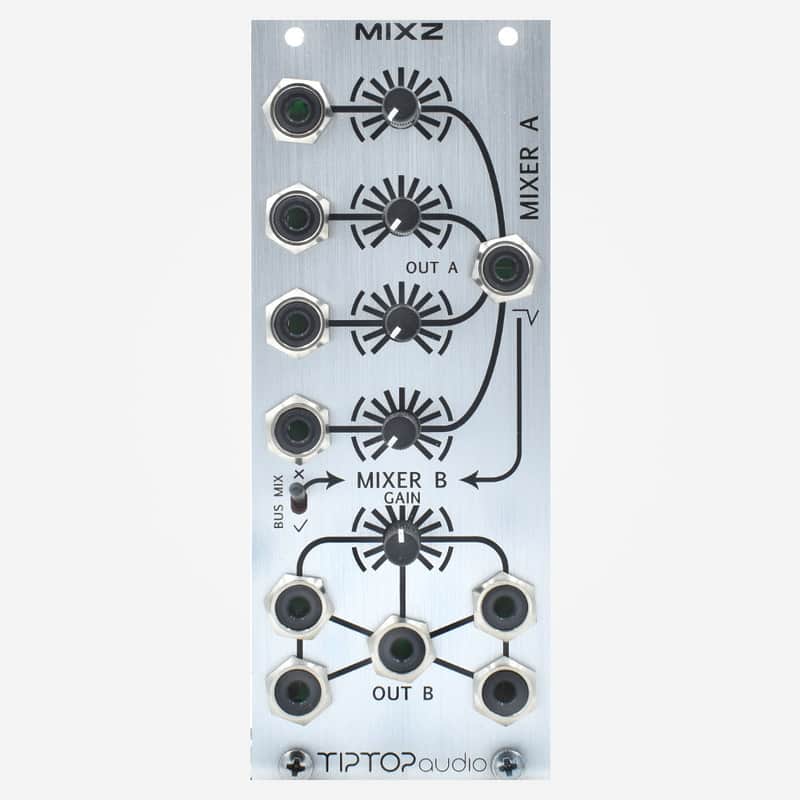

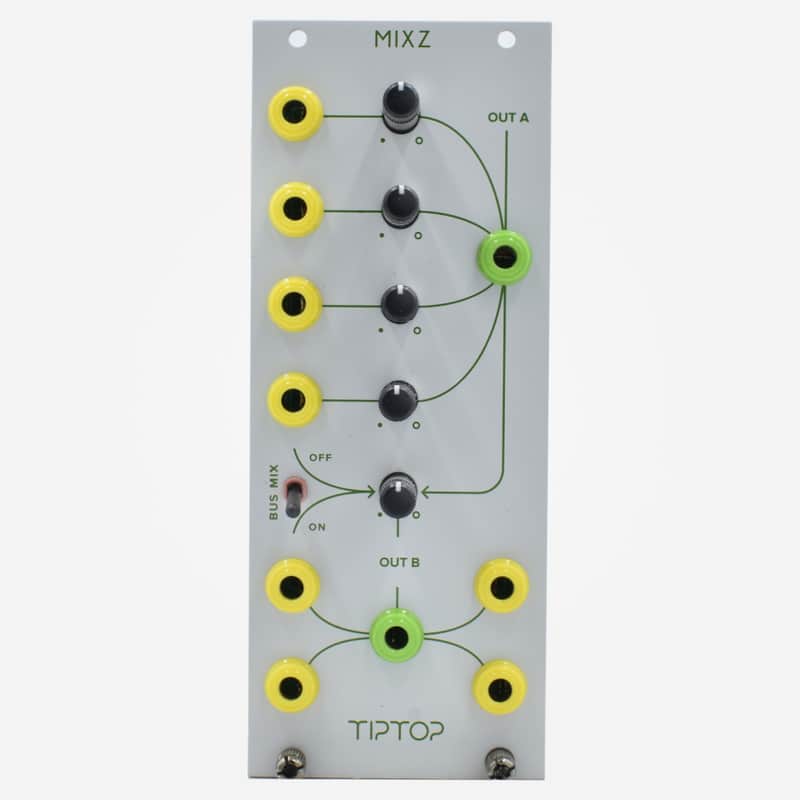

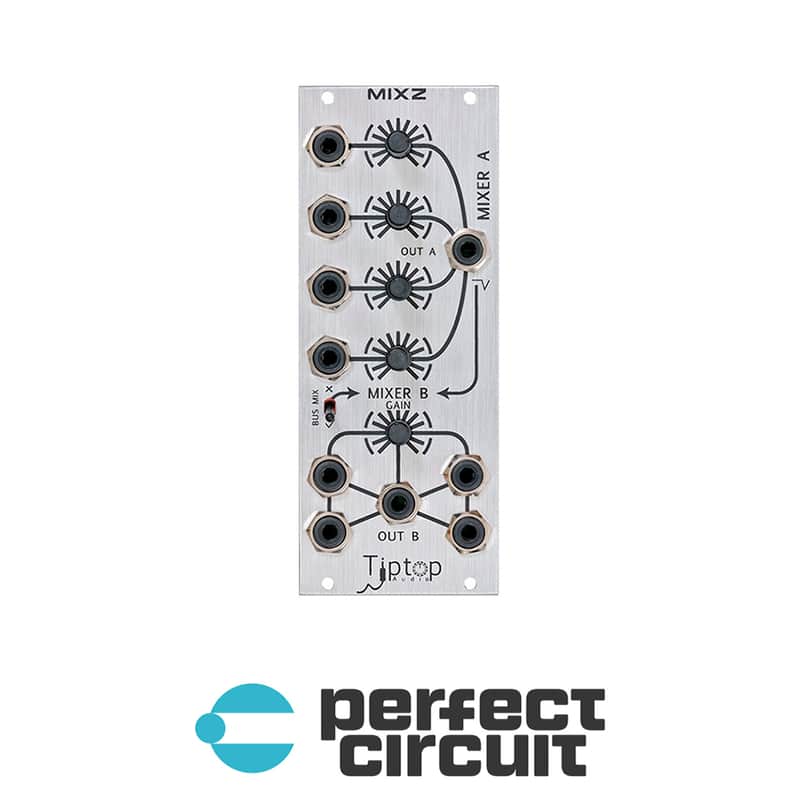

The Tiptop Audio ‘MIXZ’ is a low-cost, analog multi-channel mixing module for mixing audio, CV, and gate signals with excellent linear response and low noise. Balancing a clear visual layout and multiple mixers in a small footprint makes the MIXZ easy to use in a variety of configurations within the modular synth. Its high quality analog mixing circuitry makes for a great sounding mixer with plenty of headroom, providing a smooth organic merge of dynamics, and excellent separation of mixing sections and channels.
MIXZ has three sections. Mixer A is a low-noise, 4-channel mixer with independent gain control for each channel. Mixer B is a low-noise, 4-channel mixer with master gain control. Bus Mix is a multi-channel mixer that mixes signals from modules utilizing the Tiptop Audio Bus Mix.
Mixer A and B can be configured as either two independent 4-channel mixers or as a single 8-channel mixer. If the output of Mixer A is not in use, then Mixer A will be routed internally to Mixer B forming the 8-channel mixer.
Tiptop Audio Bus Mix is a new method they have developed to mix audio signals through the Eurorack power bus board without patch cables, a little bit of magic, eh? Although this technique is not ideal for a low-noise mix, Tiptop Audio have found it to be useful for some applications including mixing Tiptop Drum modules, which all have a Bus Mix enabled output. The result is that the Drum modules are always available and mixed on the master out of the MIXZ with a flip of a switch. This will save users time and frees up cables for repotting sounds again and again, while keeping the channels of MIXZ free to bring other signals into the mix.
Combining the Bus Mix with Mixer A and B, the MIXZ can sum dozens of channels in only 10 HP.
Features
Tiptop Audio MIXZ Mixer
Low-Cost Analog Multi-Channel Mixing Module
High Quality Analog Mixing Circuitry
Suitable for mixing Audio, CV, and Gate Signals
3 Mixer Sections
Mixer A is a low-noise, 4-channel mixer with independent gain control for each channel
Mixer B is a low-noise, 4-channel mixer with master gain control
Bus Mix is a multi-channel mixer that mixes signals from modules utilizing the Tiptop Audio Bus Mix
Mixer A and B can be configured as either two independent 4-Channel Mixers or as a single 8-Channel Mixer
Tiptop Audio Bus Mix is a new method for mixing audio signals through the Eurorack Power Bus Board without patch cables (useful for Tiptop Drum modules which all have a Bus Mix enabled Output)
Inputs: 1, 2, 3, 4 (Mixer A); 1, 2, 3, 4 (Mixer B), Bus Mix
Outputs: Mixer A Output, Mixer B Output
Plenty of Headroom providing a smooth organic merge of dynamics and excellent separation of mixing sections and channels
Excellent Linear Response
Low Noise Operation
Clear Visual Layout
Small Footprint at only 10HP Width
