About this listing

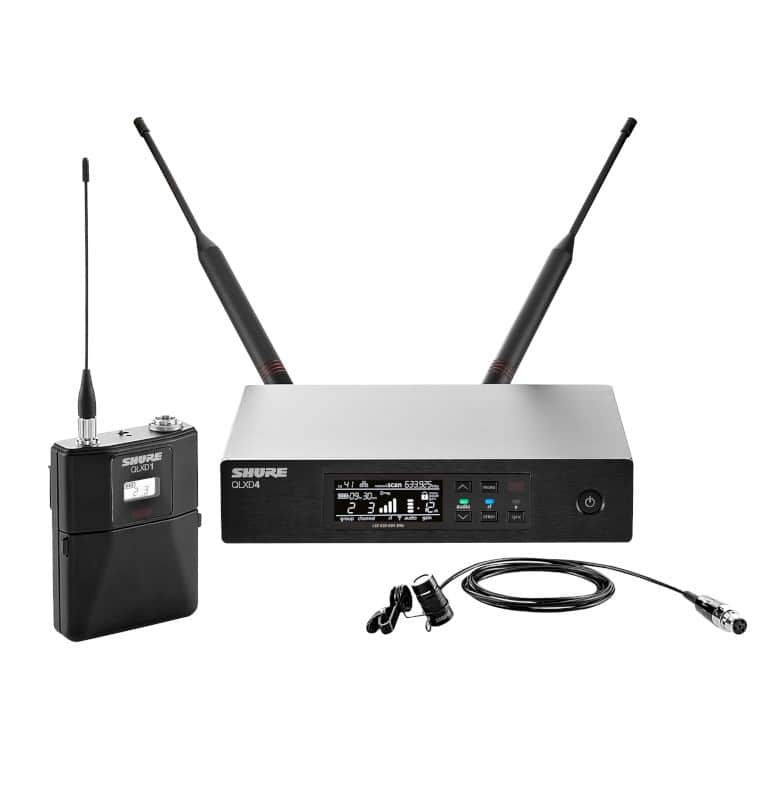

The Shure QLXD14/83 is a digital wireless lavalier microphone system that's part of Shure's QLX-D line of digital wireless systems. QLX-D systems deliver streamlined performance with transparent 24-bit digital audio. Combining professional features with simplified setup and operation, these systems are ideal for mid-size events and installations in businesses, hotels, government offices, schools, houses of worship, and live performance spaces.With an improved presence response promoting clear, intelligible vocal reproduction, the WL-183 lavalier's omnidirectional pattern is perfect for speakers, presenters, and performers in applications where surrounding noise is low and a natural, open reproduction is preferred. Featuring an innovative 90° rotatable tie clip for precise positioning, the microphone offers flexible placement options and comes with a snap-fit windscreen, single tie clip, and zippered bag for easy storage and transport. Shure QLXD14/83-G50 Includes: 1 QLXD1 Bodypack Transmitter1 QLXD4 Receiver1 WL-83 Lavalier microphone2 AA Batteries2 Half-Wave Antennas2 BNC Cables2 BNC Bulkhead AdaptersZipper BagRackmount KitUser Guide Shure QLXD14/83-G50 Features: Transparent 24-bit digital audio captures every performance detailExtended 20 Hz - 20 kHz frequency range (microphone-dependent)Over 120dB of dynamic range eliminates transmitter gain adjustmentWide 64 MHz tuning bandwidth (region-dependent)Up to 17 compatible systems per 6 MHz TV channelCompatible with Shure Wireless Workbench Control SoftwareRemote control from an iOS device via ShurePlus Channels Mobile AppAES-256 encryption for secure wireless transmissionProfessional-grade all metal constructionSubminiature lavalier design; ideal size for theater, television, broadcasting, video, film, and sound reinforcementSmall, inconspicuous mounting hardwareProfessional low-profile lavalier condenser microphonesCardioid (WL185m), Supercardioid (WL184m), and Omnidirectional (WL183m) polar pattern options8 mm shorter than original WL18X seriesHigher dynamic range with improved max SPL, self-noise, and general sound quality when compared to original WL18X series Shure QLXD14/83-G50 Specifications: RF Carrier Range: 470–937.5MHz, varies by regionWorking Range: 100 m (328 ft)Note: Actual range depends on RF signal absorption, reflection and interference.RF Tuning Step Size: 25 kHz, varies by regionImage Rejection: >70 dB, typicalRF Sensitivity: -97 dBm at 10-5 BERLatency:< 2.9 msAudio Frequency Response QLXD1: 20 Hz – 20 kHz (+/-1 dB, Note: Dependent on microphone type)Audio Dynamic Range (System Gain @ +10): >120 dB, A-weighted, typicalTotal Harmonic Distortion (-12 dBFS input, System Gain @ +10):< 0.1%System Audio Polarity: Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output.Operating Temperature Range: -18°C (0°F) to 50°C (122°F)Note: Battery characteristics may limit this range.Storage Temperature Range: -29°C (-20°F) to 74°C (165°F)Note: Battery characteristics may limit this range.QLXD1 Bodypack TransmitterMic Offset Range: 0 to 21 dB (in 3 dB steps)Battery Type: Shure SB900 Rechargeable Li-Ion or AA batteries 1.5 VBattery Runtime @ 10 mW: Shure SB900: up to 10 hours; Alkaline: up to 9 hoursDimensions (HxWxD): 3.38" × 2.57" × 0.92" (86 mm × 65 mm × 23 mm)Weight: 4.9 oz. (138 g, without batteries)Housing: Cast aluminumAudio Input:Connector: 4-pin male mini connector (TA4M)Configuration: UnbalancedImpedance: 1 MegohmMaximum Input Level (1 kHz at 1% THD): 8.5 dBV (7.5 Vpp)Preamplifier Equivalent Input Noise (EIN)(System Gain Setting = +20): -120 dBV, A-weighted, typicalRF Output:Connector: SMAAntenna Type: 1/4 waveImpedance: 50 OhmsOccupied Bandwidth:< 200 kHzModulation Type: Shure proprietary digitalPower: 1 mW or 10 mWQLXD4 Receiver:Dimensions (H×W×D): 1.63" × 7.75" × 5.94" (41mm × 197mm × 151mm)Weight: 1.71 lbs (777 g, without antennas)Housing: SteelPower requirements: 12 V DC @ 0.4 A, supplied by external power supply (tip positive)RF Input:Spurious Rejection: >80 dB, typicalConnector Type: BNCImpedance: 50 OhmsAudio Output:Gain Adjustment Range: -18 to +42 dB in 1 dB stepsConfiguration:1/4" (6.35 mm): Impedance balanced(Tip=audio, Ring=no audio, Sleeve=ground)XLR: Balanced (1=ground, 2=audio +, 3=audio-)Impedance:1/4" (6.35 mm): 100 Ohms (50 Ohms Unbalanced)XLR: 100 OhmsFull-Scale Output:1/4" (6.35 mm): +12 dBVXLR: LINE setting = +18 dBV, MIC setting = -12 dBVMic/Line Switch: 30 dB padPhantom Power Protection:1/4" (6.35 mm): YesXLR: YesNetworkingNetwork Interface: Single Port Ethernet 10/100 MbpsNetwork Addressing Capability: DHCP or Manual IP addressMaximum Ethernet Cable Length: 328 ft (100 m)WL-183Frequency Response: 50 to 17,000 HzOutput Impedance: 1800 ΩSensitivity: -40.0 dBV/PaMaximum SPL: 125.0 dB SPLSelf Noise (A-Weighted): 22.5 dB SPLPolarity: Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1Power Requirements: Regulated nominal +5 Vdc (1.5 Vdc to 10 Vdc) provided at microphone connector pin 2 relative to pin 1 of a Shure wireless microphone transmitter [1] 1 Pa = 94 dB SPL
Price$1,295
Free Shipping
Free Shipping
from Verona, WI
14-Day Return Policy
Enjoy peace of mind with your new gear
