About this listing

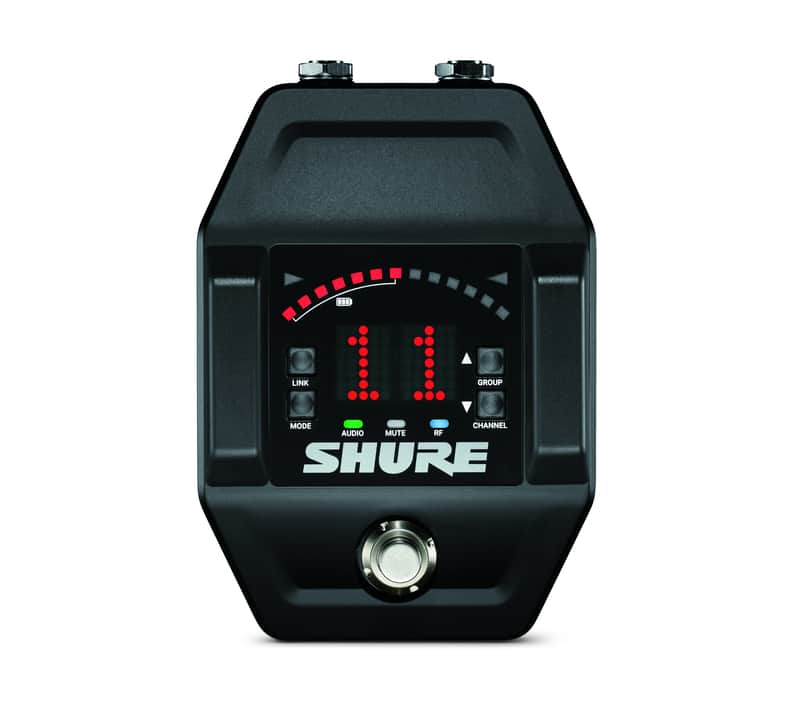

The new GLXD6+ Dual Band Guitar Pedal receiver is engineered in a rugged metal design that can be completely integrated into your pedalboard. Go wireless without compromising your tone or complicating your rig.FeaturesFor Guitar and Bass PlayersWorks with GLX-D+ Transmitters1/4" Instrument In/OutAuto Scans 2.4 and 5.8 GHz Frequencies208.5 MHz Total BandwidthBuilt-In Tuner with DisplayStandard DC Powering for Pedalboard UseFixed Faceplate AntennasUp to 4 Systems at Once Max, 100' RangeIn the Box1 PS24 Power SupplySpecifications:General- Wireless Technology: Digital 2.4 GHz/5.8 GHz- Diversity: True Digital Diversity- Max Operating Range: 100' / 30.5 m (Line of Sight)- Receiver Type: Pedalboard- Number of Audio Channels: 1- Network I/O: No- Power Requirements: AC/DC Power Adapter- Diversity: True Digital Diversity- RF Frequency Band: Z3: 2400 to 2483.5 MHz / 5725 to 5850 MHz- RF Bandwidth: 208.5 MHz- RF Channel Scanning: Auto-Scan- Max Operating Range: 100' / 30.5 m (Line of Sight)- Max Transmitters per Band: 8- Timecode Support: No- Mobile App Compatible: No- Modulation: ProprietaryAudio I/O - 1x 1/4" TS Female Unbalanced Instrument Input- 1x 1/4" TRS Female Balanced Instrument OutputReceiver- Receiver Type: Pedalboard- Mounting Options: Pedalboard (with Included Hardware)- Antenna: 2x External, Fixed (Top-Mount)- Number of Audio Channels: 1- Audio I/O: 1x 1/4" TS Female Unbalanced Instrument Input, 1x 1/4" TRS Female Balanced Instrument Output- Audio Output Level: 1/4" Output: +8.5 dBV- Phantom Power Protection: No- Frequency Response: 20 Hz to 20 kHz (Dependent on Mic)- Network I/O: No- Network Protocols: No- Word Clock I/O: No- USB/Lightning Connectivity: 1x USB-C Female (Firmware Update)- Standalone Audio Interface Capable: No- Impedance: 1/4" Output: 100 Ohms (Balanced), 50 Ohms (Unbalanced)- Approximate RF Sensitivity: -88 dBm- RF Output Power: 10 mW (EIRP, Max)- Spurious: Rejection: >35 dB- Power Requirements: AC/DC Power Adapter- AC/DC Power Adapter: 9 to 15 VDC at 400 mA, Center-Positive or Negative (Included)- Input Power: 100 to 240 VAC, 50 / 60 HzDisplay & Indicators - 1x Backlit LED (Channel, Group)- 1x Multi-Segment LED (Transmitter Battery Status)- Housing: Aluminum- Operating Temperature: 32 to 122°F / 0 to 50°C- Dimensions: 3.7 x 1.9 x 5.4" / 95 x 48 x 138 mm- Weight: 19.8 oz / 560 g
Original Price$311
$15.55 off
New Price$295.45
Free Shipping
Free Shipping
from Orchard Park, NY
30-Day Return Policy
Enjoy peace of mind with your new gear
