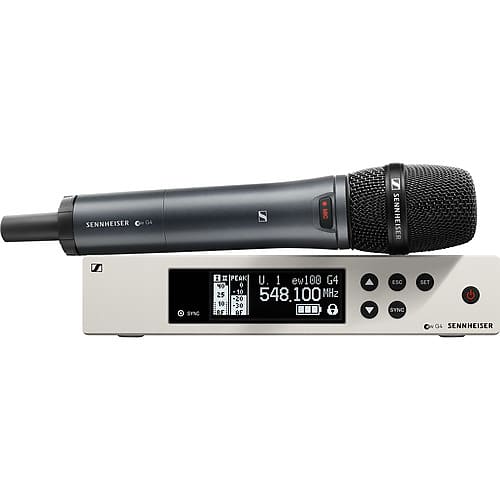

Sennheiser EW 100 G4-835-S Wireless Handheld Microphone System (Band A, 516-558 MHz)

Key Features

• For Presenters and Performers
• MMD 835 Dynamic Cardioid Mic Capsule
• Handheld Transmitter with Mute Switch
• Interchangeable Capsule Design

The Sennheiser EW 100 G4-835-Sis an easy-to-set-up rackmount wireless handheld microphone system thatbrings high-quality, reliable audio to presenters, clergy, lecturers,and performers working in business and educational settings,houses-of-worship, theaters, or on musical stages.

The EW 100G4-835-S features a true diversity, half-rack receiver housed in arugged, full-metal chassis. The receiver's auto-scan function searches awide 46 MHz UHF tuning range with 1840 selectable frequenciesavailable, seeking out a clean, interference-free channel for your audiotransmission.

This system includes an SKM 100 G4-S handheldtransmitter equipped with an interchangeable MMD 835 dynamic cardioidmicrophone capsule optimized for speech. The handheld transmitterprovides up to 8 hours of operation on two AA batteries, with a fixed30mW RF power output and a transmission range up to 330'. Up to 12wireless mics can operate simultaneously in the same space, with thereceivers linked together for fast, multi-channel frequency setup.

The EW 100 G4-835-S is backward-compatible with previous evolutionsystems. You can mix and match G4/G3/G2/G1 receivers or bodypack,handheld, and plug-on transmitters. It is also compatible with EW300/500 systems.

Lightweight Handheld Transmitter with MMD 835 Cardioid Capsule The MMD 835 dynamic capsule features a cardioid polar pattern that minimizes background noise and feedback.

Therugged, all-metal handheld transmitter features a mute function and canbe locked out to prevent accidental changes during a performance. Abacklit LCD displays essential information and provides fast menuaccess. The transmitter syncs to the receiver via infrared with a quickpress on the Sync button.

The SKM 100 G4-S is powered via two AAbatteries or a rechargeable BA 2015 Accupack battery (availableseparately). An LA 2 charging adapter (available separately) allows forrecharging the Accupack without removing it from thetransmitter requires the L 2015 quick-charging unit (availableseparately).

The transmitter's interchangeable capsule designallows you to use a variety of optional dynamic and condenser miccapsules, with pickup patterns ranging from wide omnidirectional tonarrow supercardioid capsules include the MMD 835, MMD 845, MME 865,MMD 935, MMD 945, and MMD 42.

Easy-to-Operate Receiver with True-Diversity Reception Therobust, metal EM 100 receiver offers a high-contrast, black and whiteLCD. The display uses a streamlined menu system with a dedicated Escapebutton for quick menu navigation and shows battery status of theassociated transmitter.

The system features 20 fixed frequencybanks with up to 12 compatible frequency presets and 1 user bank with upto 12 user-programmable frequencies.

To prevent interference, theEM 100 receiver's true-diversity reception compares incoming signals ontwo independent receiver circuits to ensure optimal RF quality. Toensure crystal clear audio, Sennheiser's proprietary HDX compandertechnology maximizes the microphone's signal-to-noise ratio, whileavoiding RF noise.

The built-in equalizer enables you to changethe frequency response of the output signal; you can reduce the bassrange and boost the treble range. The receiver also offers an adjustableoutput level range of 48 dB to match the audio input of your mixingboard or PA system. Musicians will appreciate the built-in guitar tuner.

Theback panel houses a balanced XLR output as well as an unbalanced 1/4"output. A kit is included for rackmount installation. The unit comeswith a universal power supply and EU, US, UK, Korea, Australia, andChina adapters.

Fast Multi-Channel Setup for Expanded System Tosimplify and speed up your workflow, two RJ10 data networking portsallow you to daisy-chain up to 12 receivers and quickly perform afrequency setup for the entire multi-channel system via the Easy Setupfunction.

If you assign the frequencies manually, you canexpand the setup to accommodate a maximum of 20 receivers. An RJ10 cableis included.

Enhance the Performance of Your System Thedetachable antennas with BNC sockets allow you to create a largersystem using up to four EM 100 receivers connected to a single pair ofremote antennas. This setup requires the ASA 214 active antenna splitter(available separately).

Adding a pair of A 1031-Uomnidirectional antennas or a pair of A 2003 UHF directional antennasincreases the range of your system and offers increased protectionagainst interference.

Add Functionality to Your System Sennheiseroffers a bodypack transmitter with variety of lavalier and headsetmicrophone options to adapt your EW system as your needs evolve.

• The discrete ME 2-II and MKE 2 lavalier mics provide exceptional clarity in spoken-word applications.
• The lightweight ME 3-II is a comfortable, durable headset microphone for active presentations.
• The Ci 1 instrument cable lets you connect the bodypack transmitter to a guitar or bass.

UPC: 615104308725 In the Box

• Sennheiser EW 100 G4-835-S Wireless Handheld Microphone System with MMD 835 Capsule (A1: 470 to 516 MHz)
• Sennheiser EM 100 G4 Wireless Receiver (A1: 470 to 516 MHz)
• Sennheiser SKM 100 G4-S Handheld Wireless Microphone Transmitter with Mute Switch, No Mic Capsule (A1: 470 to 516 MHz)
• Sennheiser MMD 835 Cardioid Dynamic Capsule for Handheld Transmitters (Black)
• Sennheiser MZQ1 Clip for SKM Wireless Handheld Microphones
• 2 x Rod Antennas
• RJ10 Cable
• Sennheiser NT 12-5-CW Universal Power Supply for XSW and EW G4 100 Series Receivers
• 2 x AA Batteries
• Rackmount Kit
• Limited 2-Year Warranty
