About this listing

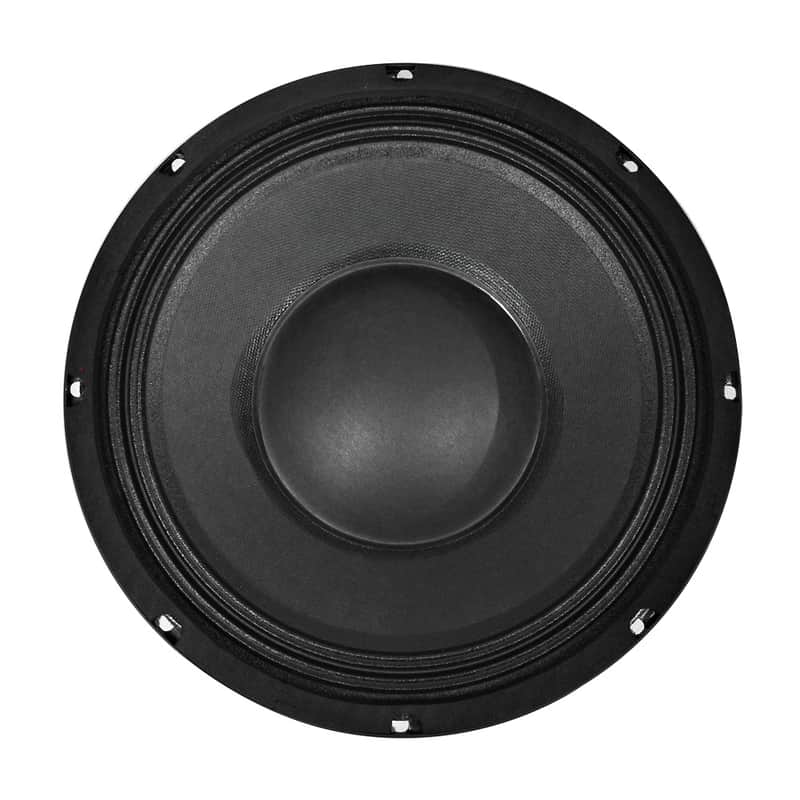

When your subwoofer driver gives up the ghost mid-gig or you're building a custom low-end rig, the T10Sub gets you back to moving air without breaking the bank. This 10-inch replacement driver isn't trying to be fancy — it's built to handle the grunt work of delivering solid bass in real-world situations where reliability matters more than boutique specs.
The pressed steel frame and 50-ounce magnet give you the rigid platform you need for tight, controlled bass response. That 2-inch voice coil can handle 200 watts RMS all night long, with 400-watt peaks when things get loud. The frequency response runs from 30 Hz up to 500 Hz, so you're getting the kick drum fundamentals and bass guitar punch that makes a mix feel complete, not just the one-note boom some cheap drivers deliver.
What this driver does well is fit where you need it to fit. Standard 9¾-inch cutout, eight mounting slots that line up with most cabinet designs, and 8-ohm impedance that plays nice with your existing amp setup. The paper cone with cloth surround strikes a good balance between durability and natural sound — it won't fall apart after a summer of outdoor gigs, but it won't sound like cardboard either.
This isn't a driver that's going to shake the foundation or compete with a wall of 18s. It's a workhorse 10-inch that handles typical live sound duties without drama. Whether you're fixing a busted driver in the church sound system or building a compact sub array for your acoustic duo, it does what a 10-inch sub driver should do.
Bottom line: If you need a reliable 10-inch subwoofer driver that handles standard power levels and fits standard cabinets without breaking your budget, the T10Sub delivers honest performance for repair jobs and custom builds.
Technical Specifications
Power (RMS): 200 Watts
Power (Peak): 400 Watts
Driver Size: 10 Inch
Frequency Response: 30 Hz - 500 Hz
Sensitivity: 94 dB
Impedance: 8 Ohms
Voice Coil: 2 Inch
Magnet Size: 50 oz
Cone Material: Paper with Cloth Edge
Frame Construction: Pressed Steel
Overall Diameter: 10¼ inches
Cutout Diameter: 9¾ inches
Overall Depth: 5 inches
Mounting Depth: 4½ inches
Mounting Slots: 8 slots, ¼ inch
Weight: 8.4 lbs
Warranty: One Year
Frequently Asked Questions
Will this drop into my existing 10-inch sub cabinet?
The T10Sub fits standard 10-inch subwoofer cabinets with 9¾-inch cutouts and at least 5 inches of internal depth. The eight mounting slots align with most cabinet designs, and the 8-ohm impedance matches common configurations. Measure your cutout and depth before ordering — those dimensions need to match exactly.
What amp power should I run with this driver?
This driver handles 200 watts RMS continuously, so pair it with an amp rated 150-300 watts RMS at 8 ohms. The 94 dB sensitivity means it'll get reasonably loud even with modest power, but don't expect miracles from a 50-watt amp. Match your amplifier to your venue size and expected output levels.
How does a 10-inch compare to larger subwoofer drivers for bass response?
The T10Sub reaches 30 Hz, which covers kick drums and bass guitar fundamentals fine for most live applications. Larger drivers typically move more air and go slightly deeper, but if you're dealing with space or weight constraints, this 10-inch delivers solid bass response without the bulk of 12s or 15s.
Can I wire multiple drivers together in one cabinet?
Yes, you can wire multiple T10Sub drivers in parallel (4-ohm load) or series (16-ohm load) depending on your amp's requirements. Make sure your cabinet has adequate internal volume and your amp can handle the impedance load. Two drivers don't automatically mean twice the output — cabinet design and amplifier power matter just as much.
