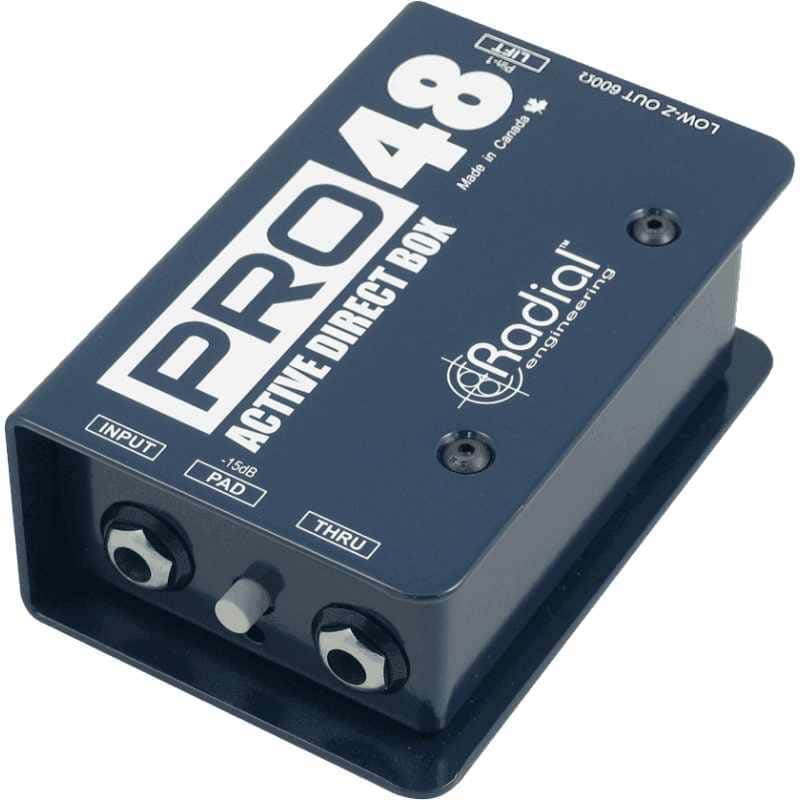

The Radial Pro48 is a high-performance 48V phantom powered active direct box designed specifically for today's higher output instruments.
The Pro48's inovative digital switching power supply significantly increases headroom and allows for less distortion while yielding a smooth, linear response extending from 20Hz to well above 100kHz resulting in natural, uncolored signal transfer. This superior performance makes the Pro48 an ideal candidate for use with today's battery powered active basses and acoustic guitars that tend to overload other direct boxes.
The compact Pro48 is built road-ready with 14 gauge steel in our unique book-end™ design that provides protective zones around the switches and connectors. The internal welded I-beam construction assures outside stress will not torque the PC board thus assuring longer product life.
Radial Pro48 Features:
- High resolution active direct box
- Increased dynamic range and headroom
- 48V phantom powered with digital switching
- Compact, rugged book-end design
- Ideal for active guitars and basses
Radial Pro48 Specifications:
- Circuit type: Active with proprietary phantom powered switching supply
- Input: ¼" - 220 kOhms
- Input pad: -15 dB
- Output: XLR-M - 600 Ohm, pin-2 hot
- Thruput: ¼" - w/mono merge function
- Frequency response: 20 z to 40 kHz
- Linear performance: +/- 0.12 dB 20 Hz to 20 kHz
- Power: 48V phantom w/LED indicator
- Construction: 14 gauge steel, baked enamel finish
- Size: 4.25"d x 2.75"w x 2.75"h (107 x 70 x 43mm)
- Weight: 1.1 lb (0.50 kg)
