About this listing

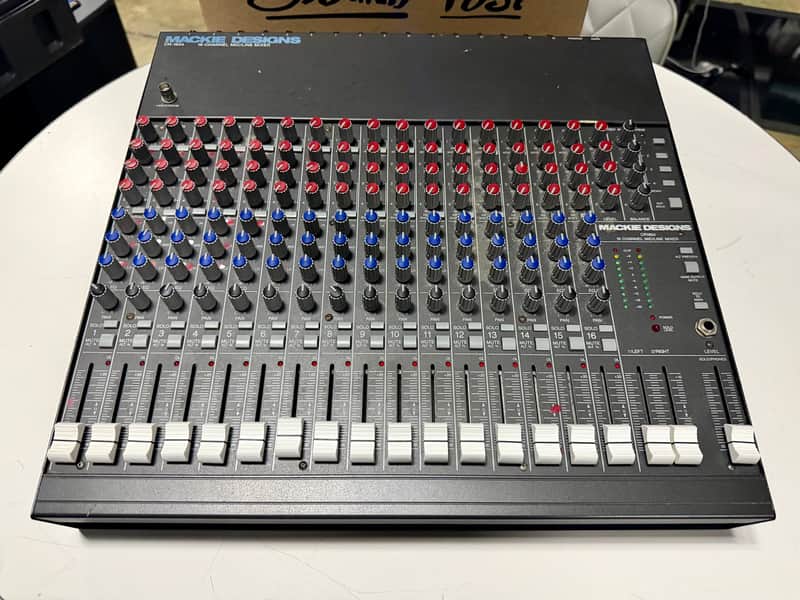

Very good condition On showroom floor Ships same day - paid by 2pm est Comes with 90 day warranty Ships same day - paid by 2pm est Free shipping in US excluding Hawaii and Alaska Mono Inputs: 16 channels total.Stock Connectors: 6 studio-grade discrete XLR mic preamps and 10 unbalanced 1/4" line inputs.XLR-10 Extension Option: Can be upgraded via the back patchbay to feature a full block of 16 XLR mic inputs.Auxiliary Sends: 4 post/pre-fader selectable Aux Sends per channel.Auxiliary Returns: 4 stereo returns with master level controls.Busing/Routing: Left-Right main output bus along with the unique "Alt 3-4" sub-group stereo routing option.Channel Inserts: 1/4" TRS insert jack per channel for patching in outboard processing. [1, 2, 3]Audio Performance SpecsFrequency Response: 20 Hz to 40 kHz (±1 dB).Total Harmonic Distortion (THD): Under 0.025% (20 Hz to 20 kHz at +14 dBu).Equivalent Input Noise (E.I.N.): -129 dBm (with a 150 Ω source termination).Maximum Output Level: +28 dBu balanced, +22 dBu unbalanced.Channel Equalization (3-Band Fixed)High Shelving: ±15 dB centered at 12 kHz.Mid Peaking: ±12 dB centered at 2.5 kHz.Low Shelving: ±15 dB centered at 80 Hz. [1]Physical Layout & Form FactorFaders: 50mm log-taper travel faders.Metering: Dual 12-segment high-resolution master LED ladders.Dimensions: Standard 19" wide rackmount footprint (7U spaces with rotatable Rotopod connection box).Chassis Construction: Heavy-duty powder-coated all-steel frame. [1, 2, 3]
Original Price$319
$69 price drop
New Price$250
Free Shipping
Free Shipping
from Rossville, GA
