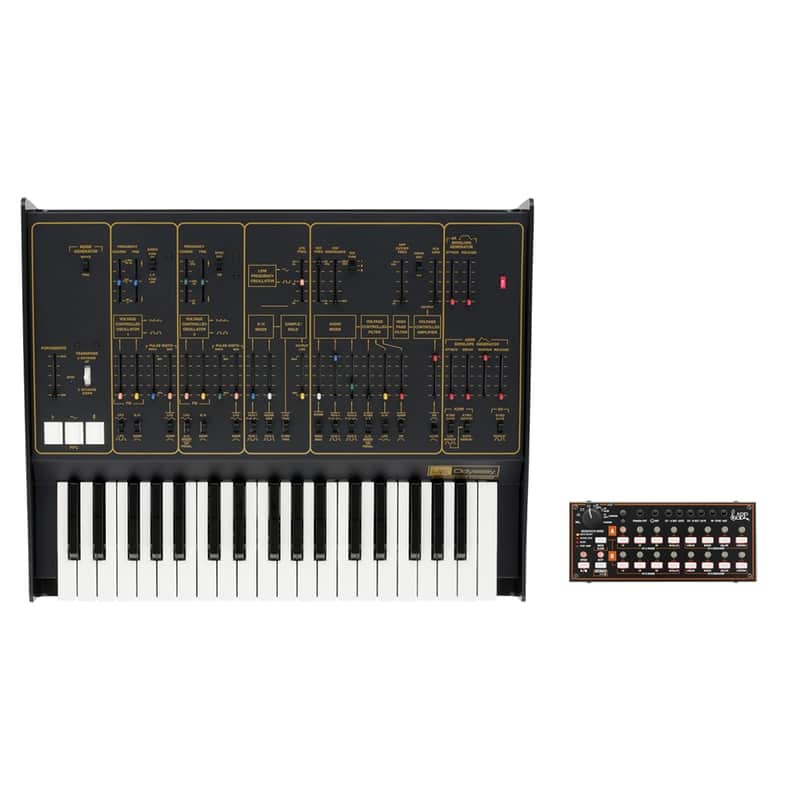

Korg Limited Edition ARP Odyssey FSQ Rev2 with SQ-1 Sequencer Bundle

Assembled in America, and available to the world once again.

The long-awaited full-size ARP ODYSSEY is now available in a limited edition.

The revival of the ARP Odyssey originated from a desire to reconstruct a legendary synthesizer of the 1970s, faithfully reproducing its original analog form while combining respect for history with an update for today's music production environment; it first took shape as the ARP ODYSSEY, completely analog but in a more compact 86%-sized unit.

KORG's next move is an even more faithful recreation of the original ARP Odyssey: it's the full-sized ARP ODYSSEY FS. With a standard keyboard and a body that emanates a sense of solidity, it delivers great playability and a persuasive stage presence. Just like its original version, the instrument is assembled in the United States, faithfully carrying on the quality, sound, and spirit of the original. Choose from three designs: Rev1, Rev2, or Rev3. Only a small number of each is being produced. Don't miss your chance to obtain a full-sized ARP ODYSSEY – an instrument with decades of soul.

A full-sized ARP ODYSSEY with a standard keyboard

As an alternative to the 86% size ARP ODYSSEY with its compact slim keyboard, we've created the ARP ODYSSEY FS, a long-awaited full-size model with a standard keyboard. Featuring a spacious panel layout with faders that are smooth to operate, and a standard-sized keyboard for excellent playability, it's just what the synthesizer lover or keyboardist has been waiting for. Most of all, its weight and essence are the precise image of the original ARP Odyssey. With analog sound that has already established a firm reputation, it is fair to say that this is a true resurrection of the ARP ODYSSEY. Now you can obtain a full-sized ARP ODYSSEY that's perfect in every area including sound, stability, appearance, and size, but with the reliability of a brand new synth.

Carefully assembled in the USA to capture the original spirit

The ARP ODYSEY FS is shipped worldwide following its assembly in New York, USA. Skillfully and carefully assembled by a small number of experienced workers, the ARP ODYSSEY FS is then aged, and finally undergoes repeated testing, ensuring the highest level of product quality as befitting this full-sized instrument. The soul of the ARP Odyssey that emerged here forty years ago is now being perfectly resurrected with its analog circuitry and build quality.

A full lineup of all three design generations

All models of the original ARP Odyssey, each representing its own era, are now available as full-sized instruments. Each full-sized unit has been designed with the greatest respect to the details and individual parts of the original: the white-paneled Rev1 (Model 2000) produced in 1972–1974, the Rev2 (Model 2810–2813) produced in 1975–1976 with its black panel and gold silk-screening, and the Rev3 (Model 2820–2823) produced in 1978–1981 that featured an iconic black panel and orange silk-screening.

• Keyboard:  37-note (Standard key or Full size key, No velocity sensitivity, No aftertouch)
• Maximum Polyphony: 2 voices for duophonic; normally monophonic

Controllers

• Transpose Positions: 2 octaves down, normal, 2 octave up
• Proportional Pitch: Control b (Pitch down) Pad: about -2 / 3 octave
• - (Modulation) Pad \ # (Pitch-up) Pad: about +2 / 3 octave
• Noise Generator: Noise Spectrum Types (white and pink)

Portamento

• Maximum Speed: about 0.01 msec./oct
• Minimum Speed: about 1.5 sec./oct

VCO (Voltage Controlled Oscillator)

• Waveforms: Sawtooth, Square, Pluse (Dynamic Pluse)
• Frequency Range: VCO-1 in low freq. mode, 0.2 Hz – 20 Hz: VCO-1 and VCO-2 (audio range) about 20 Hz – 20 kHz
• Warm Up Drift: 1/30 semitone from turn on max
• Pulse Width: 50 % – 5 %
• Pulse Width Modulation: ADSR, +45 %, LFO, +15 %
• Voltage Controlled Response: 1 V/oct

Maximum Frequency Shifts

• LFO sin wave, +1/2 oct.
• LFO square wave, +1.5 oct.
• ADSR, +9 oct.
• S/H, +2 oct.

VCF (Voltage Controlled Filter)

• Types: Low pass (I: 12 dB/oct., II III: 24 dB/oct.)
• Frequency Range: 16 Hz - 16 kHz
• Maximum Usable Q: 30
• Resonance: 1/2 - self oscillate

VCA (Voltage Controlled Amplifier)

• Dynamic Range: 80 dB

Ring Modulator

• Type: Digital
• Input Signal: VCO-1, VCO-2 (square wave)

Sample & Hold

• Command Sources: Keyboard or LFO trigger
• Sampled Signals: VCO-1 sawtooth wave and square wave, VCO-2 square wave and pink noise

ADSR Envelope Generator

• Attack Time 5 msec. - 5 sec.
• Decay Time 10 msec. - 8 sec.
• Sustain Level 0 - 100 % or Peak
• Release Time 15 msec. - 10 sec.

AR Envelope Generator

• Attack Time 5 msec. - 5 sec.
• Release Time 10 msec. - 8 sec.

Control Input Jacks

• Pedal: 6.3 mm monaural phone jack
• Portamento Foot Switch: 6.3 mm monaural phone jack

Audio Output Jacks

LOW

• Connector: 6.3 mm monaural phone jack
• Maximum Output Level: -20 dBu@ 10 k ohm load
• Output Impedance: 10 k ohm

Audio Output Jacks

HIGH

• Connector: XLR connector
• Maximum Output Level: +4 dBu@ 1 k ohm load
• Output Impedance: 330 ohm

Headphones Jack

• Connector: 6.3 mm stereo phone jack
• Maximum Output Level: 50 mW + 50 mW@ 33 ohm load
• Output Impedance: 10 ohm

External Audio Input (Ext Audio Input) Jack

• Connector: 6.3 mm monaural phone jack
• Maximum Input Level: -10 dBu
• Input Impedance; 22 k ohm

CV IN/OUT Jacks

Keyboard CV (IN/OUT): 1 V/oct.
Connector: 3.5 mm monaural phone jack

GATE IN/OUT Jacks

• GATE IN: +3 V (minimum)
• GATE OUT: +10 V, key down; 0 V all keys up
• Connector: 3.5 mm monaural phone jack
