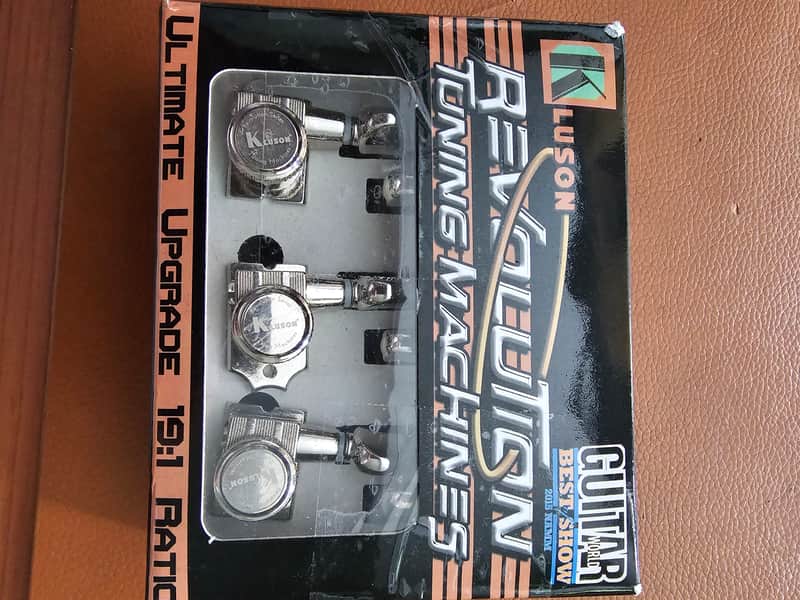

Kluson KFTL-3805CL Revolution 6-in-Line F-Mount Locking Tuners

Introducing the NEW Kluson Revolution F-mount 19:1 high ratio LOCKING tuning machine. These state of the art, lightweight, diecast tuners are designed to directly retrofit the stamped F tuners that Fender uses currently on all CBS Fender era reissues. Uses the offset 2 screw mount with push in 10 mm bushings. All mounting hardware is included.

Important Specs and Dimensions:

String Post Diameter = 6mm
String Post Overall Height = 1 in.
String thru Hole Ctr Height = 27/32 in. (21.5mm)
Bushing O.D. = 10mm
Bushing Type = Push-in
Orientation = for Right handed Bass side
Locking Feature = Locking Knob on back of housing
