About this listing

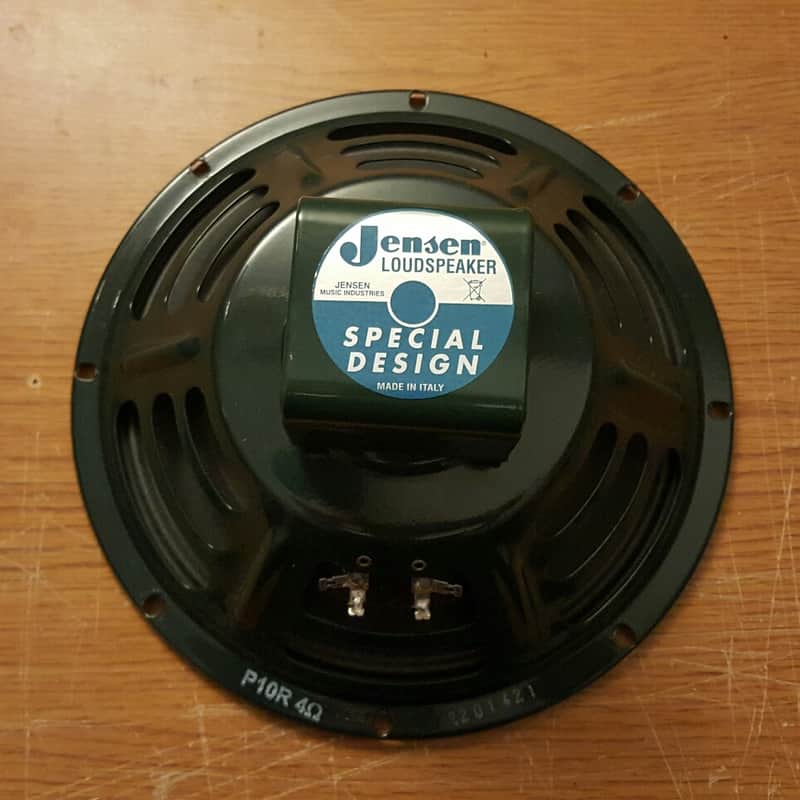

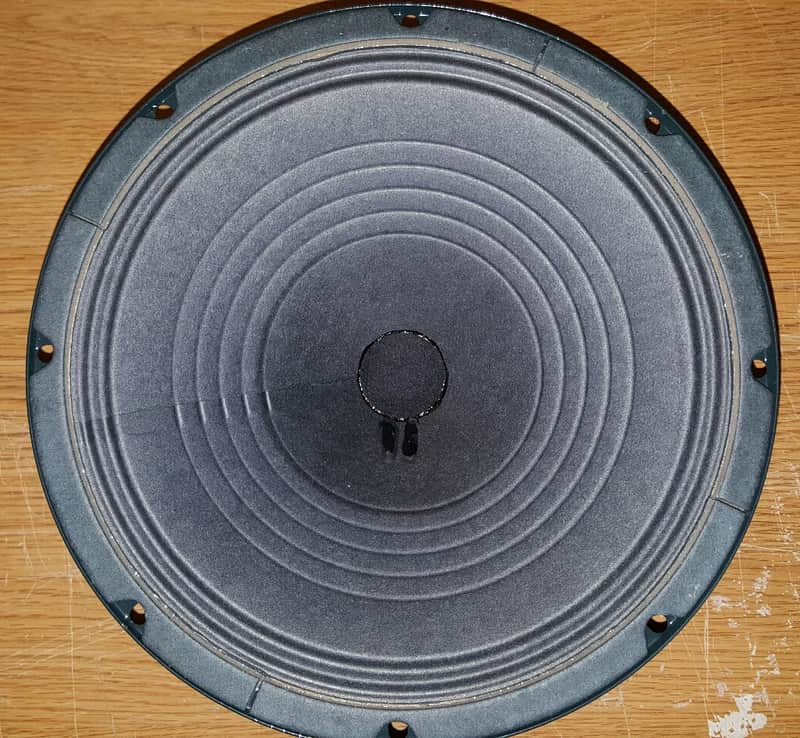

The P10R is very important in the history of Jensen speakers. Its shimmering, yet throaty and vibrant tone is one of the signatures of the Tweed era and inspired the start-up of the British tones. It was the first speaker reissued by Jensen, presented to a restricted panel of partners at the 1999 Summer NAMM show. The P10R is the speaker that contributed to the magical tone of the 4x10 Bassman® Tweed amps, the 4x10 Super Tweed Amps and the equally mythical 3x10 Bandmaster® amps.
Guitarist Description: Rich, warm tone. Accentuates the higher frequencies in sparkling detail.
Lows: Loose
Mids: Firm
Highs: Smooth
Overdrive: Crunchy
Product MeasurementsDiameter: 10 in.Voice Coil Diameter: 1 in.Depth: 4.8031 in.Outer Diameter: 10.1969 in.Inner Diameter: 9.0944 in.Mounting Hole Bolt Circle Diameter: 9.6456 in.Magnet Assembly Depth: 1.9488 in.Mounting Hole Diameter: 0.2559 in.Nominal Overall Diameter: 259.00 mmNominal Voice Coil Diameter: 25.00 mmFlux Density: 0.96 TVoice Coil Winding Depth: 8.00 mmMagnetic Gap Depth: 6.00 mmMagnet Type: AlnicoVoice Coil Winding Type: CopperVoice Coil Former: KaptonCone Material: PaperSurround Material: Integrated PaperDust Dome Material: FeltBasket Material: Pressed Sheet SteelSurround Treatment: NoVoice Coil DC Resistance (Re): 3.60 ΩResonance Frequency (ƒS): 99.00 HzMechanical Q Factor (QMS): 23.80Total Q Factor (QTS): 1.37Mechanical Moving Mass (MMS): 13.70 gMechanical Compliance (CMS): 189.00 µm/NForce Factor (BxL): 4.60 Wb/mEquivalent Acoustic Volume (VAS): 29.00 litersLinear Displacement, maximum (XMAX): 0.80 mmReference Efficiency (nO): 1.85 %Diaphragm Area (SD): 330.00 cm2Losses Electrical Resistance (RES): 59.20 ΩVoice Coil Inductance @ 1 kHZ (LE): 0.35 mHRated Power: 25.00 WMusical Power: 50.00 WSensitivity @ 1W, 1m: 95.10 dB
