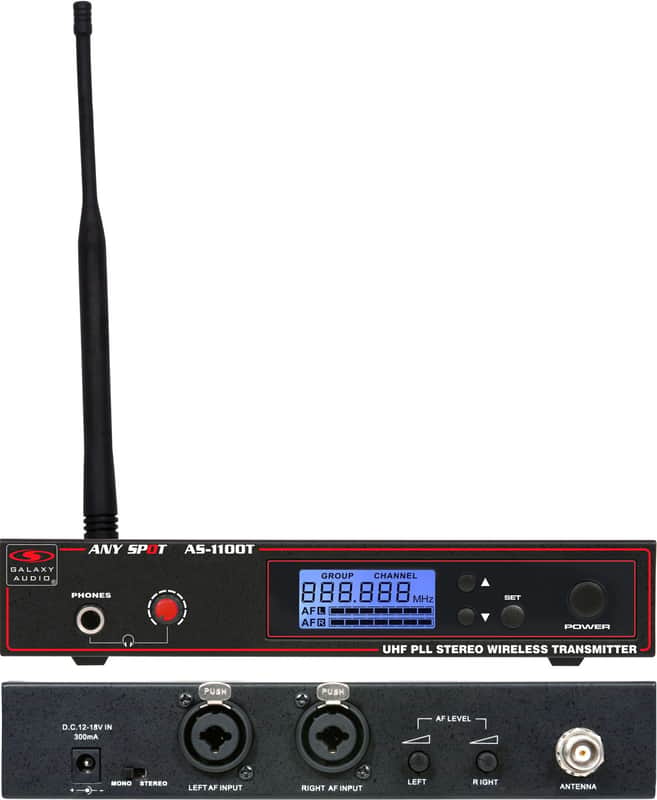

Galaxy Audio AS-1100 Any Spot Wireless Personal Monitor System - L Band (655-679 MHz)

Galaxy Audio AS-1100 Any Spot Wireless Monitoring System; L (655-679 MHz)

The AS-1100 packs an amazing punch. The transmitter has stereo XLR/¼" inputs, headphone output, and LCD display which displays the channel and input level. The Receiver has an LCD with channel, battery level, and RF/AF indicator. The AS-1100 is perfect for anyone looking for their first system or to upgrade to the next level.



Features

• Single Rack Mount Included
• 300' Range
• UHF Frequency
• 120 Selectable Channels
• Ear Buds

Specifications Frequency Range and Transmitter Output Level Band

UHF

Frequency Range

CODE D 584 MHZ - 607 MHZ, CODE L 655 MHZ - 679 MHZ

Transmitter Output Level

10dBm

Operating Range

Under Typical Conditions 300' (92m)

Note

actual range depends on RF signal absorption, reflection, interference, and battery characteristics

Audio Frequency Response

+/-3dB 60Hz~16KHz

Total Harmonic Distortion

+/-30KHz deviation 1KHz tone <1%

Dynamic Range

>90dB A-weighted

Operating Temperature

Range 14ºF to 122ºF (-10 Cº to +50 Cº)
