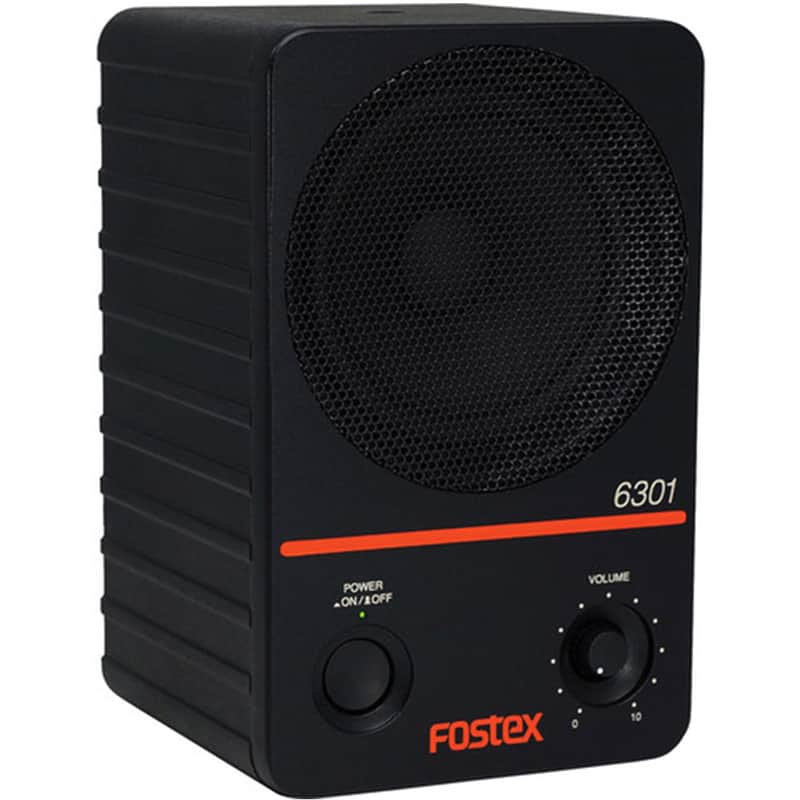

PRICE IS FOR ONE MONITOR ONLYThe latest series of the 6301, a compact active monitor speaker that has been used for more than 30 years in broadcast facilities and small-scale loudspeakers. The lineup includes four models with different input specifications.Monitor speaker with built-in amplifier for use in various audio monitoring and small-scale loudspeaker applications.Cone-type 10cm full-range speakers are used to achieve stable sound.Built-in power amplifier with a rated output of 20W delivers stable sound even in a small package.All models are equipped with a Class-D (PWM) power amplifier. Compared to the previous model (6301B-H series), power consumption has been reduced while the rated output has been increased from 10W to 20W. The eco-friendly design includes a standby mode (compliant with Europe’s ErP Directive).In the standby mode, power consumption is reduced to 0.5W or less after the input signal level remains below a certain level for about 25 minutes. When the input signal level exceeds a certain level, the unit instantly returns from standby mode to normal mode.The playback frequency bandwidth is extended from 80 to 13,000 Hz in the previous model to 70 to 15,000 Hz.The power cable is an inlet type.The same width and height as the previous model (6301B-H series) are adopted, allowing replacement without changing the installation location.Robust die-cast aluminum enclosure is used.Wall mounting and angle adjustment are possible by using the optional EB-6301 wall mounting angle.Speaker section:Enclosure type: Closed type (Material: Aluminum die-casting)Unit: Cone type 10cm full range unit x 1Frequency response: 70Hz to 15kHzSound Pressure Level: 85dB/W(1m)Maximum Sound Pressure Level: 98dBAmplifier section:Rated output: 20WAnalog input: Unbalanced: Φ6.3mm (1/4″) TS phone, input sensitivity -14dBV (0.2Vr.m.s.), input impedance 10kΩ min.Balanced: XLR-3-31 type, input sensitivity: +4dBu (1.2Vr.m.s.), input impedance 10kΩ min.T.H.D.: 0.05% (at 1kHz/1W output)Residual noise: -70dBVGuaranteed Operating Environment:Temperature: -10°C to +50°CLevel of humidity: Within 90%General:External Dimensions: 120(W)×189(H)×120(D) mm (including maximum projection)Weight: 2.23kgPower requirement: AC100-230V (50/60Hz)Power consumption: 10W (in standby mode: 0.5W or less / compliant with European ErP Directive)Accessories: Power cable (2m)Prices and availability subject to change without notice. Ships out from our Midwest Distribution.
Price$449.99
