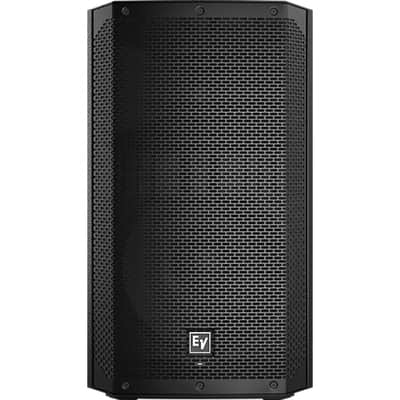

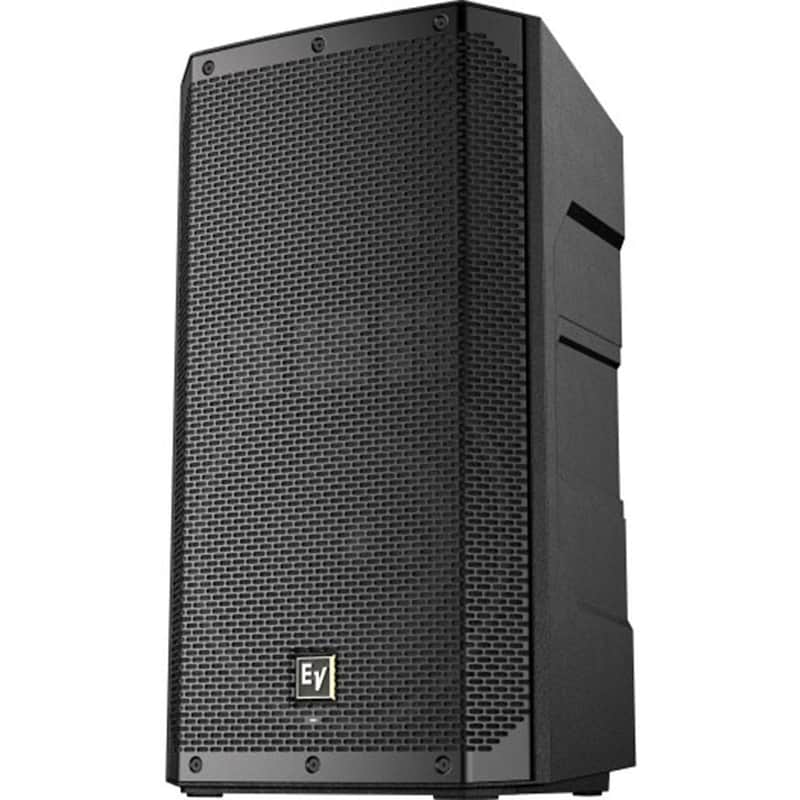

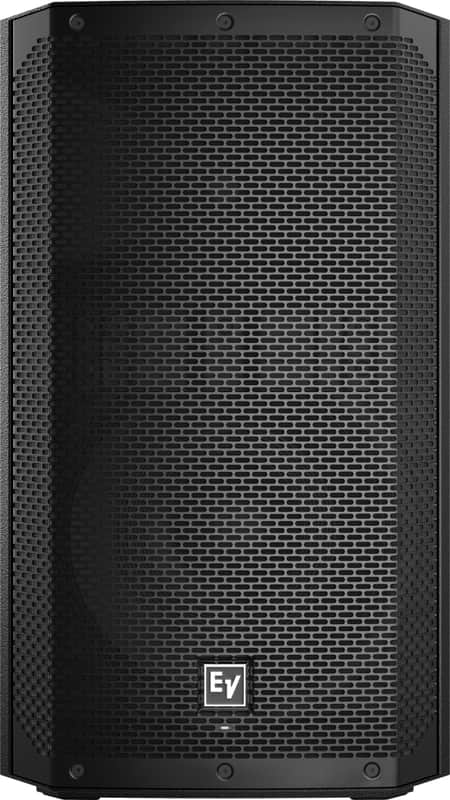

The ELX200-12P 12” Powered Loudspeaker features a 1200W high-efficiency Class D power amp with integrated QuickSmartDSP, and delivers up to 130dB SPL utilizing a 12” EVS-12M woofer coupled with a DH-1C 1” titanium compression driver. Easy setup and monitoring comes via four presets (Music, Live, Speech, Club), sub/top system-match crossovers, 3-band EQ, five user-programmable presets (Store and Recall settings), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure. It’s ideal for portable and installed applications, with lightweight and durable polypropylene enclosures, three M10 threaded mounting points, and the proven ZLX handle design for easy lifting. The new QuickSmart Mobile wireless control and monitoring application, using Bluetooth® Low Energy (BTLE) technology, allows control and configuration/monitoring of up to six ELX200 loudspeakers simultaneously. Receive alerts when your system is being overdriven, and control your system while in front of your speakers.
Features- 1200W powered 2-way loudspeaker
- EVS-12M 12" woofer & 1" HF titanium compression driver
- 90° x 60° coverage
- Lightweight, 34 lb. cabinet
- 130dB peak SPL
- Color: Black
- Connector Type: (1) Stereo RCA Input, (2) XLR/TRS combo jack and (1) XLR
- Coverage (Nominal -6 dB) H: 90°
- Coverage (Nominal -6 dB) V: 60°
- Crossover Frequency: 1700Hz
- Enclosure Material: Polypropylene Composite
- Frequency Range (-10 dB): 51 Hz – 20 kHz
- Frequency Response (-3 dB): 57 Hz – 16 kHz
- Grill: 18 AWG steel with powdercoat
- HF Transducer: DH-1C 1" titanium compression driver
- LF Transducer: EVS-12M 300 mm (12")
- Max. SPL/1m (calc): 130dB
- Power Consumption: 100 - 240 V~, 50 - 60 Hz, 1.8A
- Power Rating: 1200W
- Powered or Passive: Powered
- Shipping Weight: 39.02 lbs (17.7 kg)
- Speaker Type: Full-Range
- Suspension: (3) M10 suspension points
- Net Weight: 34.39 lbs (15.6 kg)
- Dimensions (HxWxD): 24.76" x 14.29" x 13.54" (629 x 363 x 344 mm)
