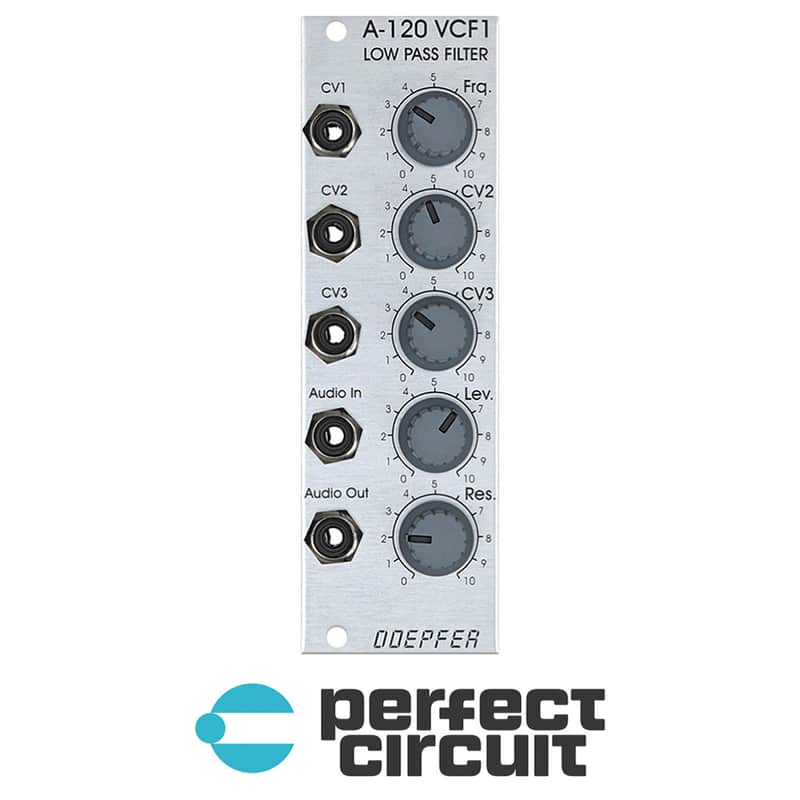

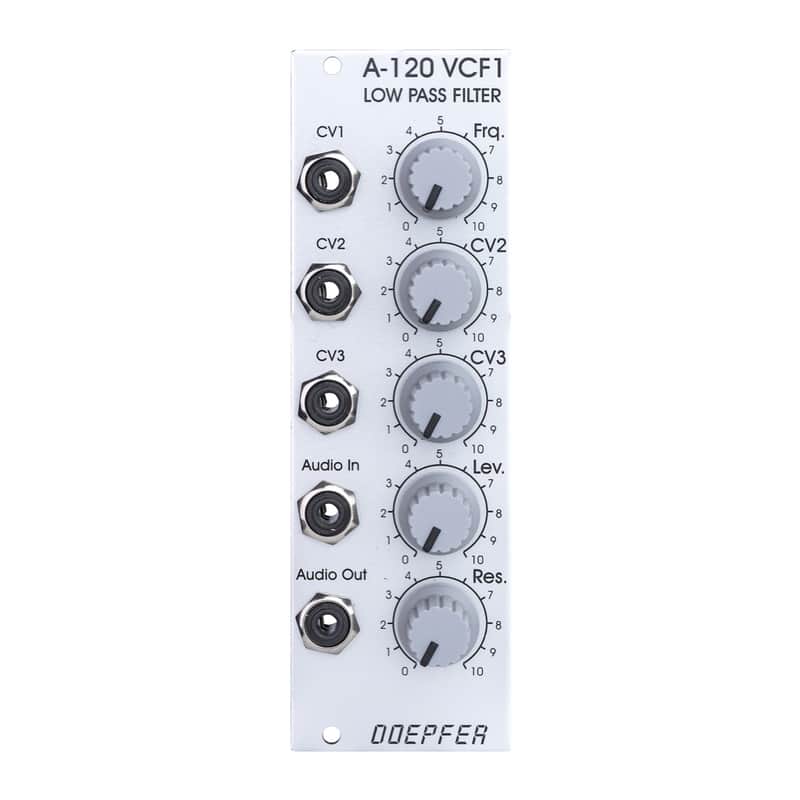

Module A-120 is a voltage controlled low-pass filter, which filters out the higher parts of the sound spectrum, and lets lower frequencies pass through. The Cut-Off Frequency determines the point at which filtering takes effect. You can control this manually, or by voltage control (filter modulation, for instance by an LFO). Three CV inputs are available, and the sum of the voltages from these affects the filter cut-off.
The module is based on a so-called "transistor ladder" design, with a cut-off slope of -24 dB/octave, as in various Moog synthesizers. That's what gives it its classic, legendary Moog sound.
Resonance (or Emphasis) is adjustable all the way up to self-oscillation - in which case the filter behaves like a sine wave oscillator.
Features
Moog Style Trasistor Ladder Filter
-24dB/Octave filter cutoff slope
Classic and legendary sound
Resonance is adjustable up to self-oscillation which causes the filter to behave like a sine wave oscillator
Price$138
Free Shipping
Free Shipping
from Burbank, CA
30-Day Return Policy
Enjoy peace of mind with your new gear
