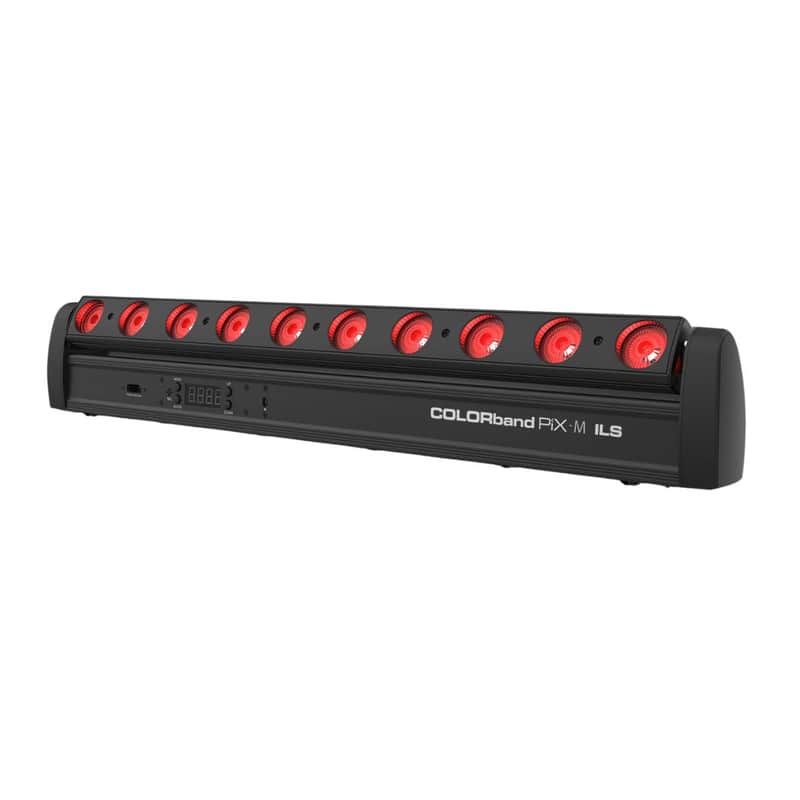

Chauvet COLORBand Pix M USB Sweeping LED Linear Wash Light

The COLORband PiX-M USB from Chauvet DJ is a moving LED strip light with individual pixel control for pixel mapping effects. This strip light is a versatile wall-wash fixture that can create dynamic sweeping, chase, animation and blinder effects thanks to its rotating base, pixel-mapping capabilities, and the ability to control each of its 10 high-power, tri-color LEDs separately.

Built-in motors allow you to angle the light where itâs needed. COLORband Pix-M USB features D-Fi USB compatibility for wireless master/slave or DMX control but you can also access dramatic, pre-built automated programs with or without DMX. Wireless, non-DMX operation is also available with the optional IRC-6 remote (not included).

• COLORband PiX-M USB
• Power cord
• Hanging bracket with mounting hardware

• Moving LED strip light creates dynamic sweeping effects and functions as a pixel mapping effect, blinder or wall-washer
• D-Fi USB compatibility for wireless master/slave or DMX control
• Angle the light where itâs needed using the built-in motors
• Create eye-catching animations and video effects with individual LED control
• Access dramatic, pre-built automated programs with or without DMX
• Flexible control options with onboard 3 and 5-pin DMXconnectors
• Achieve flicker-free video operation with high-frequency LED dimming
• Save time running cables and extension cords by power linking multiple units
• powerCON®-compatible power input/output connections for power linking

• DMX Channels: 5, 6, 8, 10, 17, 32 or 36
• DMX Connectors: 3- and 5-pin XLR
• Light Source: 10 LEDs (tri-color RGB) 9 W, (2 A), 50,000 hours life expectancy
• Strobe Rate: 0 to 25 Hz
• Beam Angle: 20°
• Field Angle: 34°
• Illuminance: 6,120 lux @ 2 m
• Power Linking:
• 5 units @ 120 V
• 9 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current:
• 108 W, 1.5 A @ 120 V, 60 Hz
• 105 W, 1 A @ 230 V, 50 Hz
• Weight: 9.6 lb (4.4 kg)
• Size: 31 x 2.6 x 4.8 in (785 x 67 x 123 mm)
• Approvals: CE
• Tilt: 245°
• Optional Controllers: IRC-6, D-Fi USB (not included)
