Overview

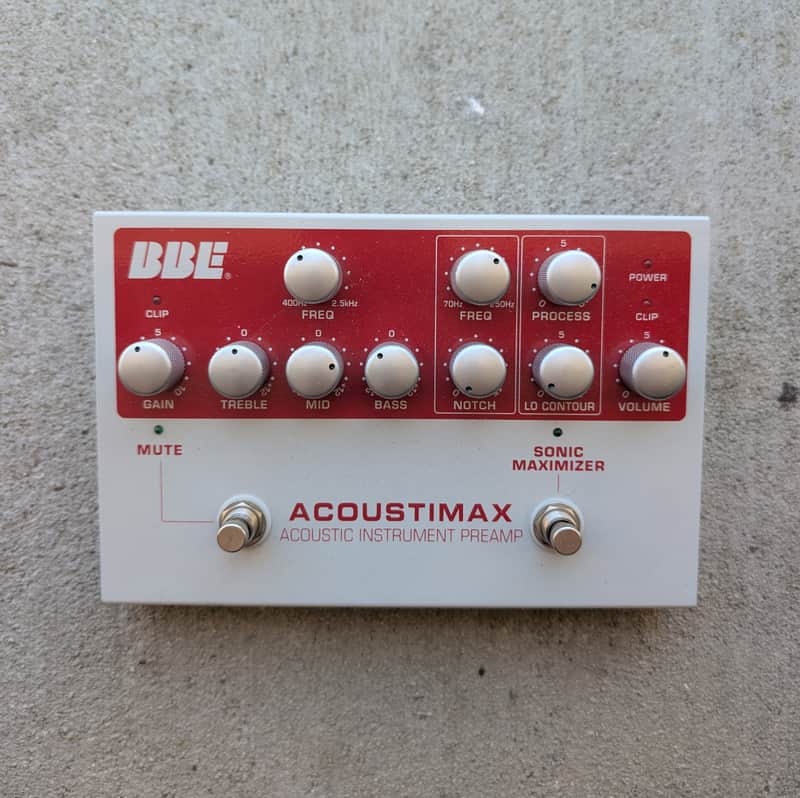

BBE is at the forefront of audio technology. The Acoustimax allows amplified music to sound more natural, and the latest generation of BBE High Definition Sound technology is a vital element to the new Acoustimax acoustic preamp.In the four years since BBE last offered its award-winning 386 acoustic preamp, BBE's design and engineering team studied the serious acoustic player's needs for both recording and sound reinforcement. The result is Acoustimax, a foot-pedal-style (or "stomp-box-style") acoustic preamp which raises the bar for amplified acoustic instrument sound quality. Acoustimax is packed with features including three band, recording-console quality eq with a sweep able mid -range band, low frequency notch filter, phase reversal, ground lift, line level out, dedicated tuner out and TRS effects loop, even a pre/post switch able-balanced DI output with pad. Other features include hard-wire bypass, non-slip rubber bottom and the included 12v power supply.
Specifications
- Frequency Response: 50Hz - 20kHz
- Treble: +/-12dB @ 10kHz
- Mid: +/-12dB @ 400Hz - 2.5k
- HzBass: +/-12dB @ 60Hz
- Notch: 0 to -12dB @ 70Hz - 250kHz
- BBE: Lo Contour +15dB @ 50Hz
- Process: +15dB @ 10kH
- zNoise: Instrument Jack -98dBv (unity gain)
- Line Out: -88dBv (+10dB gain)
- Max Output: +10dBu @ Instrument Jack
- THD: 0.05% at 1kHz
- Impedances: Input 2.2 MEG Ohm
- Tuner Out: 2K Ohm
- Line Out: 1K Ohm
- Instrument Out: 2K Ohm
- XLR Out: 600 Ohm
- Power Requirements: DC inlet +12VAC min. 200ma0dBu = 0.775Vrms
