About this listing

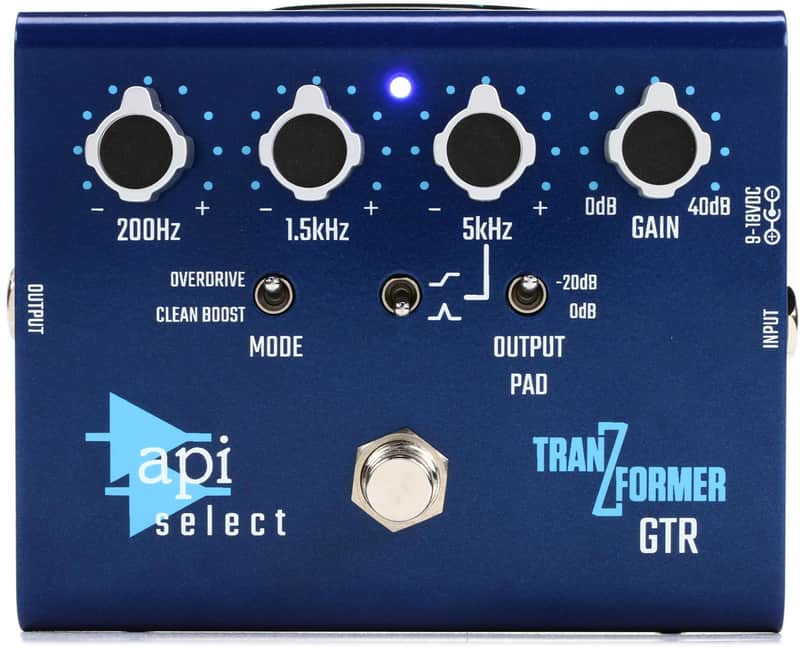

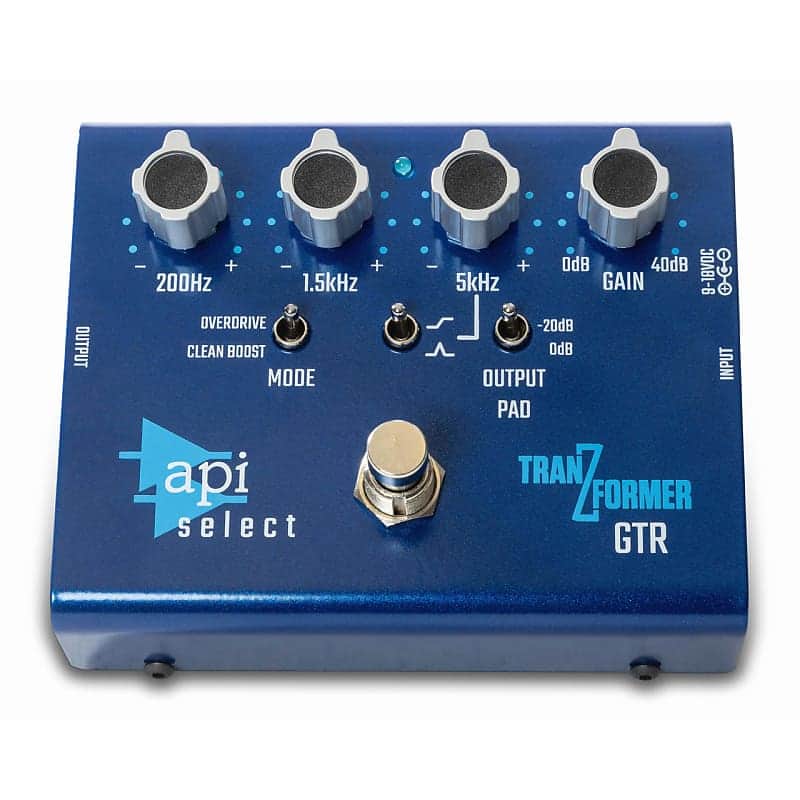

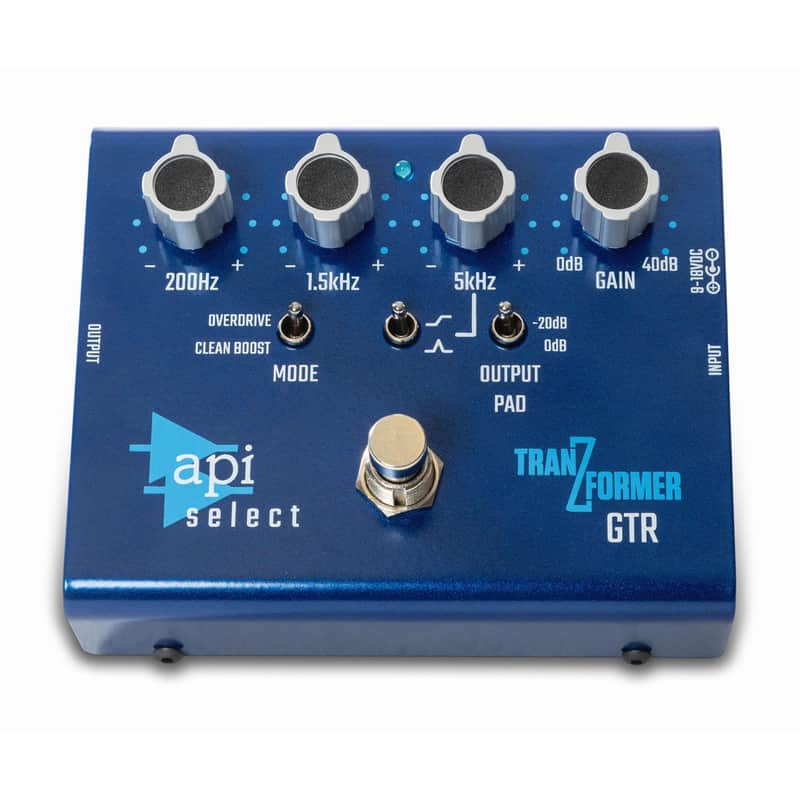

API Select TranZformer GTR Channel Strip PedalFeaturesProprietary API 2510 OpAmpSignature API output transformer3-band EQ each with +/-15 dB of gainOpAmp overdrive circuit40 dB of gain-20 dB output padBuffered bypassThe API Select TranZformer® GTR incorporates API's legendary EQ circuit into a versatile and compact guitar effects pedal. Designed to easily fit into your pedal board and engineered to run on standard 9V power supplies, the GTR offers +/- 15dB of gain on 3 specific frequencies. Additionally, the gain stage can be switched from Clean Boost to Overdrive mode to drive the input OpAmp and add even more tones to your arsenal. Other features include a buffered bypass, -20dB output pad, selectable peak/shelf for upper frequency range, transformer output, and of course the classic API sound.SpecificationsInput connection:1/4" Hi-Z unbalanced instrument inputInput Impedance:1MΩBypass:Yes, buffered, 0dBOutput connections:1/4" Hi-Z unbalanced outputOutput Impedance:Hi-Z output: Less than 1kΩInput Gain Control:0dB - 40dB, VariableOutput Pad:0dB to -20dB, SwitchedMaximum output level before clipping:+15dBu (9VDC) +22dBu (18VDC)Frequency Response:+0dB, -1dB, 20-20kHz (tone controls at center detent)Tone Control:200Hz & 1500Hz Peaking, 5kHz Shelving/Peaking (w/switch), continuously-variable boost/cut, +/-15dB range. API 2510 amplifier overdrive (Switched) placed before tone controls. Clean boost amplifies the signal with no added distortion.Power Supply:9-18VDC @ 100mASize:4.6" x 3.8" x 3"Size (Boxed for Shipping):6" x 4.5" x 4.5"Actual Weight:1.5 lbs.Shipping Weight:2 lbs.
Price$280.25
Free Shipping
30-Day Return Policy
Enjoy peace of mind with your new gear
Free Shipping
from Athens, GA
