API Select TranZformer CMP Compressor Pedal
Feature
Proprietary API 2510 OpAmp
Signature API output transformer
Adjustable attack and release times
Wet/dry blend control
Selectable feedback/feedforward compressor styles
Buffered bypass

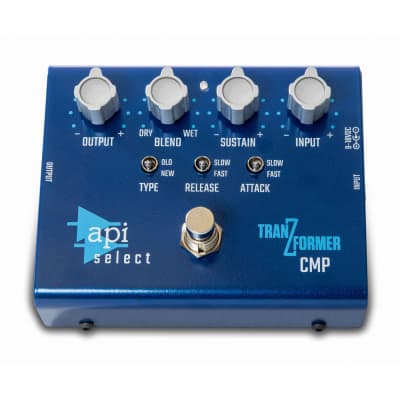

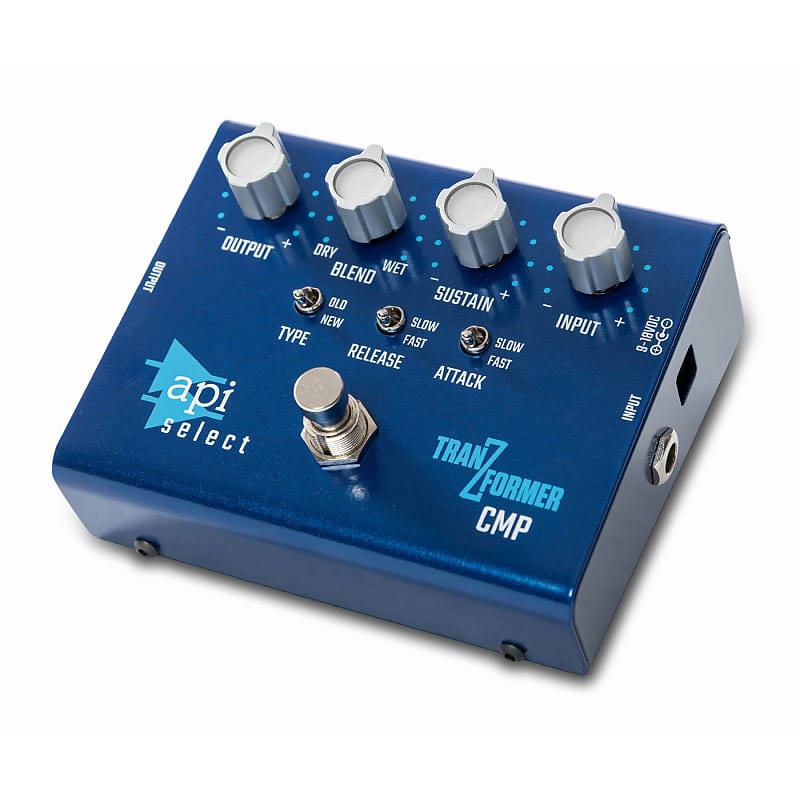

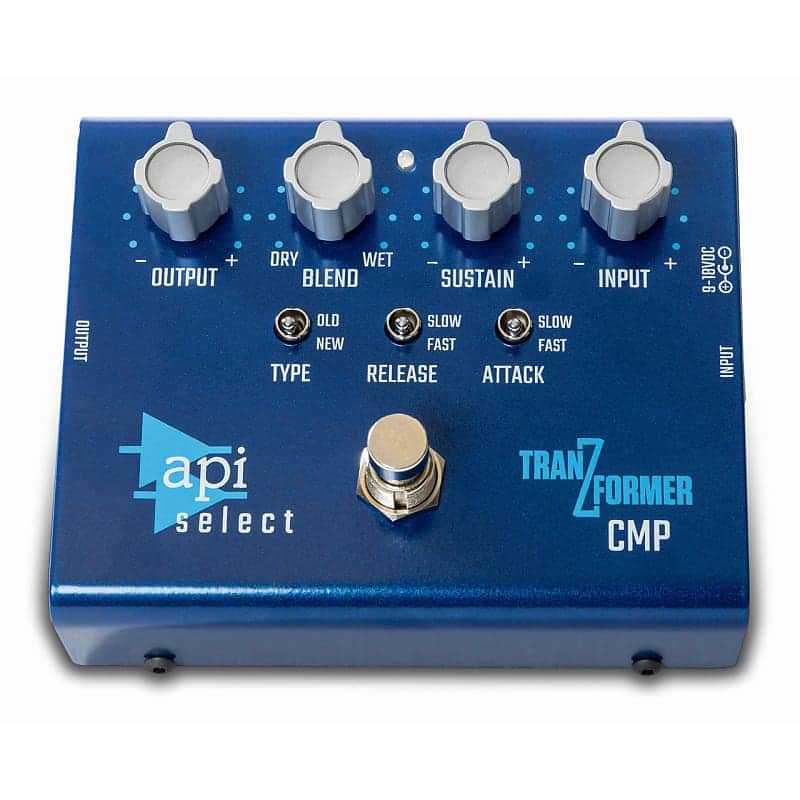

The API Select TranZformer® CMP incorporates API's legendary VCA-type compressor circuit into a versatile and compact guitar effects pedal. Designed to easily fit into your pedal board and engineered to run off standard 9V power supplies, the CMP gives you classic studio-quality compression right at your feet. Other features include a buffered bypass in/out footswitch, adjustable attack and release times, wet/dry blend control, selectable "feedback" and "feedforward" compressor styles, transformer output, and of course the classic API sound.
Specifications
Input connection:
1/4" Hi-Z unbalanced instrument input
Input Impedance:
1MΩ
Bypass:
Yes, buffered, 0dB
Output connections:
1/4" Hi-Z unbalanced output
Output Impedance:
Hi-Z output: Less than 1kΩ
Input Gain Control:
9dB - 30dB, Variable
Output Level Control:
-inf. to 0dB, Variable
Maximum output level before clipping:
+15dBu (9VDC) +22dBu (18VDC)
Frequency Response:
+0dB, -1dB, 20-20kHz
Compressor:
Ratio (Sustain): Varies from 1:1 to 20:1 depending on compressor control setting.Attack (switched): FAST (1ms) or SLOW (10ms)Release (switched): FAST (300ms) or SLOW (1s)TYPE (switched): New (Feed-forward), OLD (Feed-back)
Power Supply:
9-18VDC @ 100mA
Size:
4.6" x 3.8" x 3"
Size (Boxed for Shipping):
6" x 4.5" x 4.5"
Actual Weight:
1.5 lbs.
Shipping Weight:
2 lbs.
