About this listing

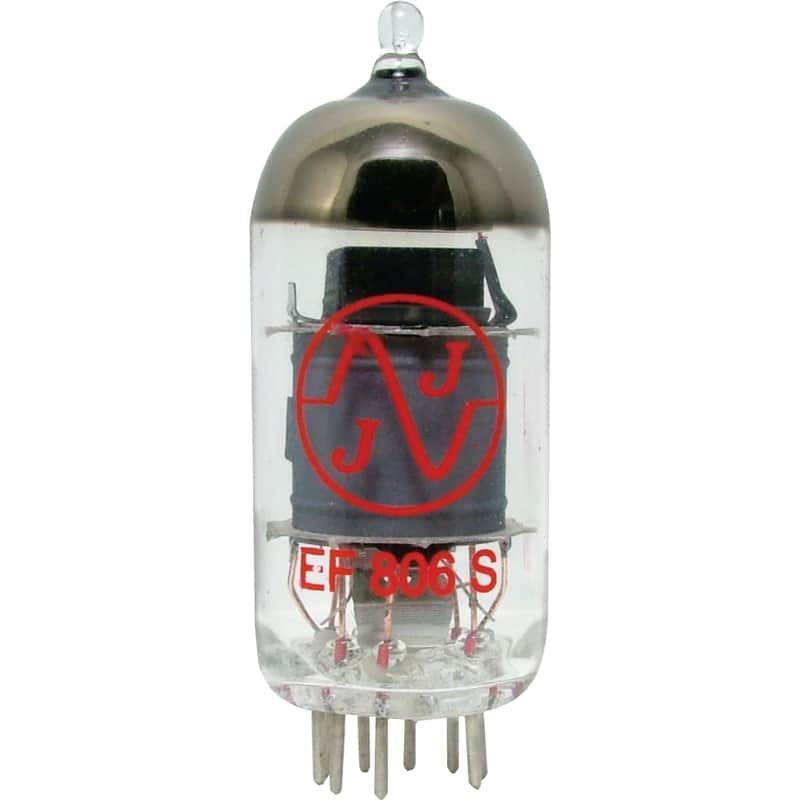

The JJ Electronic EF806S is a high quality reproduction of the classic EF86. This pentode features a robust construction with the internal shielding used in the original tubes. The JJ EF806 can be used in any EF86 circuit including microphones and amplifiers.
Product MeasurementsItem Diameter: 22 mmItem Height: 57.6 mmBody Height: 51.2 mmFilament Voltage (Uf): 6.3 VFilament Current (If): 200 mAPlate Voltage (Ua): ≤ 300 V, 250 V typicalPlate Current (Ia): 3.0 mAGrid 1 voltage (Ug1): -2.2 V typicalGrid 2 voltage (Ug2): ≤ 200 V, 140 V typicalGrid 2 current (Ig2): ≤ 0.6 mATransconductance (S): 2.2 mA/VInternal Resistance (Ri): 2.5 MΩPlate Dissipation (Wa): ≤ 1 WGrid 2 dissipation (Wg2): 0.2 WGrid capacitance (cg1): 3.8 pFPlate Capacitance (ca): 5.1 pF
