Hammond Transformer Set - For Fender 5e3 Deluxe

These items are new, never used.

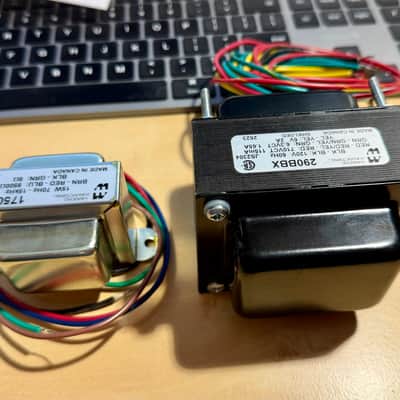

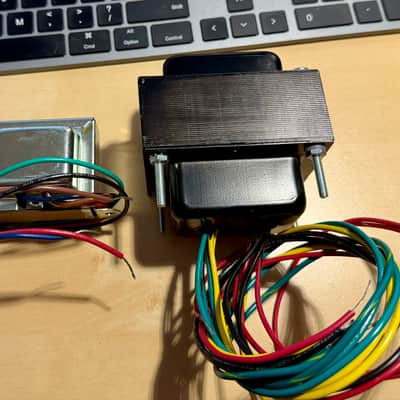

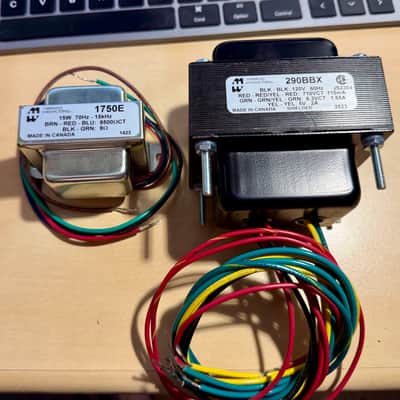

The Hammond 290BBX and Hammond 1750E are popular replacement transformers heavily utilized for repairing or building vintage-style 15-watt 5E3 Fender Tweed Deluxe amplifiers. The transformers pair well together for specific amplifier characteristics:

Hammond 290BBX (Power Transformer)

• Design Purpose: Serves as a power supply upgrade or replacement intended to match original vintage specifications.
• Voltage Rating: Features primary inputs for standard 120V with secondary outputs of 710V center-tapped @ 115 mA, 6.3V @ 1.65A, and 5V @ 2A.
• Tone & Headroom: It is known to deliver a slightly higher B+ voltage compared to other models. Itcan yield increased punch, tighter bass, and different power tube "sag" characteristics.

Hammond 1750E (Output Transformer)

• Design Purpose: Acts as the output transformer that connects the amplifier's power tubes to the speaker.
• Specifications: This 15-watt unit features an 8.5 kΩ primary impedance and is configured for an 8 Ω output.
• Vintage Authenticity: Built with paper winding construction to match vintage factory units, yielding a frequency response of 70 Hz - 10 KHz.
