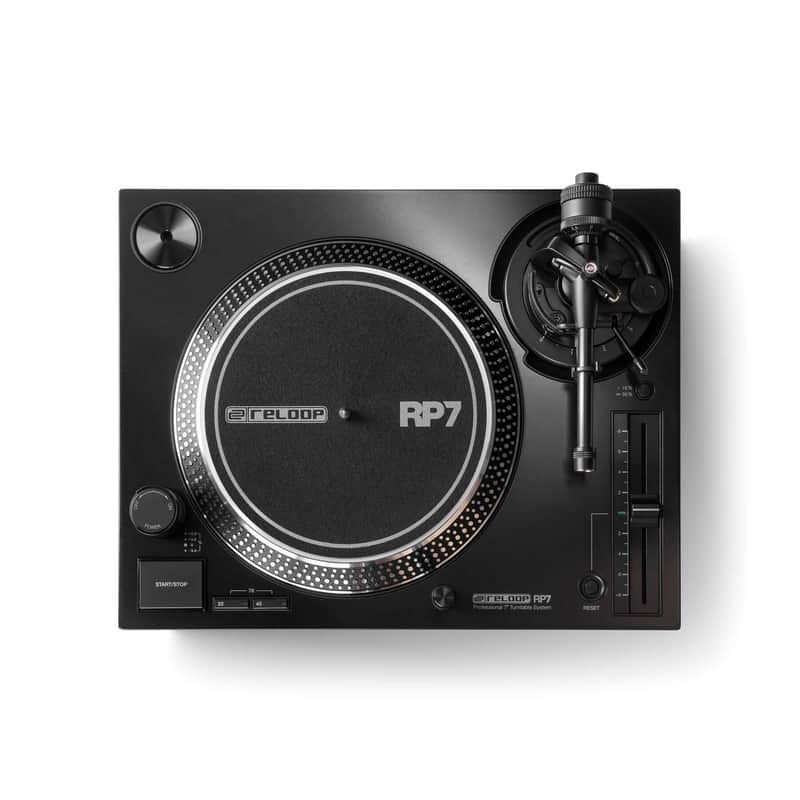

Reloop RP-7 Professional compact 7'' Direct-Drive DJ Turntable

Features

• Industry-first, series-manufactured, professional 7'' direct-drive DJ turntable system
• Quartz-controlled 7'' turntable with high-torque direct-drive motor
• Exclusively developed for the 45s DJ and vinyl enthusiast scene
• Newly developed brushless DC motor with 2.5 kg/cm torque
• Powerful torque for reliable vinyl cueing and advanced scratching techniques
• Solid construction with a refined chassis and superior tonearm design
• Precision-machined, die-cast aluminium platter
• Finely tuned motor characteristics to minimise wow and flutter
• Height-adjustable VTA tonearm base from the best-selling RP-7000/8000 series
• Straight copper tonearm with internal rubber damping for superior vinyl tracking and minimal resonance
• Statically-balanced, straight tonearm system with hydraulic lift, eliminating the need for anti-skating
• Universal cartridge system connection (SME, headshell cartridges recommended)
• Precise motor control with three speeds (33 1/3, 45 and 78 RPM)
• Clickless tempo fader and adjustable tempo range supporting +/-8 %, +/-16 % or +/-35 %
• Pitch reset toggle button and clearly indicated tempo scale
• Recessed connection terminal for a flush setup
• Gold-plated phono and line output
• Newly developed internal switching power supply to reduce unwanted interference
• Aluminium vinyl puck adapter with recessed storage slot
• Strobe light indicator for all turntable speed settings
• IEC connection with detachable mains and RCA cables
• Detachable and freely rotatable LED needle illuminator in unibody aluminium design
• Robust construction and high-quality finish in deep black metallic
• Incl. turntable platter, vinyl puck, slipmat, slip sheet, LED needle light, counterweight, phono RCA cable with grounding, mains cable and instruction manual, (headshell and cartridge sold separately)

Technical Data

Turntable:

• Type: 3-speed fully manual
• Drive: Direct drive
• Motor: 8-pole, 3-phase, high-torque brushless DC motor
• Speeds: 33 ⅓, 45, 78 RPM
• Pitch: ±8, 16, 35%
• Starting Torque: 2.5 kgf/cm (starting at 78 rpm)
• Start-Up Time: < 1 sec.
• Brake System: Electronic brake

Platter:

• 215 mm dia. die-cast aluminium

Tonarm:

• Type: Static balanced straight-shaped tonearm
• Overhang: 0 mm
• Offset Angle: 9,5°
• VTA setting range: 0 - 6 mm
• Effective Tonearm Length: 164.5 mm
• Wow and Flutter: Less than 0.15% WTD at 3 KHz RMS
• S/N Ratio: More than 75 dB (A-w./20 KHz LPF)
• Applicable Cartridge Weight: 15 ~ 20 g (including headshell)

Connections:

• 1x Phono/Line Out (gold-plated), 1x GND earth connection

General:

• Power Input: AC 100-240 V, 50/60 Hz
• Power Consumption: 3 W
• Dimensions: 350(W) x 270(D) x 139(H) mm
• Weight: 5.7 kg
• Incl. turntable platter, vinyl puck, slipmat, slip sheet, LED needle light, counterweight, phono RCA cable with grounding, mains cable and instruction manual, (headshell and cartridge sold separately)
