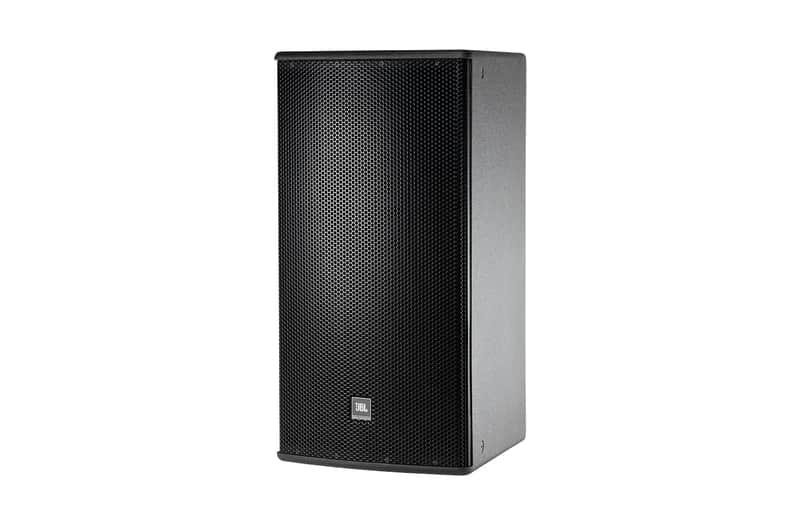

JBL AM5215/66 2-Way Loudspeaker System with 1 x 15 LF

JBL AM5215/66 2-Way Loudspeaker System with 1 x 15 LF

The AM5215/66 commands any venue with a 15-inch woofer delivering deep, punchy low-end response while the compression driver handles crisp, articulate highs with exceptional detail and projection. This professional-grade sound reinforcement system pairs robust construction with proven JBL engineering to provide reliable, consistent results across live rock, hip-hop, jazz, spoken word, and installed applications. The heavily braced multiply birch enclosure and switchable bi-amp/passive configuration give you flexibility in deployment while maintaining the presence and clarity expected in demanding environments.

Audio Performance

Maximum output reaches 130 dB-SPL peak in passive mode with the biamp configuration pushing 131 dB continuous from the LF driver and 136 dB peak from the HF driver, ensuring full-room coverage without compromise. The 2 kHz passive crossover frequency and 60° x 60° rotatable waveguide deliver smooth integration between drivers and controlled dispersion, while 98 dB sensitivity in passive mode means the system responds efficiently across a wide range of amplifier pairings.

Design & Build

The enclosure measures 30.8" × 16.6" × 19.85" and weighs 55 lbs, balancing substantial acoustic mass with practical portability for mobile and installed rigs. Internal bracing and the DuraFlex™ finish on multiply birch construction resist environmental stress while the dual voice coil, dual magnetic gap 265H-1 380 mm (15") LF driver and 2408H-1 compression driver with 38 mm voice coil and 1.5" exit are built for extended touring and high-traffic venues.

Key Features

• Frequency Response: 35 Hz – 20 kHz (-10 dB); 41 Hz – 20 kHz (±3 dB)
• Coverage Pattern: 60° × 60° rotatable waveguide
• Bi-amp/Passive switchable crossover with 2 kHz passive crossover frequency
• 265H-1 380 mm (15") dual voice coil, dual magnetic gap low frequency driver
• 2408H-1 compression driver with 38 mm (1.5") voice coil and 1.5" exit
• Power Rating (AES): LF 500 W (2000 W peak, 2 hrs) / 350 W (1400 W peak, 100 hrs); HF 40 W (160 W peak, 2 hrs)
• Maximum SPL: Bi-amp 125 dB continuous LF / 130 dB continuous HF; Passive 124 dB continuous (130 dB peak)
• System Sensitivity: 98 dB SPL at 1W @ 1m (passive mode)
• NL4 Neutrik speakON and covered barrier strip terminal connectors
• Dimensions: 30.8" × 16.6" × 19.85" (783 × 422 × 504 mm)
• Weight: 55 lbs (25 kg)
• Multiply birch enclosure with DuraFlex™ finish and heavy internal bracing

The AM5215/66 combines high output capability, flexible amplification options, and durable construction to serve as a dependable foundation for any professional sound system.
