Feature List

• 100 guitar effects and amp models, including modulation, equalization, delay, and reverb
• Up to 6 effects can be used simultaneously, in any order
• 50 memory locations for the storage of user-created patches
• 30 preset patches
• Patch cycling
• Onboard chromatic tuner supports all standard guitar tunings, including open and drop tunings
• Tap Tempo for synchronization of delay times or modulation rates
• Auto Save function for automatic saving of all patch parameters
• ¼" input jack (both active and passive instruments supported)

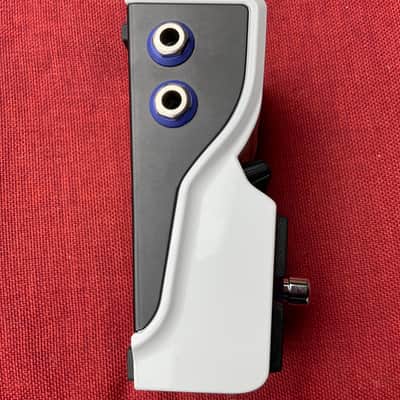

• Dual ¼" output jacks
• Backlit LCD with contrast control for easy viewing in low-light environments
• USB port for power and firmware updates
• Lightweight and small enough to fit in your gig bag
• Easily integrated into any existing pedalboard
• Runs on 2 AA batteries, with alkaline battery life of up to 7 hours
• Optional AC adapter

SpecsSpecificationsNUMBER OF EFFECTS:100 (+72 additional effects from MS-50G Effect Manager)NUMBER OF SIMULTANEOUS EFFECTS:6NUMBER OF PATCH MEMORIES:50NUMBER OF PATCH PRESETS:30SAMPLING FREQUENCY:44.1 kHzA/D CONVERSION:24-bit, 128x oversamplingD/A CONVERSION:24-bit, 128x oversamplingSIGNAL PROCESSING:32-bit floating point and 32-bit fixed pointFREQUENCY RESPONSE:20 Hz - 20 kHz +1 dB, -3 dB (into 10 kΩ load)DISPLAY:LCDINPUT:1 x 1/4" monaural phone jackRATED INPUT LEVEL:-20 dBm*INPUT IMPEDANCE:1MΩOUTPUT:2 x 1/4" monaural phone jackMAXIMUM OUTPUT LEVEL:+5 dBm (output impedance load of 10 kΩ or more)BATTERY TYPE:AA size (LR6) battery x 2AC ADAPTER (OPTIONAL):DC 9V center-negative, 500 mA (Zoom AD-16)DIMENSIONS:130.3 (D) x 77.5 (W) x 58.5 (H) mmWEIGHT:350g (without batteries)Note: 0 dBm = 0.775 Vrms
