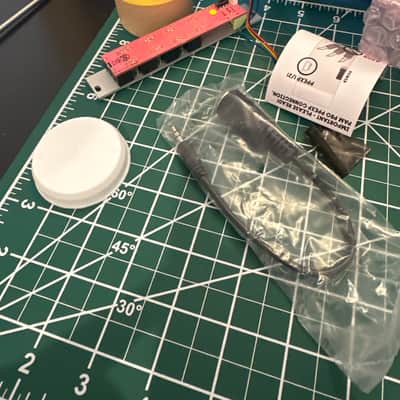

ALM Busy Circuits PPEXP1 PPW Expander for their Pamela’s Pro Workout. Comes in original case with jumper cable and TRS midi dongle.

Only ever used in my smoke free studio.

From ALM Busy Circuits:

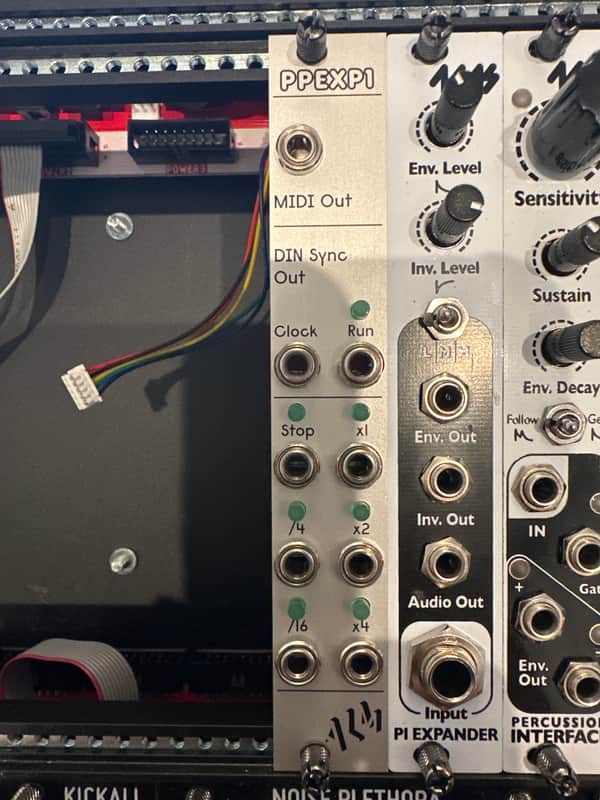

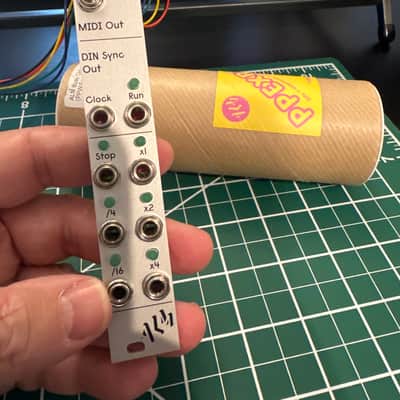

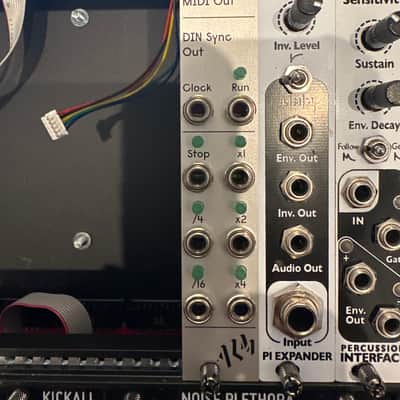

PPEXP1 is an expander module for Pamela’s PRO Workout that offers additional outputs.

Extend Pam as a master to clock external gear with super solid dedicated MIDI & Din Sync clock outputs. The Din Sync clock (x24) and Run outputs can also be patched into a 2nd Pam to easily sync it.

Use the extra fixed clocked gate outputs to free up Pam’s main outputs for unique sequencing or complex modulation duties.

Connects directly to and is powered by the ‘MIDI-EX’ expander header on rear of Pamela’s PRO Workout.

Only a single output expander is supported at any time but either can be used alongside an AXON-1 CV input expander.

A MIDI adapter cable and a Din Sync adapter cable are both available for connecting to 5 pin ‘Din’ type connectors. The PPEXP 1 includes a MIDI Din adapter cable.

Feature List

• 3.5mm jack socketed TRS MIDI Clock output.
• Buffered x24 Clock & Run (Din Sync) outputs.
• TRS MIDI selectable between Type A & Type B via switch on module rear.
• 5 extra buffered fixed gate outputs – x1, x2, x4, /4 and /16.
• Dedicated trigger on stop output for resetting sequencers like the ASQ-1.
• Skiff friendly.
• Made in England.
