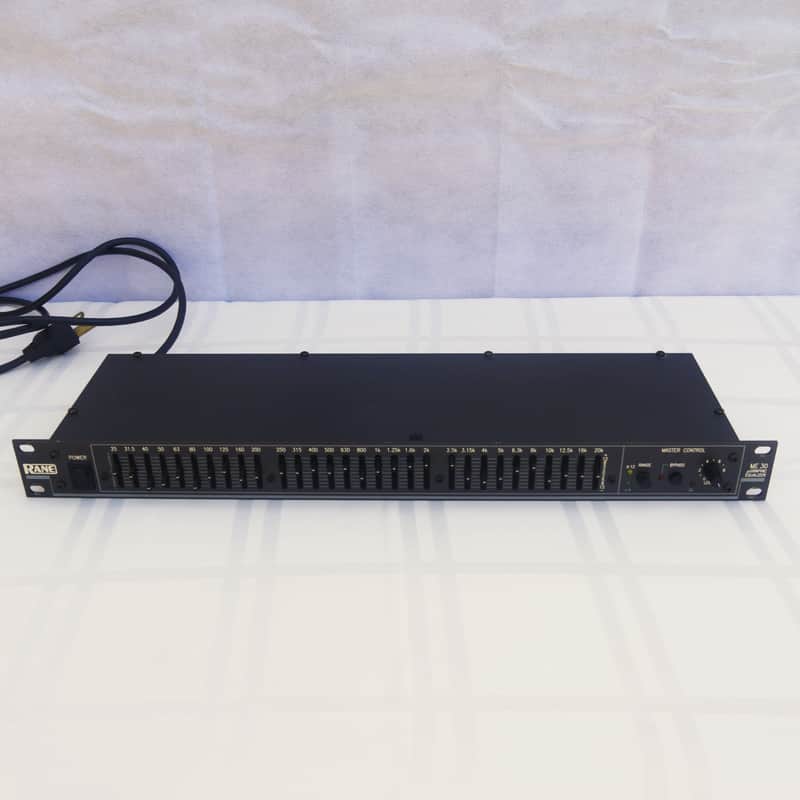

Rane ME30 30-Band Graphic Equalizer EQ
Our users rate Reverb
This is an extremely accurate, professional quality equalizer in excellent condition.
Specs from the user manual ():
- Constant-Q Bandpass Filters: 1/3 octave bandwidths on precise ISO centers, 25-20 kHz
- Boost/Cut Range: switchable ±6 dB or ±l2 dB
- Built-in Low Cut Filter: -3 dB at 20 Hz (18 dB per octave)
- Built-in Ultrasonic Filter: -3 dB at 60 kHz (6 dB per octave)
- Overall Gain Range: Off to +6 dB (minimum)
- Frequency Response: 20 Hz to 60 kHz, +0/-3 dB
- Signal To Noise Ratios: Unweighted, 20 kHz bandwidth
- Boost/cut Centered, Unity Gain: 108 dB below +20 dBu
- Boost/cut Centered, Maximum Gain: 107 dB below +20 dBu
- THD + Noise: Less than .009%, 20 Hz to 20 kHz, @ +4 dBu (1.23V) output
- Intermodulation Distortion (SMPTE): less than .005% @ +4 dBu output
- Input Impedance: 20,000 ohms
- Output Impedance: 100 ohms
- Maximum Input Level: +21 dBu (9 Volts)
- Maximum Output Level: +21 dBu (9 Volts)
- Dimensions: 1.75" H x 19" W x 5.25" rack depth, all steel chassis
- Weight: 5 Ib. net
- Note: 0 dBu = .775 Volts
