VU Meter Pedal – Signal Level Monitor – Pedalboard Utility

Order today, ships typically within 1 business day.

Handmade in the U.S.A. with global materials.

A simple, useful signal monitor for your pedalboard.

Every guitarist has experienced the moment:

You turn everything on…

Hit a note…

Silence.

With this pedal in your chain, a quick glance tells you immediately whether signal is present at that point in your rig.

Suggested placement:

Right after your instrument – monitor your raw guitar signal

End of your effects chain – confirm signal leaving your board (my personal favorite use)

Adjustable Sensitivity: Inside the pedal is a 25 turn trim potentiometer that allows you to adjust meter sensitivity. Clockwise for lower signal voltage, counter-clockwise for higher signal voltage.

Range: ~30mV - 1.25V pk-pk

If you'd like, I can also tune the meter to a specific mV reference level at the time of purchase — just send a message with your request.

This VU Meter pedal is tuned so 0dB corresponds to roughly a 150mV guitar signal, which works great for a typical dry, non-boosted guitar output. It gives you a quick visual reference of your signal level while playing.

This is not a precision measurement device — it's meant to be a practical, always-on utility pedal that lets you see what your signal is doing in real time with no tonal changes or signal lose.

Build Details:

10M Ohm input impedance.

Compact VU meter pedal format built in a 1590A enclosure (92mm x 38mm x 30mm)

Built on a quality compact PCB from Mas Effects

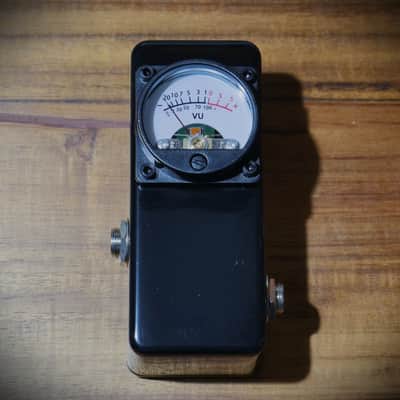

Image is actual pedal for sale. Completed in small batches.

Takes standard 9v 2.1mm center negative power supply. Power supply not included.

If you have a custom request, feel free to reach out.
If you need shipping to country not listed as available, reach out and I'll see if I can update the listing to support your location.

Instagram: bane_audio
