Boss XS-1 Poly Shifter Pitch Shift Pedal | No Limit Guitar Co, Idaho Falls

The Boss XS-1 Poly Shifter is a compact, stage-ready polyphonic pitch-shifting pedal that lets your guitar do the work of three — drop tuning, shimmering octave textures, and wild pitch-shifted layers all from a single stompbox with a straightforward, intuitive layout. A Balance knob blends dry and effected signals, a rotary Shift knob dials in seven semitone steps plus one, two, and three octave jumps, a Detune switch selects upward or downward pitch direction, and a Toggle/Momentary switch chooses between sustained and temporary shifts. An expression pedal input unlocks sweeping, hands-free real-time pitch bends for maximum tonal drama. Behind it all, 24-bit converters with BOSS's proprietary Adaptive Focus method deliver a crisp, clean signal with reduced noise and preserved tone fidelity across the XS-1's full ±3-octave range.

Product Overview

The XS-1's polyphonic pitch-shifting capability is the specification that makes it genuinely useful across a broader range of playing situations than a standard monophonic pitch shifter. Polyphonic processing tracks and shifts chords and complex voicings as well as single notes — meaning the XS-1 can apply drop tuning, capo effects, and octave shifts to full chord strumming without the tracking artifacts and harmonic instability that monophonic circuits produce on multi-note input. For guitarists who want to drop tune for a single song, add an octave layer to chord-based arpeggios, or build shimmering textured layers from rhythm playing, polyphonic processing is the difference between an effect that works musically and one that only works on single-note lines.

The rotary Shift knob covers seven semitone steps and three octave jumps in either direction — a practical range that spans the most commonly used pitch-shifting intervals from a single control. The Detune switch's upward or downward direction selection means any selected interval can be applied either above or below the original pitch, doubling the effective tonal palette without adding additional controls. The Toggle/Momentary switch adds performance flexibility — Toggle mode latches the pitch shift on until the footswitch is pressed again, suitable for sustained effects across a whole section or song, while Momentary mode activates the shift only while the footswitch is held and releases immediately when the foot lifts, enabling controlled, precisely timed pitch effects that complement rather than dominate the playing.

BOSS's Adaptive Focus method (AF) is the same proprietary digital conversion technology used in the larger XS-100 — designed to dramatically improve signal-to-noise ratio at the AD and DA conversion stage, preserving the clarity and detail of the original guitar signal throughout the pitch-shifting process rather than introducing the noise artifacts that can accumulate in lower-resolution digital circuits. The result is pitch-shifted output that sounds clean and accurate whether the shift is a subtle semitone detune or a full three-octave jump. An expression pedal input allows the pitch to be controlled continuously in real time for sweeping pitch bends and dramatic performance effects.

Ideal For

• Guitarists who want polyphonic drop tuning, capo effects, and octave shifting available from a single compact stompbox on any pedalboard
• Players who want Toggle and Momentary switching options for both sustained and precisely timed pitch effects during live performance
• Guitarists who want real-time pitch sweep via expression pedal for dramatic, hands-free performance effects
• Players who need polyphonic pitch tracking that works cleanly on chords and rhythm playing, not just single-note lines
• Guitarists in Idaho Falls looking for a compact, affordable polyphonic pitch shifter with BOSS's Adaptive Focus method for clean, noise-reduced signal quality

Key Features

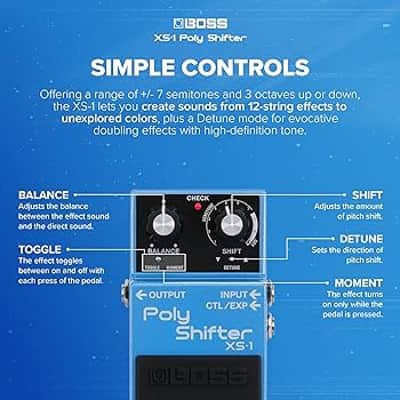

Polyphonic Pitch Shifting
Tracks and shifts chords and complex voicings alongside single notes — producing clean, musically usable pitch-shifted output from full chord strumming and arpeggios without the tracking artifacts of monophonic pitch shifters.

Rotary Shift Knob — 7 Semitones and 3 Octave Jumps
A single rotary control dials in seven semitone steps plus one, two, and three octave jumps — a practical range covering the most commonly used pitch-shifting intervals in a compact, immediately accessible layout.

Detune Switch — Up or Down Direction
A simple switch selects whether the selected interval shifts pitch upward or downward, doubling the tonal palette without additional controls — the same semitone or octave shift applied either above or below the original pitch.

Toggle/Momentary Switch
Toggle mode latches the pitch shift on for sustained effects, while Momentary mode activates the shift only while the footswitch is held — giving players precise control over when and how the effect engages during performance.

Expression Pedal Input
Connecting an expression pedal unlocks real-time, hands-free pitch sweep for dramatic bends and sweeping pitch effects during live performance.

24-Bit Adaptive Focus Method Conversion
BOSS's proprietary AF conversion method dramatically improves signal-to-noise ratio at the AD and DA stage, delivering crisp, clean pitch-shifted output with preserved tone fidelity across the full ±3-octave range.

What's Included

• Boss XS-1 Poly Shifter Pitch Shift Pedal
• Free standard shipping

Note: 9V DC power supply, battery, and expression pedal sold separately.

Technical Specifications

Model XS-1

Pedal Type Polyphonic Pitch Shifter

Circuit Type Analog with 24-Bit AF Method Conversion

Pitch Range ±3 Octaves

Shift Steps 7 Semitones + 1, 2, and 3 Octave Jumps

Detune Switch Up or Down Direction

Switching Modes Toggle, Momentary

Balance Control Yes (Dry/Effect Blend)

Expression Input Yes (1/4" Control Jack)

Inputs 1× 1/4"

Outputs 1× 1/4"

Other I/O 1× 1/4" (Control/Expression)

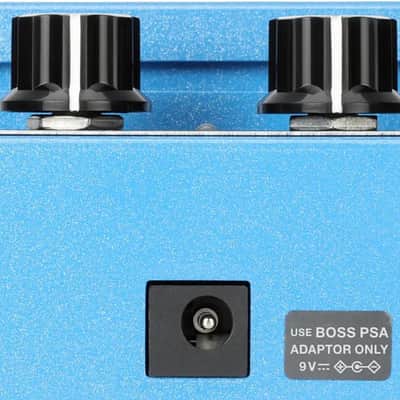

Power Source 9V DC (sold separately)

Battery 1× 9V

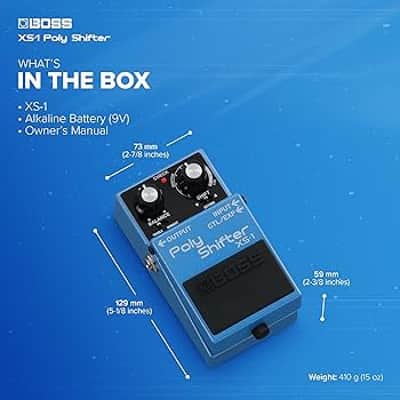

Height 2.37"

Width 2.87"

Depth 5.12"

Weight 0.9 lbs.

Manufacturer Part # XS-1

Get Your Hands on This Pitch Shift Pedal Today

The Boss XS-1 Poly Shifter is available now at No Limit Guitar Co in Idaho Falls. Stop in to try the Toggle and Momentary modes and hear the polyphonic pitch tracking in person, or reach out online to order yours — one guitar, endless tonal possibilities.
