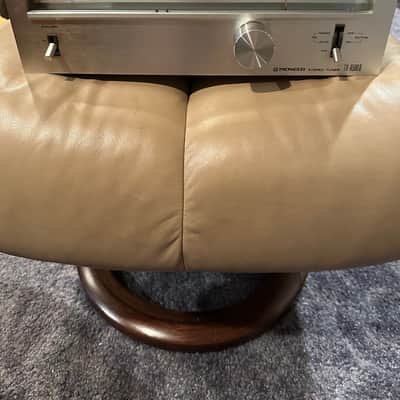

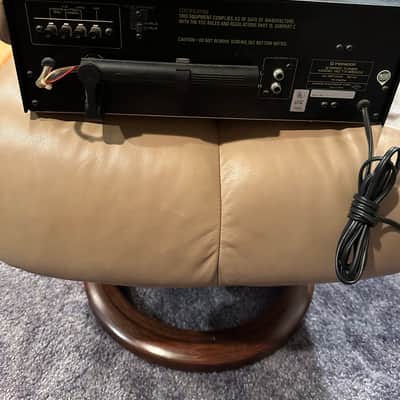

Vintage Pioneer TX-6500 II Stereo AM/FM Tuner
Our users rate Reverb
OVERVIEW
The Pioneer TX-6500 II is a solid-state FM/AM stereo tuner produced from 1976 to 1978. It delivers stereo reception on FM and standard AM broadcast bands with an analogue tuning scale and a distinctive illuminated display. Designed to pair with the Pioneer SA-6500 II integrated amplifier, It features a solid-state signal path using one FET, three ICs, seven transistors, and nine diodes. The unit measures 380 x 139 x 322 mm and weighs 5.6 kg.
SPECIFICATIONSTypeMono/Stereo TunerTuning BandsFM, AMSignal to Noise Ratio68dB (FM), 50dB (AM)Frequency Response20Hz to 15kHz (FM)Output650mV (FM), 150mV (AM)Dimensions (W x H x D)380 x 139 x 322 mmWeight5.6 kgDESIGN

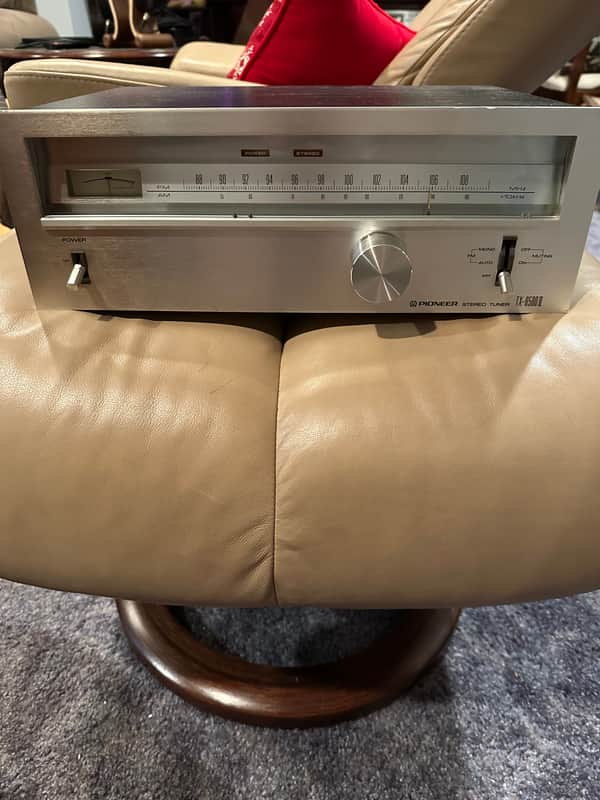

The TX-6500 II features a beautifully illuminated analogue tuner scale. The stereo indicator uses an HA1196 MPX chip, where pin 9 supplies a ground connection through a resistor to activate the 6V indicator bulb. The bulb receives a constant 12V in FM mode, which can lead to premature failure. The MPX chip output switches low when a stereo signal is detected. A faulty internal switch-to-ground transistor in the HA1196 can prevent the stereo indicator from functioning correctly.
This unit been cleaned and is functioning properly.
Reverb Buyer Protection
Reverb has your back if your item is lost, damaged, or doesn't match its description. Simply report any issues within 7 days and we'll help you get a full refund.Learn more about Reverb Buyer Protection.
| Listed | 6 hours ago |
|---|---|
| Condition | Very Good (Used) Very Good items may show a few slight marks or scratches but are fully functional and in overall great shape.Learn more |
| Brand | |
| Model |
|
| Finish |
|
| Categories | |
| Year |
|
| Made In |
|
