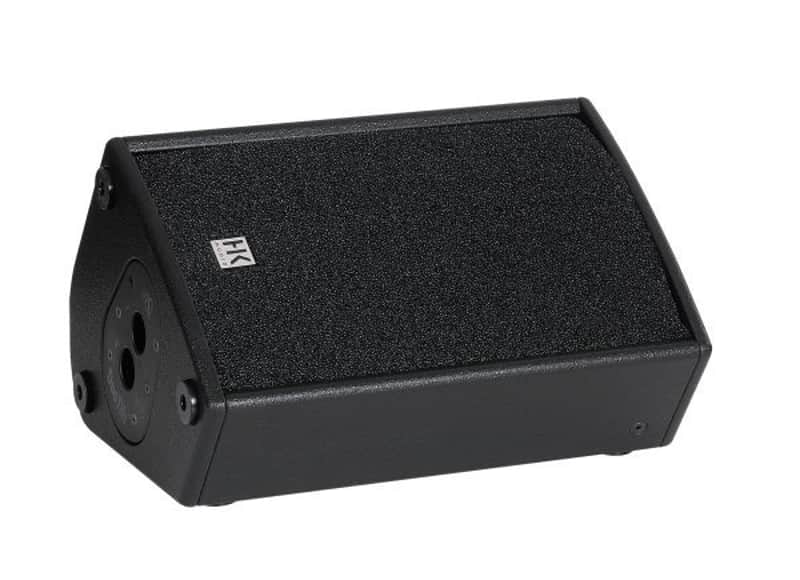

HK PREM-PRO-10-X 600 Watt 8" Passive Monitor

A real all-rounder that is equally talented as a satellite, compact 10″ full-range speaker or as a “low profile” stage monitor (30°).

The balanced frequency response ensures low feedback and optimum speech intelligibility.

Specifications ConceptPassive 2-way mid/high unit Cabinet principleBass reflex Power handling RMS300 W Power handling program600 W Power handling peak1200 W Nominal impedance18 Ohms Max. SPL peak3126 dB Sensitivity 1 W/1 m499 dB Crossover frequency2.2 kHz Frequency range -6 dB95 Hz - 19 kHz Frequency range -10 dB80 Hz - 19 kHz Dispersion angle -6 dB (horizontal x vertical)90° x 60° Index Index 1)According to EN 60268-5 (minimum value not less than 80% of nominal value) Index 3)1 x unit @ 1 m, 10 % THD, half space Index 4)half space Components Mid/high frequency1 x 10" cone speaker High frequency1 x 1" compression driver CrossoverHigh pass: 12 dB/oct., Low pass: 12 dB/oct. High frequency protection circuitDynamic protective circuit HornConstant directivity horn Connections Input1 x NL4 Speakon Output/parallel output1 x NL4 Speakon Pin assignment1+/- Amping/Presets Lab.gruppenIPX Series, IPD Series Mechanical data Cabinet features/riggingpole mount HK Audio DuoTilt 3°/7°, monitor angle: 30°, 3 x rigging point M8 Carrying handles2 x integrated carrying handle Cabinet materialMDF Cabinet surfaceacrylic enamel ColorJet black (RAL 9005) Front grilleSteel front grille, backed with acoustic foam Weight, metric12.9 kg Weight, imperial28.4 lbs
