Description:

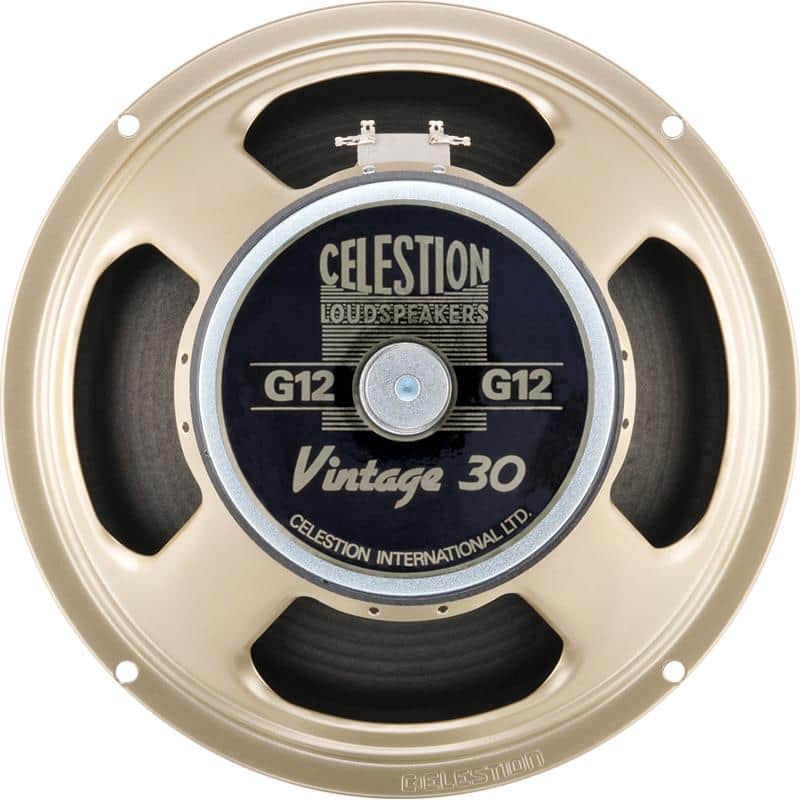

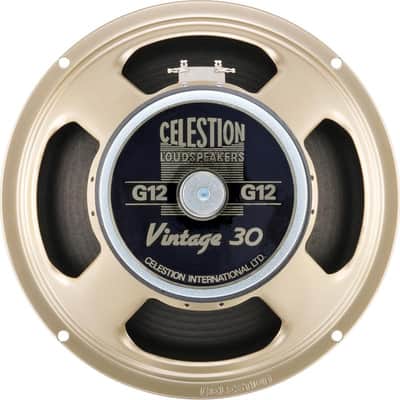

Model: Celestion Vintage 30 8 Ohm Speaker, T3903

Back in 1986 a new breed of hard rock player was on the rise. To meet the demands of the players and their increasingly 'hot-rodded' amplifiers, we set out to develop a modern speaker, capable of handling much more power and overdrive. To achieve this, we coupled our 'H' magnet (the closest in performance to Alnico) with a new cone and voice coil employing contemporary materials.

Our most revealing speaker, the Vintage 30 features enormously detailed and complex overtones, a warm low-end, a famously rich vocal mid-range and a beautifully detailed top-end. Used singly to reveal the complexities in hand- wired boutique amps, or in quartets for a wonderfully intricate vintage 3D crunch, the Vintage 30 sound has been captured on thousands of recordings from a diverse range of notable players including Slash, Steve Stevens and Peter Frampton.

General Specifications:

• Nominal diameter: 12", 305mm
• Power rating: 60Wrms
• Nominal impedance: Available 8ohm or 16ohm
• Sensitivity: 100dB
• Chassis type: Pressed steel
• oice coil diameter: 1.75", 44.5mm
• Voice coil material: Round copper
• Magnet type: Ceramic
• Magnet weight: 50oz, 1.42kg
• Frequency range: 70-5000Hz
• Resonance frequency, Fs: 75Hz
• DC resistance, Re: Available 7.3ohm or 12.9ohm

Mounting Information:

• Cut-out diameter: 11.1", 283mm
• Diameter: 12.2", 309mm
• Magnet structure diameter: 6.1", 156mm
• Mounting slot dimensions: 0.31", 7.9mm Ø
• Mounting slot PCD: 11.7", 297mm
• Number of mounting slots: 4
• Overall depth: 5.3", 135mm
• Unit weight: 10.4lb, 4.7kg
