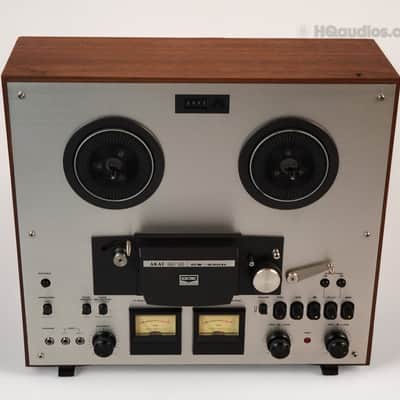

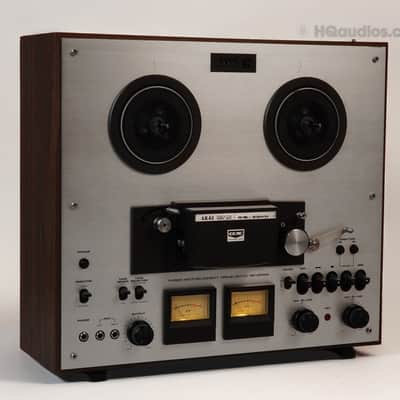

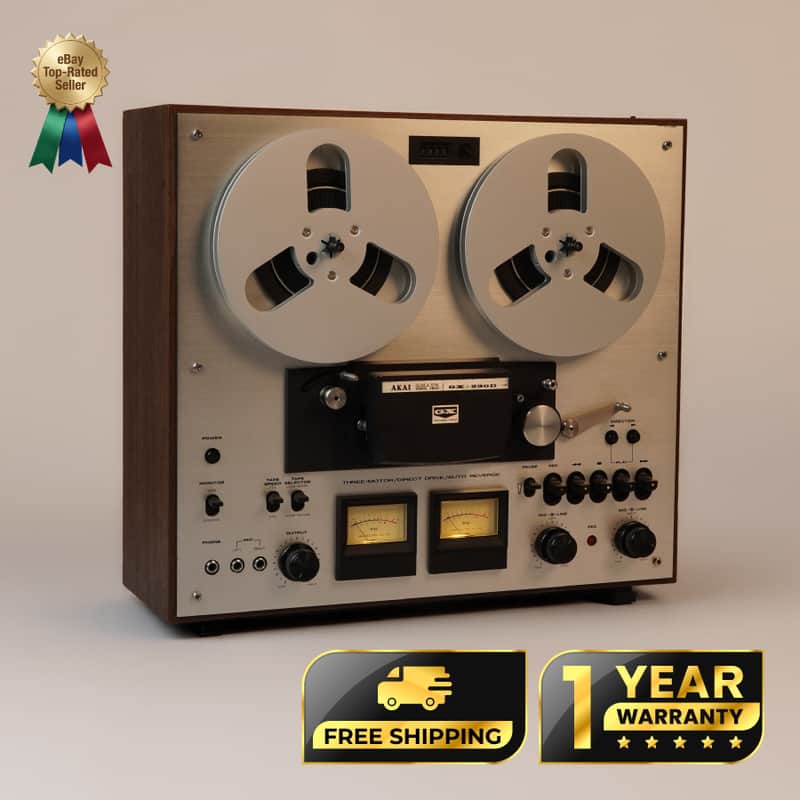

AKAI GX-230D Reel-to-Reel Tape Recorder – Restored – 1-Year Warranty

AKAI GX-230D Head Stereo Tape Deck – Fully Restored & Serviced– 1-Year Warranty

Condition: HUB and METAL REEL won’t be included when shipped. Very Good - Fully tested, serviced and restored – Excellent sound, great working. With over 2,000 fully serviced and certified vintage receivers/speakers delivered. HQaudios stands as one of the most reputable sources for high-quality audio units. If you're browsing on a mobile device, scroll down and tap the Title to view the complete description.

ABOUT:

The AKAI GX-230D features a newly developed AC servo motor designed for direct capstan drive, delivering exceptional speed accuracy and long-term stability. This advanced motor incorporates 114 precision gears on both the rotor and stator sides. A built-in detector coil and magnet on the stator enable an innovative pulse detection system.

Unlike conventional systems that detect every pulse, this design performs detection once every 114 pulses, significantly increasing pulse output efficiency and improving overall rotational stability. Compared to traditional DC servo motors with magnetic braking systems, this AC servo design offers a simpler construction, eliminates excess heat generation, and greatly reduces ripple caused by mechanical eccentricity.

The deck is equipped with dedicated GX (Glass & Crystal Ferrite) heads—one forward/reverse playback head and one combination record/erase head. These GX heads are renowned for their extreme durability, extended lifespan, wider dynamic range, and excellent signal-to-noise performance, ensuring consistent, high-quality analog sound over time.

For reference, the GX-230 model shares the same core engineering and performance features as the GX-230D, but includes an integrated speaker output jack for direct playback convenience.

• Condition: Fully tested, serviced and restored
• MODEL: AKAI GX-230D
• TYPE: Reel-to-Reel Tape Recorder
• PROTECTION PLAN: 1-Year Warranty Included
• FREE SUPPORT: Must be used before requesting return
• SKU: 15TTE0249

Customer Service:

Once your item arrives, if you have questions about how your item functions or proper settings, please CONTACT US.

TRADE-IN PROGRAM:

“If you have any vintage audios (receivers, speakers, cassette, reel to reel...) & want to upgrade with the serviced one, don't hesitate to contact us for the best deal. You only need to pay for the difference between yours & mine....”

Note:

The actual color of the product may sometimes differ slightly from the photos due to lighting conditions, temperature, and the device used. Some angles in the photos may not fully reflect the product’s condition. Please read the description carefully and feel free to message us if you have any questions.

SPECS:

• Track system: auto reverse, 4-track, 2-channel, stereo/monaural system
• Heads: 2 x playback, 1 x record/erase
• Motor: 2 x reel, 1 x capstan
• Reel size: up to 7 inch reel
• Tape speeds: 3 3⁄4  7 1⁄2 ips
• Wow and flutter: 0.07% (7 1⁄2 ips)
• Frequency response: 30Hz to 23kHz (7 1⁄2 ips)
• Signal to Noise Ratio: 60dB
• Total harmonic distortion: 1%
• Input: 70mV (line), 0.3mV (mic)
• Output: 0.775V (line)
• Output power: 7 watts
• Semiconductors: 41 x transistors, 28 x diodes
• Dimensions: 17.32 × 15.55 × 8.07 inches
• Weight: 33.51 lbs


KEY FEATURES:

• Direct-Drive Capstan System: Equipped with Akai’s precision AC servo motor for stable tape speed, low wow & flutter, and smooth long-term operation.
• Genuine GX Glass & Crystal Ferrite Heads: Durable GX record/playback and erase heads designed for extended lifespan, wider dynamic range, and improved signal-to-noise performance.
• 4-Track, 2-Channel Stereo Operation: Supports both stereo and mono recording/playback with professional-grade tape handling capability.
• Multiple Tape Speeds: Selectable speeds (3¾ and 7½ IPS, depending on configuration) for flexible recording quality and archival playback.
• Solid Metal Chassis Construction: Robust build with stable transport mechanics, minimizing vibration and ensuring consistent performance.
• Large Analog VU Meters: Clear, responsive VU meters for accurate level monitoring during recording and playback.
• Classic Vintage Aesthetic: Brushed aluminum faceplate with solid controls and timeless reel-to-reel presence, ideal for collectors and analog enthusiasts.
• Fully Serviced & Tested: Professionally refurbished, calibrated, and verified for reliable long-term use.


REFURBISHED:

This unit has undergone a comprehensive professional refurbishment to ensure stable performance, mechanical precision, and long-term reliability while preserving its original vintage character.

Mechanical Service

• Transport mechanism fully inspected and cleaned
• Capstan, pinch roller, and tape path cleaned and polished
• Moving parts lubricated for smooth, stable tape motion
• Braking system inspected and adjusted for proper reel control
• Auto functions tested for accurate engagement

Motor & Drive System

• Direct drive motor inspected and tested for speed stability
• Speed accuracy verified and adjusted where necessary
• Wow & flutter performance checked under operating conditions

Head & Audio Path

• GX heads carefully cleaned and demagnetized
• Record/playback and erase functions tested
• Signal path inspected for proper gain and low noise performance

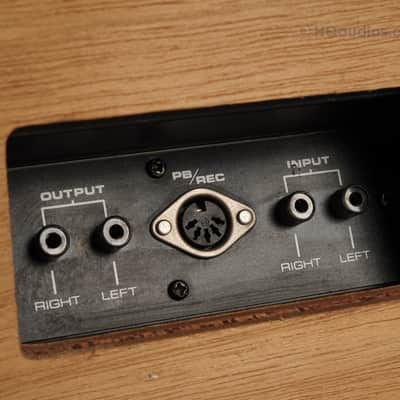

• RCA and input/output connections cleaned and re-tensioned

Electronic Service

• Power supply section inspected for voltage stability
• Aging capacitors replaced where required
• Key transistors checked and replaced if out of tolerance
• All solder joints inspected and reflowed where necessary

Controls & Interface

• Switches, selectors, and potentiometers professionally cleaned and deoxidized
• VU meters tested for accurate response
• All front-panel functions verified for smooth, noise-free operation

Cosmetic Condition

• Exterior panels cleaned and detailed to improve overall presentation
• Front panel, knobs, and trim carefully polished
• We have made every effort to restore the external appearance; however, minor scratches and signs of wear from previous use are still present
• These cosmetic imperfections do not affect performance or functionality

Final Testing & Quality Control

• Extended playback and recording tests performed
• Channel balance, noise floor, and frequency response verified
• Thermal stability checked during continuous operation

RESULT:
After refurbishment, the unit operates smoothly with stable speed control, clean signal reproduction, and reliable transport performance. It retains its original aesthetic character and vintage charm while delivering dependable operation suitable for long-term use and serious listening.

Suggested Pairings:

• Sansui 9090 / 9090DB Receivers – A powerful, warm pairing that complements the analog richness of reel-to-reel playback. Excellent for full-range vintage speaker systems.
• Marantz 2270 / 2325 Receivers – Smooth, musical midrange character that enhances tape warmth and vocal presentation.
• Pioneer SX-950 / SX-980 – Clean, dynamic amplification with strong headroom for accurate tape monitoring.
• JBL L100 Century Speakers – Energetic, lively presentation with tight bass and crisp highs—great for rock, jazz, and classic recordings.
• Tannoy Dual Concentric Speakers – Cohesive imaging and natural tonal balance for more refined analog listening sessions.
• Dedicated Vintage Preamp + Power Amp Setup – For users seeking maximum signal purity and studio-style monitoring performance.

This deck pairs best with classic 1970s solid-state receivers or integrated amplifiers that emphasize warmth, headroom, and musical balance.
