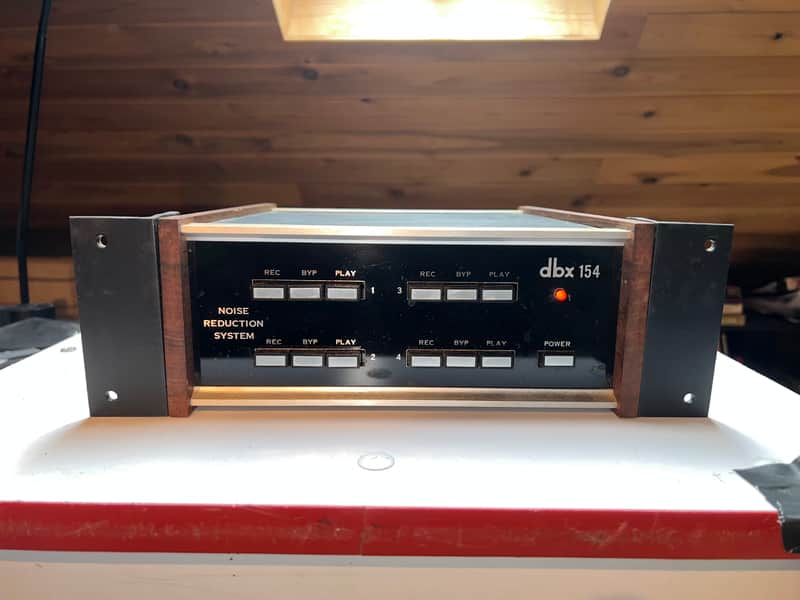

dbx 154 1974

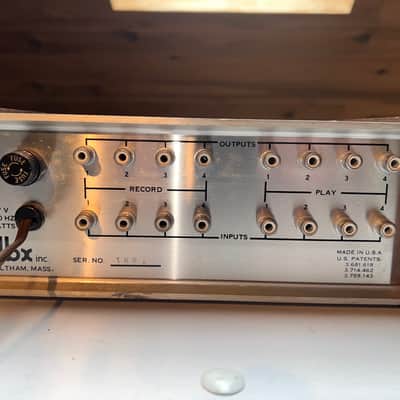

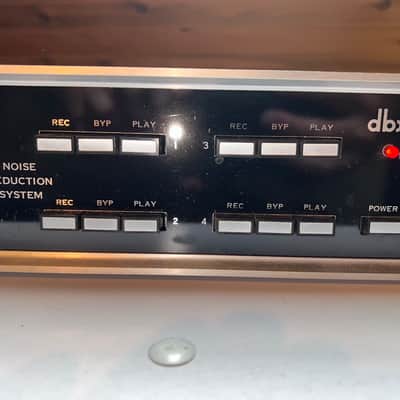

Selling an older DBX Noise Reduction unit. Used to be part of a 4 channel analog recording system utilizing a teac 3340s tape deck. Unfortunately don't have all of the elements anymore to fully test the system, but unit does power on and confirmed signal passes thru all I/O. Sold as-is due to age and inability to fully test things.

Here's some info from the manufacturer:

30 dB noise reduction

10 dB more headroom

Compatible with all dbx professional studio systems

No level matching required for accurate code-decode tracking

Most economical professional quality system

Pairs may be ganged for rack mounting

The dbx 150 series provides professional quality noise reduction for the small recording studio, semi-professional recordist, and serious audiophile. The 150 series is compatible with dbx professional studio systems. Tape recordings encoded on dbx 150 series may be decoded on dbx professional models and vice-versa. This compatibility allows recordings made on the 150 series to be re-mixed or mastered at studios using professional dbx noise reduction systems. The 150 series has models available with two modes of operation for the noise reduction process. Simultaneous code-decode: Each channel has separate code and decode noise reduction electronics which allows monitoring of the decoded signal during recording. Switchable code-decode: Models with this feature have only one noise reduction circuit for each channel. They must be switched to record (encode) and must remain in that mode continuously during the recording process. When playback is desired, the noise reduction electronics must be switched to the playback (decode) mode.
